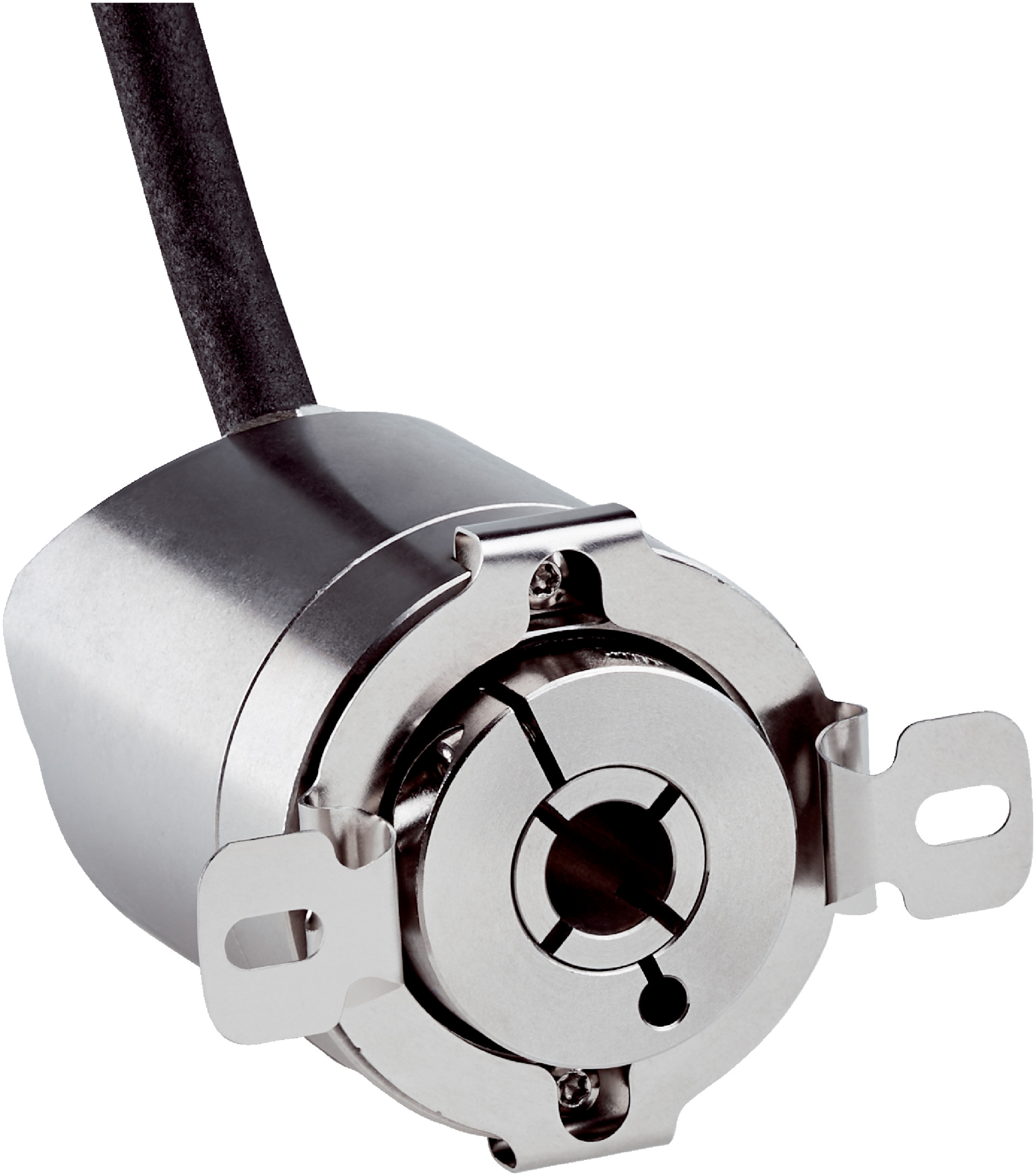

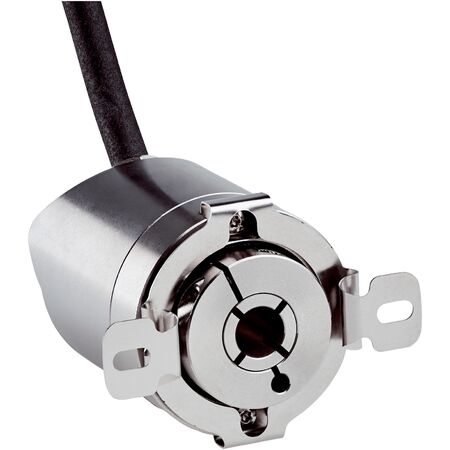

Absolute Encoder AHM36I-BBQJ014x12 | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
The Absolute Encoder AHM36I-BBQJ014x12 offers high precision with 16,384 steps per revolution and IO-Link V1.1 communication, making it ideal for industrial automation and robotics. Built for reliability, it features a robust stainless steel design and operates in extreme temperatures from -40 °C to +85 °C, ensuring accurate position feedback in safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36I-BBQJ014x12 | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1093773
Alternatively Known As: Absolute rotary encoder, IO-Link encoder, stainless steel absolute encoder, industrial position sensor
Technical Specifications
- Max resolution: 16,384 steps per revolution (14 bit) x 4,096 revolutions (12 bit)
- Error limits: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: 4-wire cable, 0.5 m length
- Mechanical design: Blind hollow shaft, 8 mm diameter with front clamp
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP67 and IP69K
- Operating temperature range: -40 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft materials
- IP67 and IP69K rated for protection against dust and water
- Wide operating temperature range from -40 °C to +85 °C
- Low start-up and operating torque (≤ 1 Ncm)
- Advanced diagnostics and status information via LED
- Reverse polarity protection and low power consumption (≤ 1.5 W)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial automation systems to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Machine tool feedback and control
- Safety-related applications requiring reliable encoder data
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption minimizes energy usage
- High reliability reduces downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36I-BBQJ014x12 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring precise position feedback.
