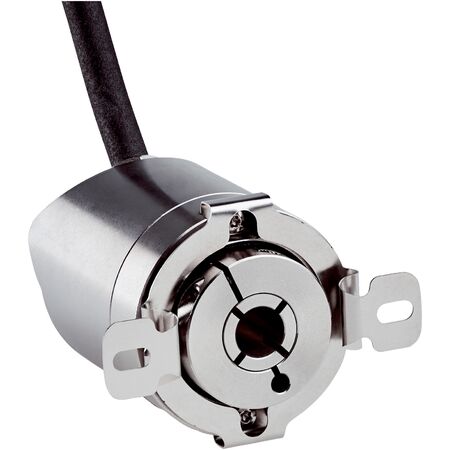

Absolute Encoder AHM36I-BBQZ000S03 | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
The Absolute Encoder AHM36I-BBQZ000S03 offers high precision with 16,384 steps per revolution and 4,096 revolutions, making it ideal for industrial automation and robotics. With an IP67 and IP69K rating, it withstands harsh environments while providing reliable performance. Designed for professionals, this encoder features a fast initialization time and low power consumption, ensuring efficiency in motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36I-BBQZ000S03 | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1115924
Alternatively Known As: Absolute rotary encoder, IO-Link encoder, SICK rotary encoder, high resolution encoder, industrial position sensor
Technical Specifications
- Number of steps per revolution: 16,384 (14 bit)
- Number of revolutions: 4,096 (12 bit)
- Max resolution: 14 bit x 12 bit (16,384 x 4,096)
- Error limits: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: Cable, 4-wire, with male M12 connector, 1.5 m
- Mechanical design: Blind hollow shaft, 8 mm diameter with front clamp
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: -40 °C to +85 °C
- Enclosure rating: IP67 and IP69K
- Bearing lifetime: 2.0 x 10^9 revolutions
- MTTFD: 240 years (EN ISO 13849-1)
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- Advanced firmware including Round Axis Functionality
- High resolution: 16,384 steps per revolution (14 bit) and 4,096 revolutions (12 bit)
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft materials
- IP67 and IP69K rated for harsh environments
- Operating temperature range from -40 °C to +85 °C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High mechanical durability with bearing lifetime of 2.0 x 10^9 revolutions
- Smart sensor capabilities with enhanced sensing and diagnostics
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the IO-Link interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Machine tool feedback and control
- Process automation requiring high resolution and reliability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption reduces energy usage in industrial applications
- High reliability minimizes downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36I-BBQZ000S03 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
