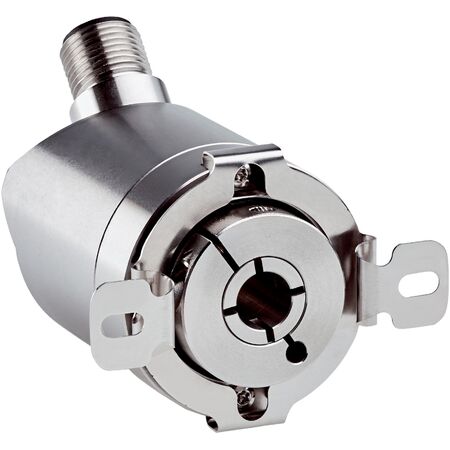

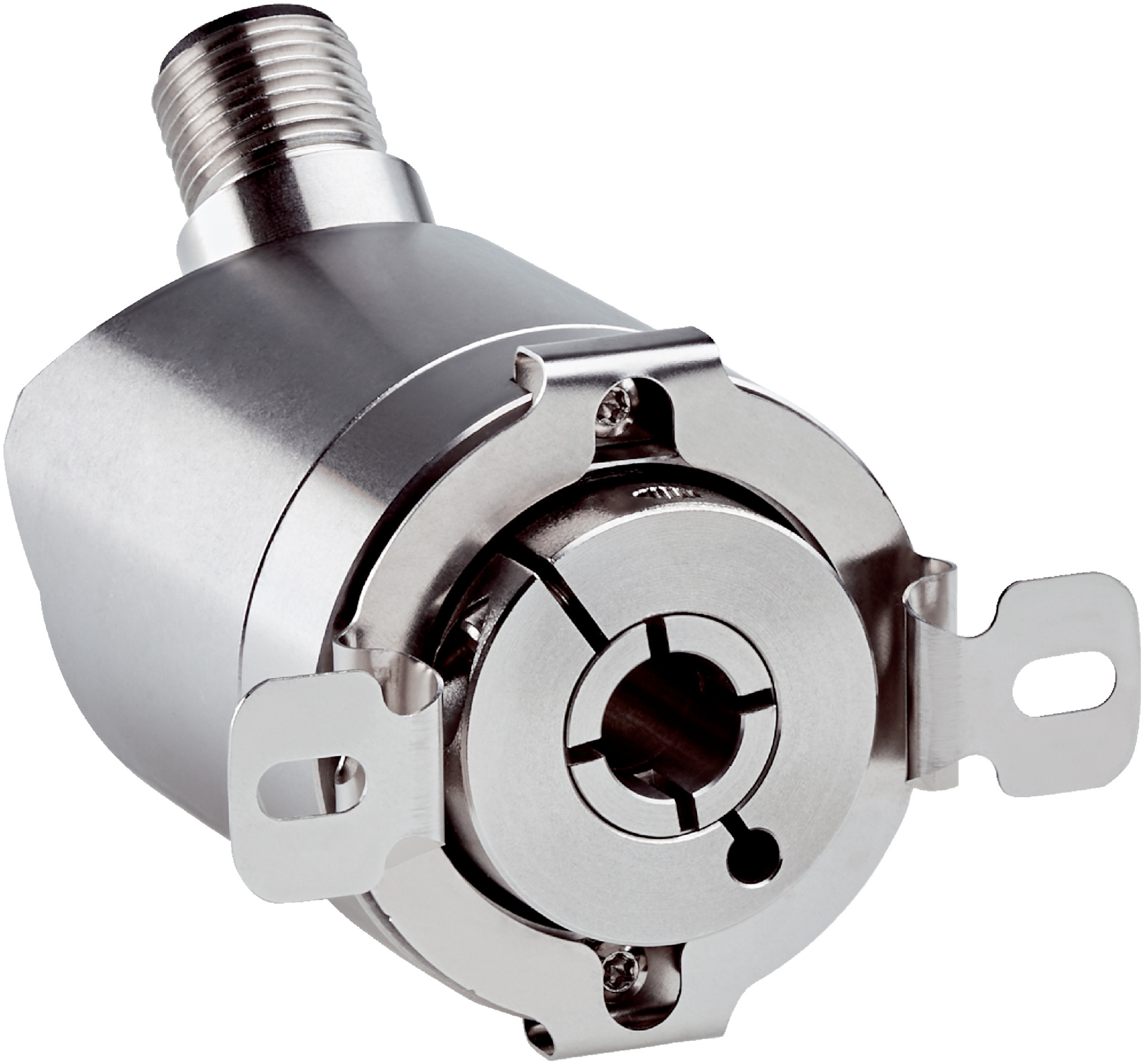

Absolute Encoder AHM36I-BDQC014x12 | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
The Absolute Encoder AHM36I-BDQC014x12 offers high precision with 16,384 steps per revolution and a robust IO-Link V1.1 communication interface. Designed for industrial automation, this encoder excels in applications requiring reliable position and speed measurement, making it ideal for robotics and machine tool feedback systems. Its durable stainless steel construction and IP67/IP69K ratings ensure performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36I-BDQC014x12 | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1093756
Alternatively Known As: Absolute rotary encoder, IO-Link encoder, SICK rotary position sensor, industrial position encoder
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev (14 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Process data includes position, speed, electronic cams, limit values, linear position and speed
- Connection type: Male M12, 4-pin connector
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Blind hollow shaft with 10 mm diameter and front clamp
- Materials: Stainless steel 1.4305 for shaft, flange, stator coupling, and housing
- Start-up and operating torque: ≤ 1 Ncm
- Permissible static movement: ± 0.3 mm radial and axial
- Permissible dynamic movement: ± 0.1 mm radial and axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 23 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP67 and IP69K
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft materials
- IP67 and IP69K rated for harsh environments
- Wide operating temperature range from -40 °C to +85 °C
- Low start-up and operating torque (≤ 1 Ncm)
- Advanced diagnostics and smart sensor capabilities
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
- Reverse polarity protection and male M12 4-pin connector
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the IO-Link interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Machine tool feedback and control
- Process control requiring high resolution and reliability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption (≤ 1.5 W) supports energy-efficient operation
- High reliability reduces downtime and maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36I-BDQC014x12 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
