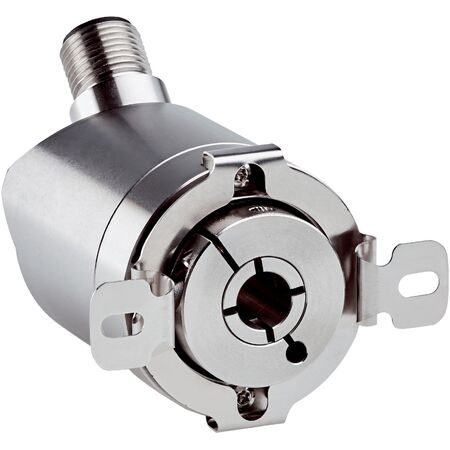

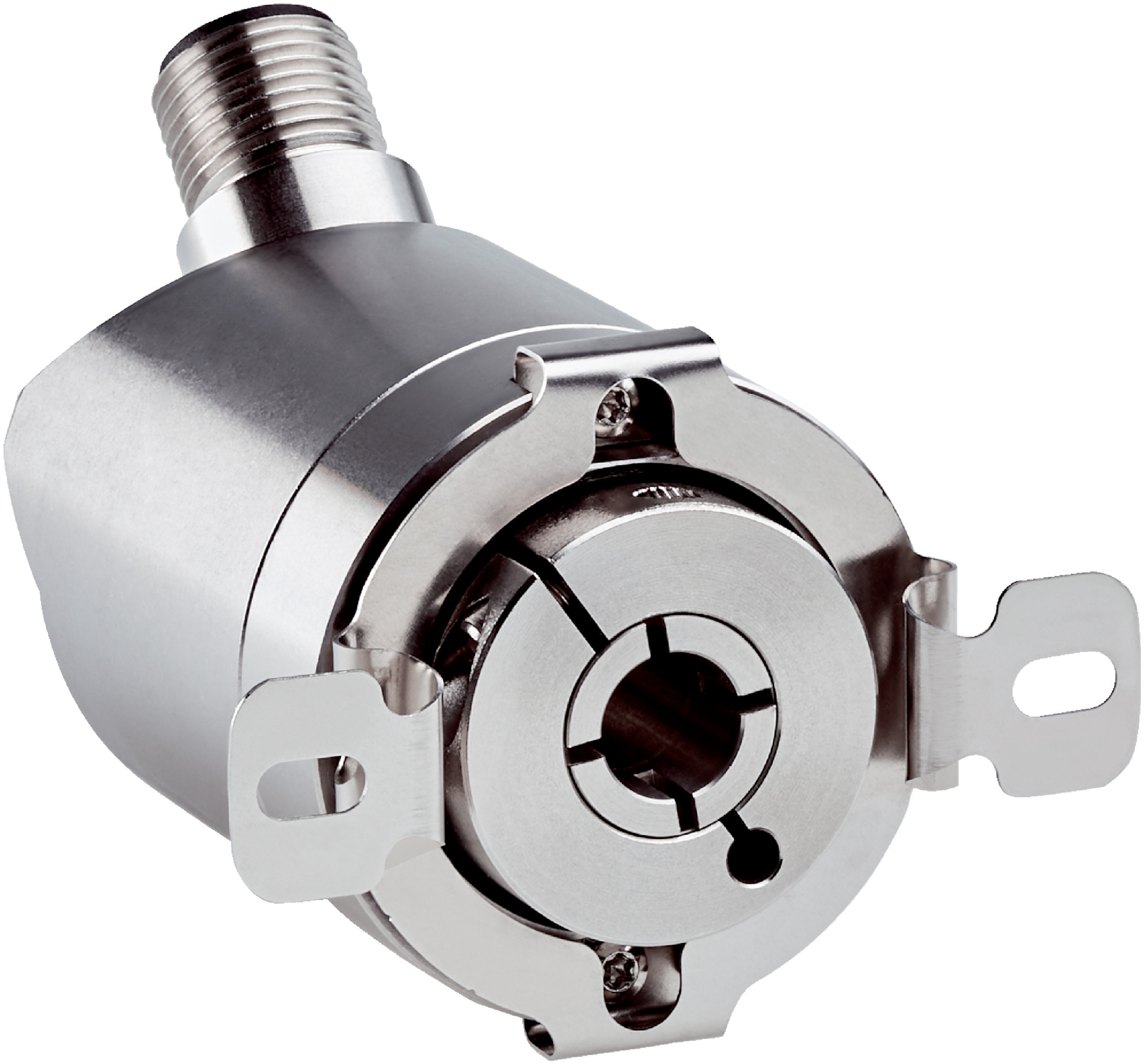

Absolute Encoder AHM36I-BKCC014x12 | 16,384 Steps/Rev | CANopen Interface | IP67 & IP69K Rated | by SICK
The Absolute Encoder AHM36I-BKCC014x12 offers high precision with 16,384 steps per revolution and a robust CANopen communication interface. Designed for industrial automation, robotics, and safety-critical applications, it features an IP67 and IP69K rating for harsh environments, ensuring reliability and durability in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36I-BKCC014x12 | 16,384 Steps/Rev | CANopen Interface | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1099319
Alternatively Known As: Absolute rotary encoder, CANopen encoder, SICK rotary encoder, high resolution encoder
Technical Specifications
- MTTFD: 270 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev (14 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Address setting: 0 to 127, default 5
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Initialization time: 2 seconds
- Process data: Position, speed, temperature
- Connection: Male M12 5-pin connector
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W
- Mechanical design: Blind hollow shaft, 1/4 inch diameter, front clamp
- Operating torque: < 1 Ncm at 20 °C
- Operating speed: ≤ 6,000 min⁻¹
- Enclosure rating: IP67 and IP69K
- Operating temperature: -40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- CANopen communication interface with multiple diagnostic data
- Robust stainless steel housing and shaft materials
- IP67 and IP69K rated for harsh environments
- Low power consumption ≤ 1.5 W
- Reverse polarity protection
- High mechanical durability with 2.0 x 10^9 bearing lifetime revolutions
- Operating temperature range from -40 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the CANopen interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Machine tool feedback and control
- Safety-related applications requiring high reliability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption reduces energy usage
- High reliability minimizes downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36I-BKCC014x12 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
