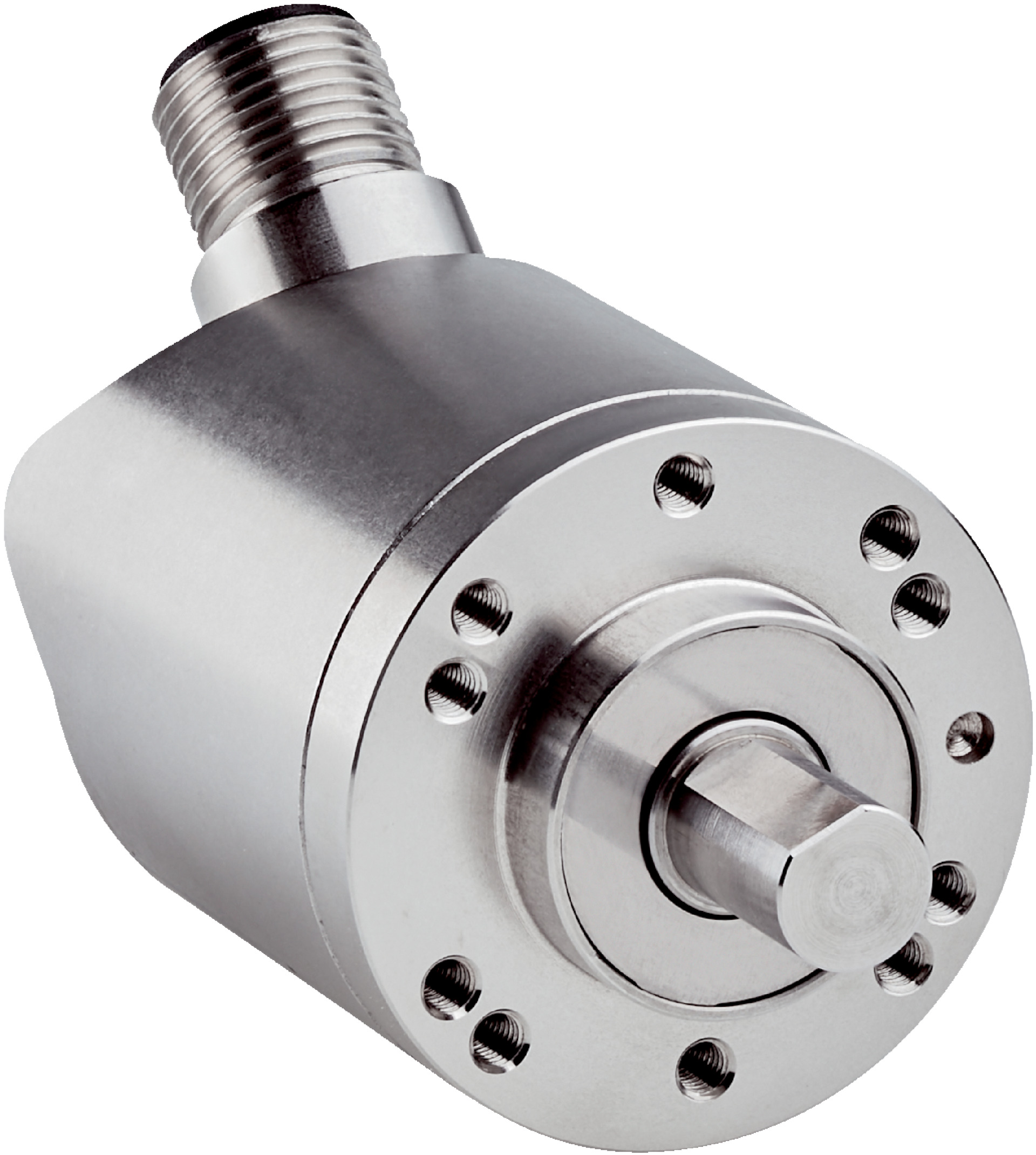

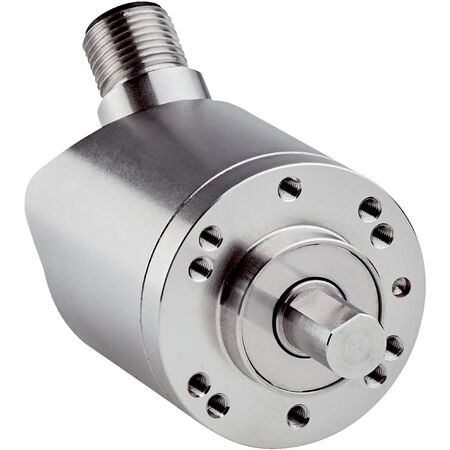

Absolute Encoder AHM36I-S5CC014x12 | 16384 Steps/Rev | CANopen Interface | IP67 & IP69K Protection | by SICK
The AHM36I-S5CC014x12 absolute encoder delivers high precision with 16,384 steps per revolution and a robust CANopen communication interface. Designed for industrial automation, robotics, and safety-critical applications, it features a durable stainless steel housing with IP67 and IP69K protection, ensuring reliable performance in harsh environments. With a wide operating temperature range from -40 °C to +85 °C, this encoder is built for longevity and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36I-S5CC014x12 | 16384 Steps/Rev | CANopen Interface | IP67 & IP69K Protection | by SICK
Brand: SICK
SKU: 1099328
Alternatively Known As: Rotary Absolute Encoder, CANopen Encoder, High Resolution Encoder, Industrial Position Sensor
Technical Specifications
- Resolution: 16,384 steps per revolution (14 bit) and 4,096 revolutions (12 bit)
- Error limit: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection: Male M12 5-pin connector
- Mechanical design: Solid shaft with 8 mm diameter and 12 mm length, stainless steel
- Operating speed: up to 6,000 min⁻¹
- Protection rating: IP67 and IP69K
- Operating temperature: -40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- CANopen communication interface with multiple diagnostic data
- Robust stainless steel housing and shaft with IP67 and IP69K protection
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High mechanical durability with bearing lifetime of 3.6 x 10^8 revolutions
- Wide operating temperature range from -40 °C to +85 °C
- Safety-related mean time to dangerous failure (MTTFD) of 270 years
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial encoder systems and CANopen networks is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high-resolution rotary position feedback
- Machine tools and manufacturing equipment
- Safety-related applications in machinery control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
- High reliability reduces downtime and maintenance frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36I-S5CC014x12 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring precise rotary position feedback.
