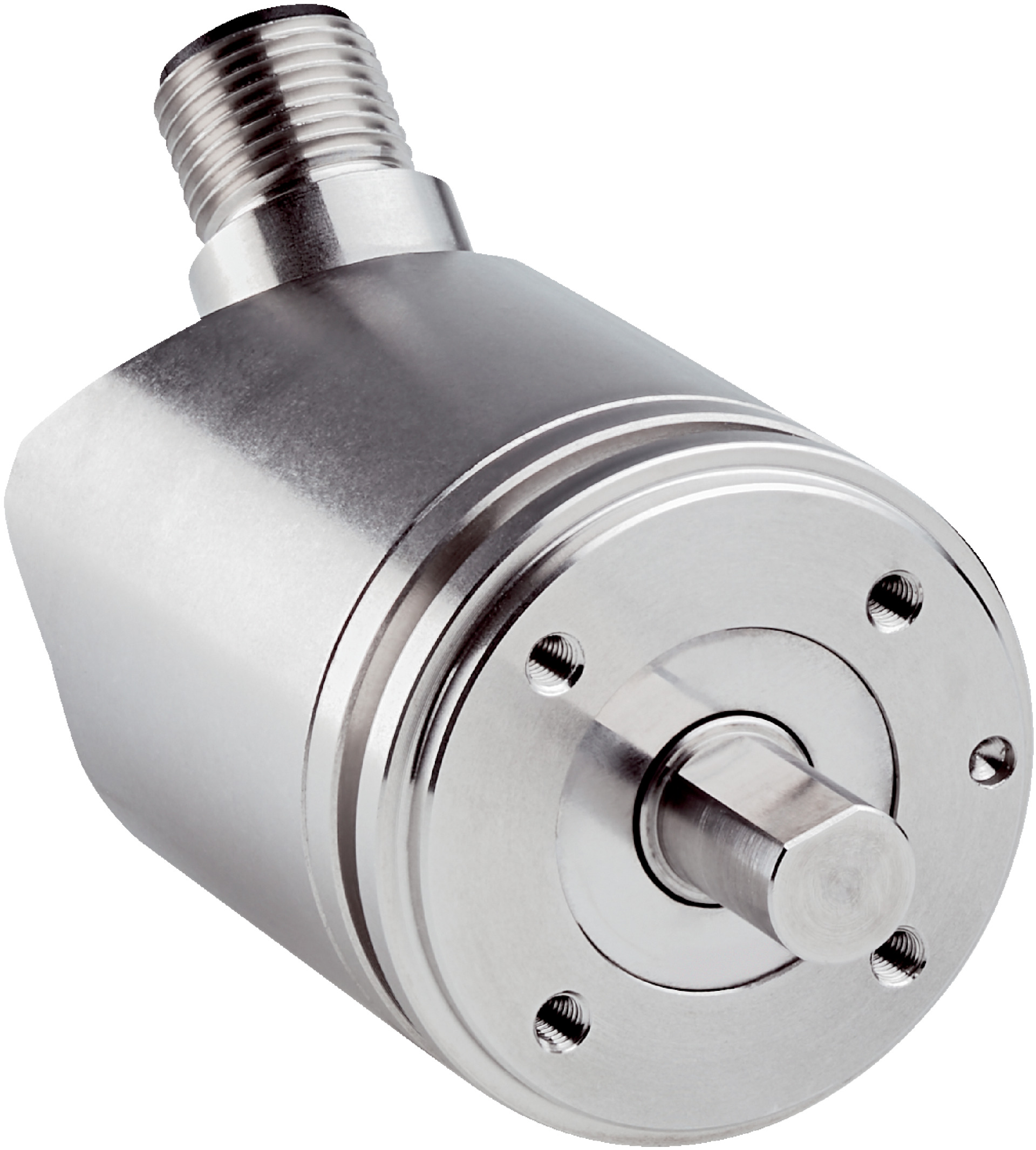

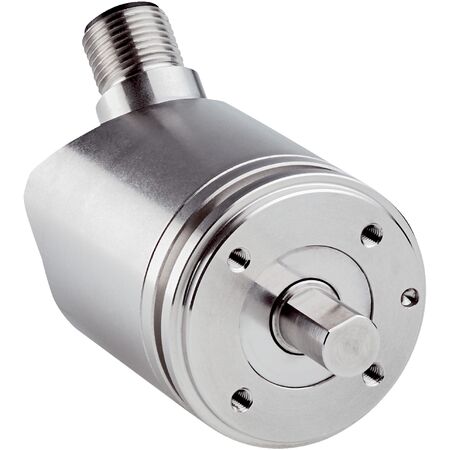

Absolute Encoder AHM36I-S9QC014x12 | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Protection | by SICK
The Absolute Encoder AHM36I-S9QC014x12 delivers high precision with 16,384 steps per revolution and 4,096 revolutions, making it ideal for industrial automation and robotics. With an IO-Link V1.1 communication interface and robust IP67/IP69K protection, it ensures reliable performance in demanding environments. Designed for professionals, this encoder supports applications requiring high-resolution position feedback and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36I-S9QC014x12 | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Protection | by SICK
Brand: SICK
SKU: 1093760
Alternatively Known As: Rotary Encoder, Absolute Rotary Encoder, IO-Link Encoder, High Resolution Encoder, Industrial Position Sensor
Technical Specifications
- Resolution: 16,384 steps per revolution (14 bit) and 4,096 revolutions (12 bit)
- Max resolution: 14 bit x 12 bit (16,384 x 4,096)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Power supply: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: Male M12, 4-pin connector
- Shaft diameter: 8 mm with flat
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature: –40 °C to +85 °C
- Enclosure rating: IP67 and IP69K
- Mechanical design: Solid shaft, servo flange
- Bearing lifetime: 3.6 x 10^8 revolutions
- Permissible shaft loading: 40 N radial, 20 N axial
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft with IP67 and IP69K protection
- Low start-up and operating torque (≤ 1 Ncm)
- Wide operating temperature range from –40 °C to +85 °C
- Integrated diagnostics and status LED for easy monitoring
- High mechanical durability with bearing lifetime of 3.6 x 10^8 revolutions
- Reverse polarity protection and low power consumption (≤ 1.5 W)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high-resolution rotary position feedback
- Machine tools and servo drives
- Safety-related applications with high reliability requirements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
- High reliability reduces downtime and maintenance frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36I-S9QC014x12 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring precise position feedback.
