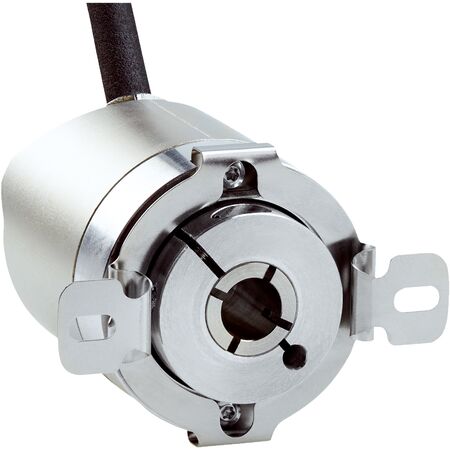

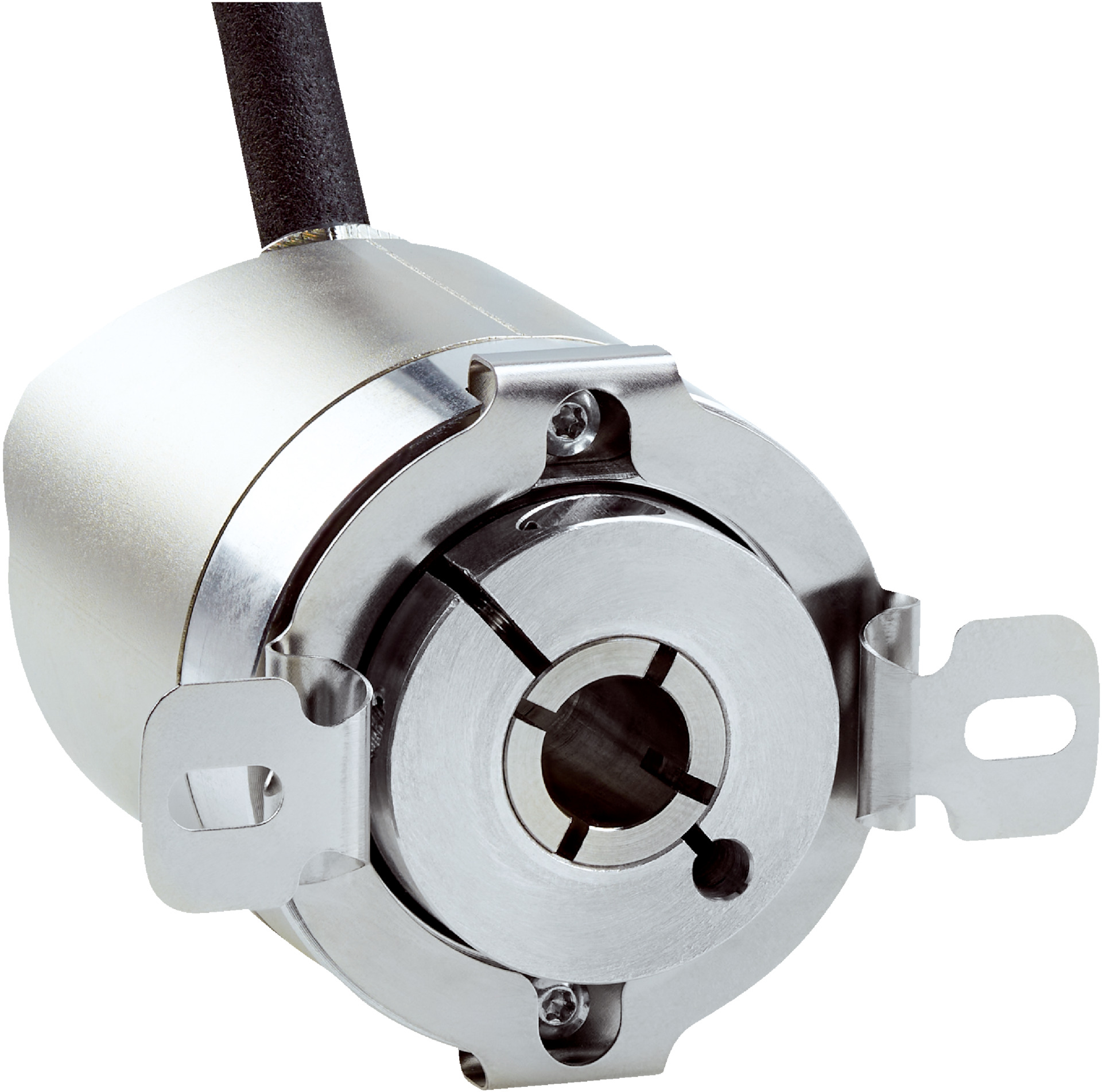

Absolute Encoder AHS36A-BDCJ016384 | 16,384 Steps/Rev | CANopen Interface | IP66/IP67 Rated | by SICK
The Absolute Encoder AHS36A-BDCJ016384 offers high precision with 16,384 steps per revolution, making it ideal for industrial automation and robotics. With a robust CANopen communication interface and an IP66/IP67 rated enclosure, it ensures reliable performance in harsh environments. Designed for safety-critical applications, this encoder features low power consumption and a long bearing lifetime, making it a durable choice for your machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHS36A-BDCJ016384 | 16,384 Steps/Rev | CANopen Interface | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1078857
Alternatively Known As: Rotary Encoder, Absolute Rotary Encoder, CANopen Encoder, Industrial Position Sensor
Technical Specifications
- Resolution: 16,384 steps per revolution (14 bit)
- Error limit: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Address setting: 0 to 127, default 5
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Initialization time: 2 seconds
- Process data: Position, speed, temperature
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Blind hollow shaft, 10 mm diameter, front clamp
- Materials: Stainless steel shaft, aluminum flange, zinc housing, PUR cable
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia: 15 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Operating temperature range: -40 °C to +85 °C
- Enclosure rating: IP66 and IP67
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- CANopen communication interface with multiple data protocols
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP66 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -40 °C to +85 °C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High mechanical durability with bearing lifetime of 2.0 x 10^9 revolutions
- Safety-related parameter MTTFD of 270 years according to EN ISO 13849-1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen communication and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high-resolution rotary position feedback
- Machine tools and manufacturing equipment
- Safety-related control systems in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36A-BDCJ016384 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
