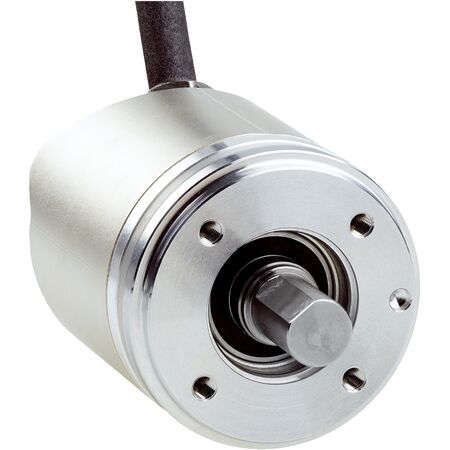

Absolute Encoder AHS36B-S2QK004096 | 4096 Steps/Rev | IO-Link V1.1 | IP65 Rated | by SICK
The Absolute Encoder AHS36B-S2QK004096 offers high precision with 4,096 steps per revolution, making it ideal for industrial automation and motion control applications. Featuring an IO-Link V1.1 communication interface and robust IP65 rated enclosure, this encoder ensures reliable performance in demanding environments. Perfect for servo motor feedback systems and robotics, it combines durability with low power consumption for efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHS36B-S2QK004096 | 4096 Steps/Rev | IO-Link V1.1 | IP65 Rated | by SICK
Brand: SICK
SKU: 1107680
Alternatively Known As: Rotary encoder, Absolute rotary encoder, IO-Link encoder, Position sensor, SICK encoder AHS36B
Technical Specifications
- Resolution: 4,096 steps per revolution (12 bit)
- Error limit: 0.35° at 20 °C
- Repeatability standard deviation: 0.25° at 20 °C
- Communication: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: 4-wire cable, 1.5 m length
- Mechanical design: Solid shaft with servo flange
- Shaft diameter: 10 mm with flat
- Materials: Stainless steel shaft, aluminum flange, zinc housing
- Operating temperature: -20 °C to +70 °C
- Storage temperature: -40 °C to +100 °C
- Enclosure rating: IP65
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust mechanical design with solid shaft and servo flange
- IP65 rated enclosure for dust and water protection
- Low start-up and operating torque (< 0.5 Ncm)
- High operating speed up to 9,000 min⁻¹
- Reverse polarity protection
- Efficient communication with smart sensor capabilities
- Long bearing lifetime of 3.6 x 10^8 revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the IO-Link interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Servo motor feedback systems
- Robotics and motion control
- Factory automation requiring high resolution and reliability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption (≤ 1.5 W) reduces energy usage
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHS36B-S2QK004096 absolute encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
