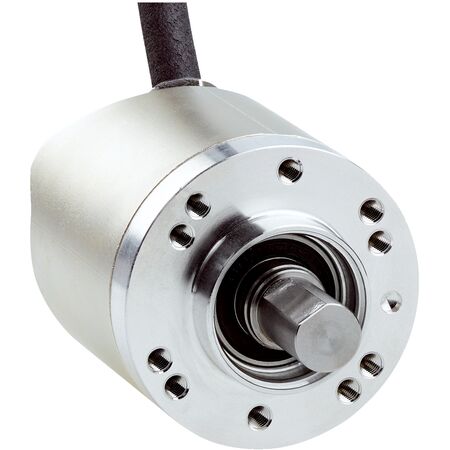

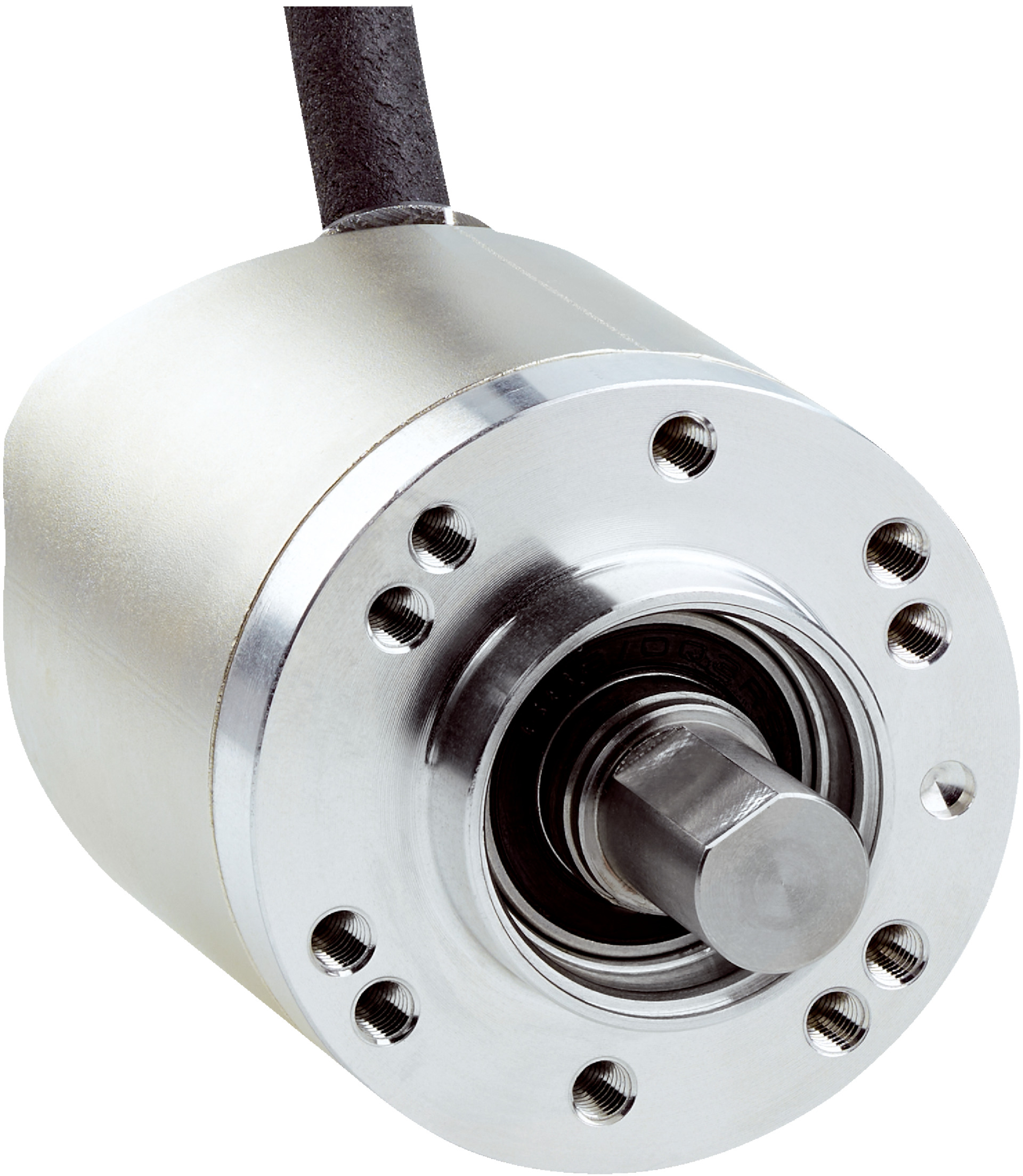

Absolute Encoder AHS36B-S3QJ004096 | 4096 Steps/Rev | IO-Link V1.1 | IP65 Rated | by SICK
The Absolute Encoder AHS36B-S3QJ004096 delivers high precision with 4,096 steps per revolution, making it ideal for industrial automation and robotics. Featuring an IO-Link V1.1 communication interface and an IP65 rated enclosure, this encoder ensures reliable performance in demanding environments. With low power consumption and excellent repeatability, it’s perfect for applications requiring accurate position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHS36B-S3QJ004096 | 4096 Steps/Rev | IO-Link V1.1 | IP65 Rated | by SICK
Brand: SICK
SKU: 1092343
Alternatively Known As: Rotary Encoder, Absolute Rotary Encoder, IO-Link Encoder, Position Sensor, SICK Encoder AHS36B
Technical Specifications
- Resolution: 4,096 steps per revolution (12 bit)
- Error limit: 0.35° at 20 °C
- Repeatability standard deviation: 0.25° at 20 °C
- Communication: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: 4-wire cable, 0.5 m length
- Mechanical shaft diameter: 6 mm with flat
- Operating temperature range: -20 °C to +70 °C
- Enclosure rating: IP65
- Operating speed: ≤ 9,000 min⁻¹
- Permissible shaft loading: 40 N radial, 20 N axial
- Bearing lifetime: 3.6 x 10^8 revolutions
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust mechanical design with solid shaft and face mount flange
- IP65 rated enclosure for protection against dust and water
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Excellent repeatability with standard deviation σr of 0.25° at 20 °C
- Durable stainless steel shaft and aluminum flange
- Resistance to shocks (100 g, 6 ms) and vibration (20 g, 10 Hz to 2,000 Hz)
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper electrical connections and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and machinery requiring high-resolution rotary position feedback
- Safety-related systems requiring reliable encoder data
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36B-S3QJ004096 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise rotary position feedback.
