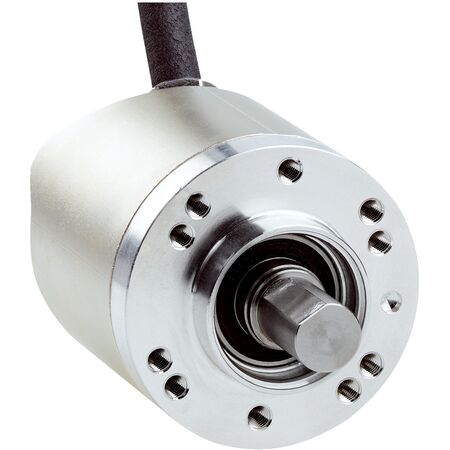

Absolute Encoder AHS36B-S5CL004096 | 4096 Steps/Rev | IP65 Rated | High Speed up to 9000 min⁻¹ | by SICK
The Absolute Encoder AHS36B-S5CL004096 offers high precision with 4,096 steps per revolution, making it ideal for industrial automation and robotics. With a robust mechanical design and an IP65 rated enclosure, it ensures reliable performance in harsh environments. Designed for applications requiring precise position and speed measurement, this encoder supports CANopen communication for versatile integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHS36B-S5CL004096 | 4096 Steps/Rev | IP65 Rated | High Speed up to 9000 min⁻¹ | by SICK
Brand: SICK
SKU: 1088435
Alternatively Known As: Rotary Encoder, Absolute Rotary Encoder, CANopen Encoder, Industrial Position Sensor
Technical Specifications
- Resolution: 4,096 steps per revolution (12 bit)
- Error limit: 0.35° at 20 °C
- Repeatability standard deviation: 0.25° at 20 °C
- Communication interface: CANopen CiA DS-301 V4.02, CiA DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Data transmission rate: 20 kbit/s to 1,000 kbit/s (default 125 kbit/s)
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: 5-wire cable, 3 m length
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 8 mm with flat
- Operating speed: up to 9,000 min⁻¹
- Operating temperature range: –20 °C to +70 °C
- Enclosure rating: IP65
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- Robust mechanical design with solid shaft and face mount flange
- CANopen communication interface with multiple data protocols
- IP65 rated enclosure for protection against dust and water
- Low power consumption (≤ 1.5 W) with reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Durable stainless steel shaft and aluminum flange
- Wide operating temperature range from –20 °C to +70 °C
- High resistance to shocks (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the CANopen interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high-resolution rotary position feedback
- Machine tools and manufacturing equipment
- Conveyor systems and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable materials and long bearing lifetime minimize replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHS36B-S5CL004096 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
