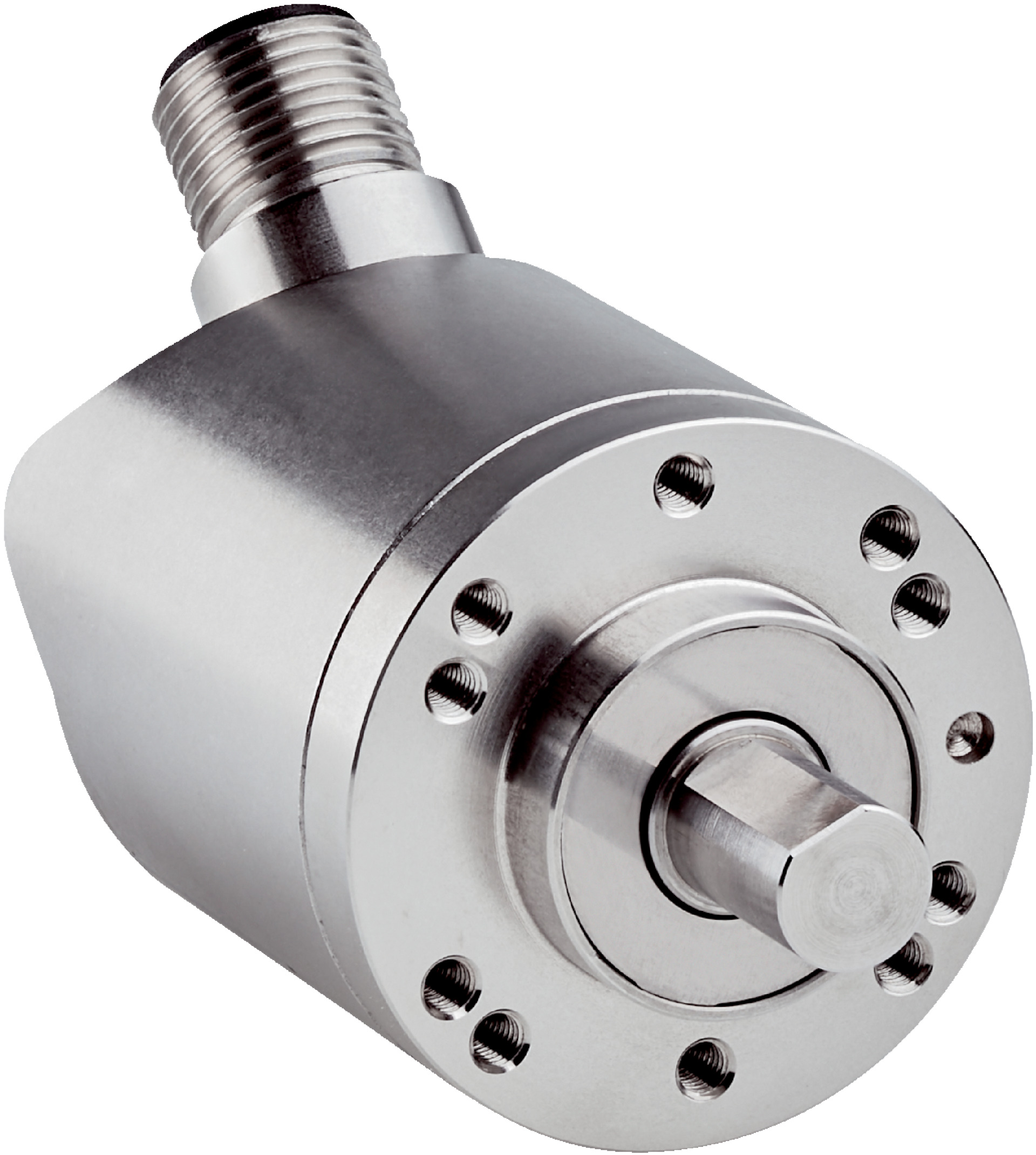

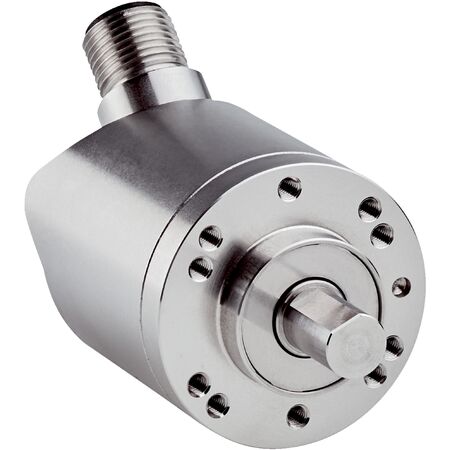

Absolute Encoder AHS36I-S3QC016384 | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
The Absolute Encoder AHS36I-S3QC016384 offers high precision with 16,384 steps per revolution and IO-Link V1.1 communication, making it ideal for industrial automation and robotics. Built for reliability, it features a robust stainless steel housing with IP67 and IP69K protection, ensuring durability in harsh environments. Perfect for applications requiring precise position and speed measurement, this encoder guarantees high performance and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHS36I-S3QC016384 | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1093799
Alternatively Known As: Absolute rotary encoder, IO-Link encoder, incremental encoder alternative, industrial position sensor
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps per revolution (14 bit)
- Error limit: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Power supply: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: Male M12, 4-pin connector
- Shaft diameter: 6 mm with flat
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature: –40 °C to +85 °C
- Enclosure rating: IP67 and IP69K
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft with IP67 and IP69K protection
- Low start-up and operating torque (≤ 1 Ncm)
- Wide operating temperature range from –40 °C to +85 °C
- Comprehensive diagnostics and status information via LED
- High mechanical reliability with bearing lifetime of 3.6 x 10^8 revolutions
- Resistance to shocks (100 g, 6 ms) and vibration (20 g, 10 Hz to 2000 Hz)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and configuration of IO-Link communication.
Applications
- Industrial automation for precise position and speed measurement
- Machine tool feedback systems
- Robotics and motion control
- Process control systems requiring high resolution and reliability
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption (≤ 1.5 W) supports energy-efficient operation
- High reliability reduces downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36I-S3QC016384 absolute encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
