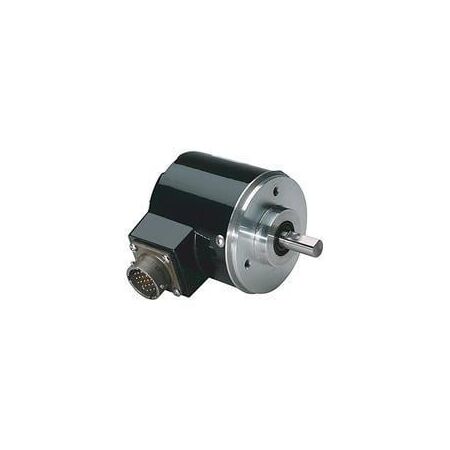

Absolute Encoder Allen-Bradley 845DSJGB25AGFW5 | 1024 PPR | NEMA 4 Rated | 10 mm Shaft Diameter | by Allen-Bradley
The Absolute Encoder Allen-Bradley 845DSJGB25AGFW5 features a robust NEMA 4 rated enclosure and delivers 1024 pulses per revolution, making it ideal for industrial automation and servo motor feedback applications. With a 10 mm shaft diameter and NPN open collector output, this encoder ensures precise positioning and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Absolute encoder
- Pulse Output: 1024 PPR
- Output Code: Gray code
- Shaft Diameter: 10 mm
- Flange: Metric servo 48 mm bolt circle
- Enclosure Rating: NEMA 4
- Voltage Input: 8-24 V DC unregulated
- Output Type: NPN open collector, 24 V DC max
- Connector: Radial connector (side) with mate
- Dimensions (H x L x W): 48mm x 70mm x 48mm
- Weight: 0.3 kg
Key Features
- Absolute encoder with 1024 pulses per revolution (PPR)
- NEMA 4 rated enclosure for protection against dust and water
- Metric servo 48 mm bolt circle flange
- 10 mm shaft diameter
- NPN open collector output, 24 V DC max
- Gray code output
- Radial connector (side) with mate included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Servo motor feedback for precise positioning
- Robotics and machinery requiring accurate shaft position sensing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable NEMA 4 enclosure reduces need for frequent replacements, minimizing waste
- Low power consumption with 8-24 V DC unregulated input
Warranty Information
Includes Radwell 2-year warranty; factory warranty does not apply.
Available Now
The Allen-Bradley 845DSJGB25AGFW5 Absolute Encoder is available for immediate purchase, ideal for industrial automation and servo motor feedback applications.
