Absolute Encoder Allen-Bradley 845DSJDZ24AGCW4 | NEMA 4 Rated | 256 PPR Gray Code | @Each by Allen-Bradley

BRAND: Allen-Bradley
SKU: 845DSJDZ24AGCW4
$3,649.50 List price: $4,547.80
+ −
30 Days Return Delivery Options
Absolute Encoder Allen-Bradley 845DSJDZ24AGCW4 | NEMA 4 Rated | 256 PPR Gray Code | @Each by Allen-Bradley

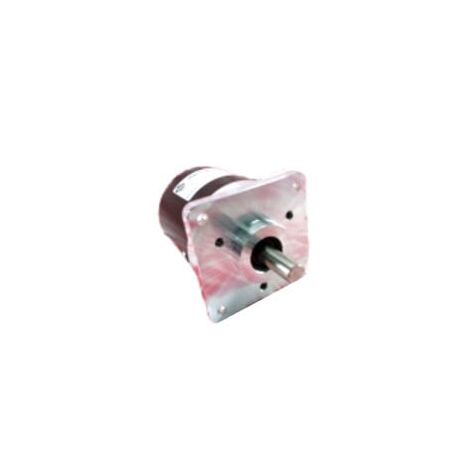

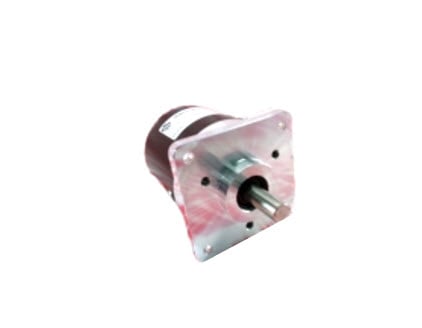

Product Name/Title: Allen-Bradley 845DSJDZ24AGCW4 Absolute Encoder Size 25

Brand: Allen-Bradley

SKU: 845DSJDZ24AGCW4

Alternatively Known As: Absolute rotary encoder, Allen-Bradley position encoder, 256 PPR encoder, Gray code encoder

Technical Specifications
  • Encoder Type: Absolute
  • Size: 25
  • Enclosure Rating: NEMA 4
  • Mounting: Square flange
  • Shaft Diameter: 3/8 inch
  • Power Supply: 8-24 V DC unregulated
  • Output Signal: DLD 5V DC RS-422
  • Code Type: Gray code
  • Pulses Per Revolution (PPR): 256
  • Connector: Axial connector with mate
  • Dimensions (H x L x W): 50mm x 70mm x 50mm
  • Weight: 0.3 kg
Key Features
  • Absolute encoder providing precise position feedback
  • NEMA 4 rated enclosure for protection against dust and water
  • Square flange mounting
  • 3/8 inch shaft diameter
  • Gray code output with 256 pulses per revolution (PPR)
  • Axial connector with mating plug
  • Operates on 8-24 V DC unregulated power supply
  • DLD 5V DC RS-422 output interface
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper wiring and operation.
Applications
  • Industrial automation systems
  • Robotics and machinery position feedback
  • Factory automation and control systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable NEMA 4 enclosure reduces need for frequent replacements, minimizing waste
  • Low power consumption with 8-24 V DC operation
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 845DSJDZ24AGCW4 Absolute Encoder Size 25 is available for immediate purchase, ideal for industrial automation and control system applications.
