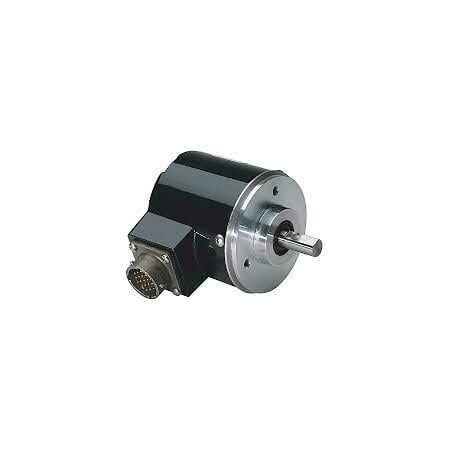

Product Name/Title: Allen-Bradley 845GF3D8HT0360A Absolute Encoder Size 25
Brand: Allen-Bradley
SKU: 845GF3D8HT0360A
Alternatively Known As: Absolute rotary encoder, binary coded decimal encoder, Allen-Bradley encoder size 25
Technical Specifications
- Type: Absolute encoder
- Output code: Binary coded decimal
- Power supply: 8-24VDC
- Output signal: High true, 5VDC TTL NPN
- Resolution: 9 or 10 bit (0-359 degrees)
- Mounting: Square flange
- Connector: Axial 19-pin
- Dimensions (H x L x W): 25mm x 50mm x 25mm
- Weight: 0.3 kg
Key Features
- Absolute encoder with binary coded decimal output
- Square flange design for easy mounting
- Operates on 8-24VDC power supply
- High true output with 5VDC TTL NPN signal
- 9 or 10 bit resolution covering 0-359 degrees
- Axial 19-pin connector for reliable connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Manufacturing process monitoring
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 8-24VDC operation
- Durable ABS housing reduces material waste through long service life
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 845GF3D8HT0360A Absolute Encoder is available for immediate purchase, ideal for industrial automation and precise position feedback applications.
