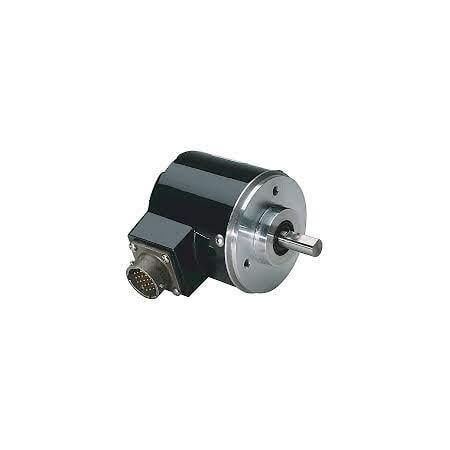

Product Name/Title: Allen-Bradley 845GF3G8HT4096R Absolute Encoder Size 25
Brand: Allen-Bradley
SKU: 845GF3G8HT4096R
Alternatively Known As: Absolute rotary encoder, Gray code encoder, 12-bit position encoder, Allen-Bradley encoder size 25
Technical Specifications
- Type: Absolute encoder
- Output code: Gray code
- Resolution: 12-bit (0-4095 counts)
- Mounting: Square flange
- Connector: Radial 19-pin
- Power supply: 8-24VDC
- Signal output: High true, 5VDC TTL NPN
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Absolute encoder with gray code output
- Square flange mounting
- 12-bit resolution providing 0-4095 counts
- Radial 19-pin connector
- Operates on 8-24VDC power supply
- High true output with 5VDC TTL NPN signal
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper wiring and configuration.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Manufacturing process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Provides precise position feedback reducing machine errors and waste
- Supports energy-efficient automation systems
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 845GF3G8HT4096R Absolute Encoder is available for immediate purchase, ideal for industrial automation and precise position sensing applications.
