Absolute Encoder Allen-Bradley 845GS3B8HC0256R | 8-Bit Resolution | 8-24VDC Power Supply | Radial 19-Pin Connector | by Allen-Bradley
Absolute Encoder Allen-Bradley 845GS3B8HC0256R | 8-Bit Resolution | 8-24VDC Power Supply | Radial 19-Pin Connector | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

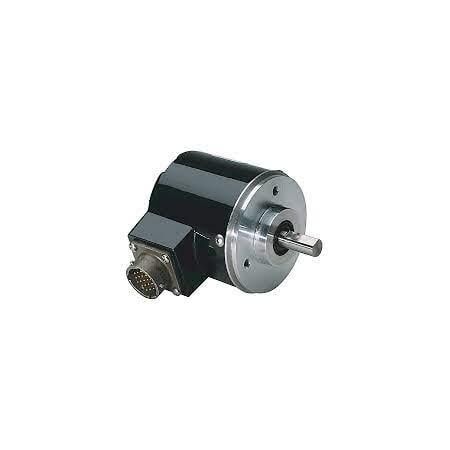

Product Name/Title: Allen-Bradley 845GS3B8HC0256R Absolute Encoder Size 25
Brand: Allen-Bradley
SKU: 845GS3B8HC0256R
Alternatively Known As: Absolute rotary encoder, Allen-Bradley encoder, 8-bit absolute encoder, servo encoder
Technical Specifications
- Encoder Type: Absolute
- Size: 25 mm
- Output: Natural binary, 8-bit (0-255)
- Power Supply: 8-24VDC
- Output Signal: High true, NPN open collector
- Maximum Voltage: 24VDC
- Connector: Radial 19-pin
- Dimensions (H x L x W): 25mm x 50mm x 25mm
- Weight: 0.3 kg
Key Features
- Absolute encoder providing natural binary output
- 8-bit resolution (0-255)
- Operates on 8-24VDC power supply
- High true signal output
- NPN open collector output type
- Radial 19-pin connector
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial encoders and electrical wiring standards.
Applications
- Industrial automation and control systems
- Servo motor feedback
- Position sensing in machinery
- Robotics and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves machine efficiency by providing accurate position feedback, reducing energy waste
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 845GS3B8HC0256R Absolute Encoder Size 25 is available for immediate purchase, ideal for industrial automation and servo control applications.
