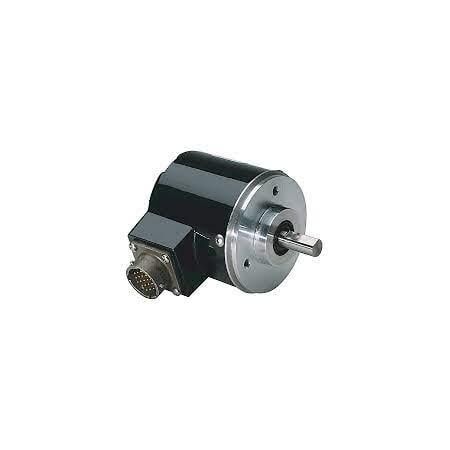

Product Name/Title: Allen-Bradley 845GS3B8HC4096R Absolute Encoder Size 25
Brand: Allen-Bradley
SKU: 845GS3B8HC4096R
Alternatively Known As: Absolute rotary encoder, Allen-Bradley encoder, 12-bit position encoder, servo encoder
Technical Specifications
- Type: Absolute encoder
- Size: 25
- Output: Natural binary
- Signal type: NPN open collector
- Power supply: 8-24VDC
- Maximum voltage: 24VDC
- Resolution: 12-bit (0-4095 counts)
- Connector: Radial 19-pin
- Signal: High true
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Absolute encoder providing precise position feedback
- Natural binary output
- NPN open collector output type
- Radial 19-pin connector
- Operates on 8-24VDC power supply
- 12-bit resolution with 0-4095 count range
- High true signal output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and integration with control systems.
Applications
- Industrial automation and control systems
- Servo motor feedback
- Position sensing in machinery
- Robotics and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves machine efficiency by providing accurate position feedback, reducing energy waste
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 845GS3B8HC4096R Absolute Encoder is available for immediate purchase, ideal for industrial automation and servo motor feedback applications.
