Absolute Encoder Allen-Bradley 845GS3G8HC0512S | 25mm Size | Gray Code Output | NPN Open Collector | by Allen-Bradley
Absolute Encoder Allen-Bradley 845GS3G8HC0512S | 25mm Size | Gray Code Output | NPN Open Collector | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

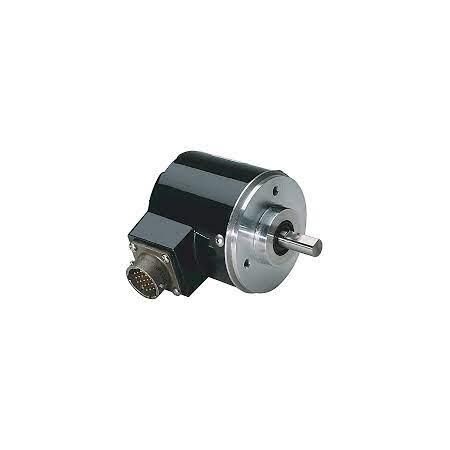

Product Name/Title: Allen-Bradley 845GS3G8HC0512S Absolute Encoder Size 25
Brand: Allen-Bradley
SKU: 845GS3G8HC0512S
Alternatively Known As: Absolute rotary encoder, Gray code encoder, Servo encoder, Allen-Bradley encoder size 25
Technical Specifications
- Type: Absolute encoder
- Size: 25mm
- Output code: Gray code
- Power supply: 8-24VDC
- Output type: NPN open collector
- Max voltage: 24VDC
- Resolution: 9 bit (0-511)
- Connector: Axial 17-pin
- Dimensions (H x L x W): 25mm x 50mm x 25mm
- Weight: 0.3 kg
Key Features
- Absolute encoder providing precise position feedback
- Gray code output
- Operates on 8-24VDC power supply
- NPN open collector output
- Axial 17-pin connector
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper integration and safety.
Applications
- Industrial automation and control systems
- Servo motor feedback
- Position sensing in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption (8-24VDC) reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 845GS3G8HC0512S Absolute Encoder Size 25 is available now for immediate purchase. Ideal for industrial automation and servo motor feedback applications.
