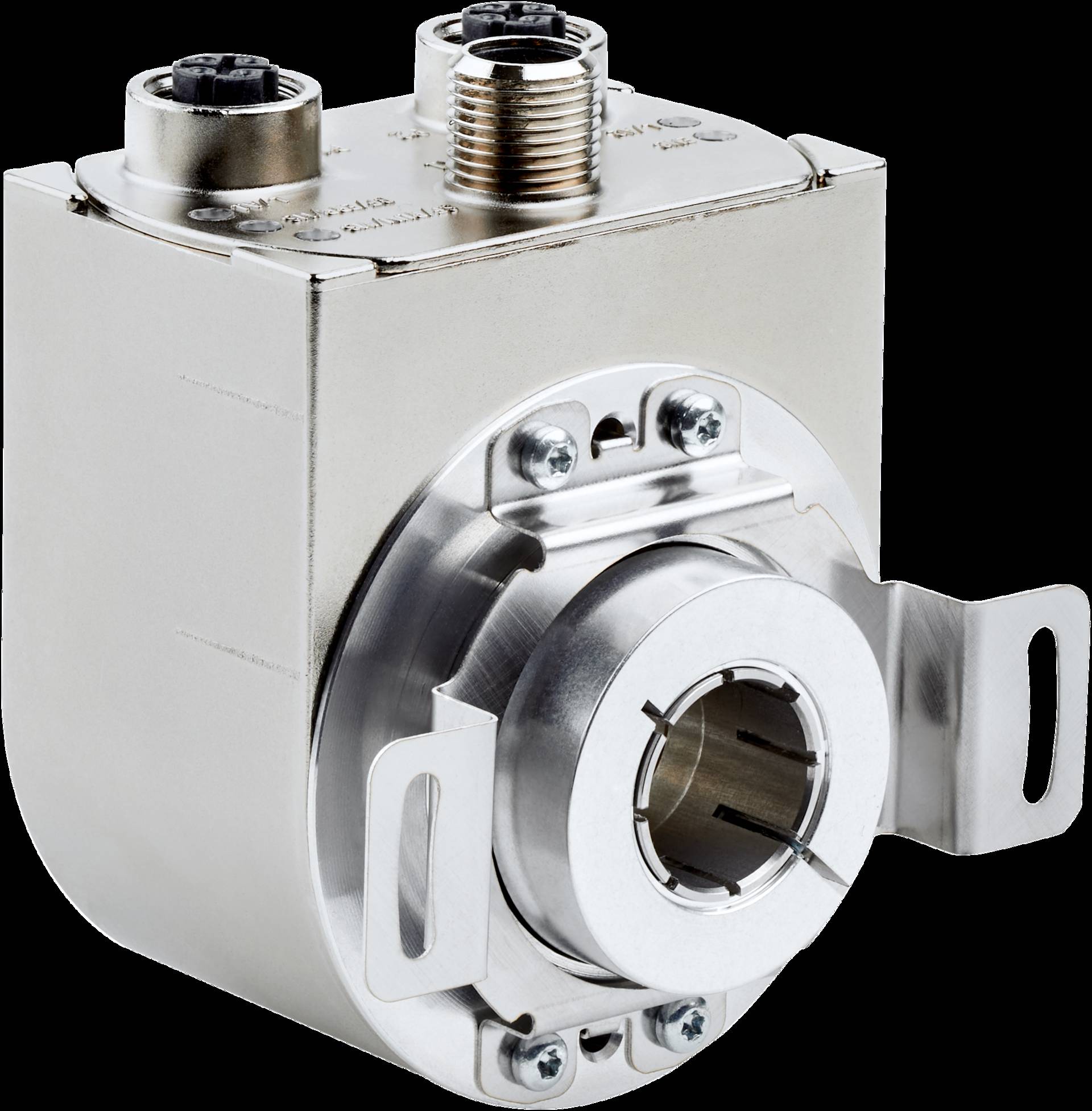

Absolute Encoder ANS/ANM58 | Multiturn Version | PROFINET Interface | 18-Bit Optical Measuring System | by SICK

BRAND: SICK
SKU: 1143849
$2,699.30 List price: $3,392.70
+
The ANS/ANM58 absolute encoder is designed for industrial automation, featuring a multiturn version with a low installation depth of just 39 mm. With a PROFINET interface and an 18-bit optical measuring system, it provides precise position feedback for process control systems. Ideal for tight installation spaces, this encoder supports condition-based maintenance, ensuring efficient operation and reduced downtime.

Product Name/Title: Absolute Encoder ANS/ANM58 | Multiturn Version | PROFINET Interface | 18-Bit Optical Measuring System | by SICK

Brand: SICK

SKU: 1143849

Alternatively Known As: Absolute encoder 58mm, PROFINET encoder, Multiturn encoder, Optical absolute encoder

Technical Specifications
  • Multiturn version
  • Mechanical design: through hollow shaft
  • Shaft diameter: 1/2 inch
  • Shaft characteristic: Front clamp
  • Connection: male and female connectors
  • Direction of connection: radial
  • Installation depth: 39 mm
  • Interface: PROFINET with Encoder Profile version 4.2
  • Measuring system: 18-bit optical singleturn and 16-bit mechanical multiturn
  • Dimensions (H x L x W): 58mm x 39mm x 58mm
  • Weight: 0.5 kg
Key Features
  • Radial and axial type with shaft and flange variants
  • Low installation depth of only 39 mm
  • PROFINET interface with Encoder Profile V 4.2
  • Parameterization via TIA Portal or SICK Engineering Tool
  • Configuration and visualization of numerous diagnostic data via SICK Engineering Tool
  • Precise 18-bit optical measuring system and mechanical 16-bit multiturn stage
Professional Installation Requirements
  • Professional installation by a qualified technician or electrician is recommended to ensure proper integration and configuration.
Applications
  • Industrial automation for precise movement monitoring
  • Process control systems requiring accurate position feedback
  • Integration in tight installation spaces due to low installation depth
  • Condition-based system maintenance with diagnostic data
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables condition-based maintenance reducing unnecessary downtime and resource use
  • Supports efficient process control improving energy and resource efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK ANS/ANM58 absolute encoder is available now for immediate purchase. Ideal for industrial automation and precise motion control applications.
