Absolute Encoder ANS/ANM58 | Multiturn Version | PROFINET Interface | 18-Bit Optical Measurement | by SICK
The ANS/ANM58 absolute encoder is designed for industrial automation, featuring a multiturn version with a PROFINET interface and precise 18-bit optical singleturn measurement. Ideal for applications requiring accurate position feedback and integration in tight spaces, this encoder supports condition-based maintenance and efficient process control, ensuring optimal performance in your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

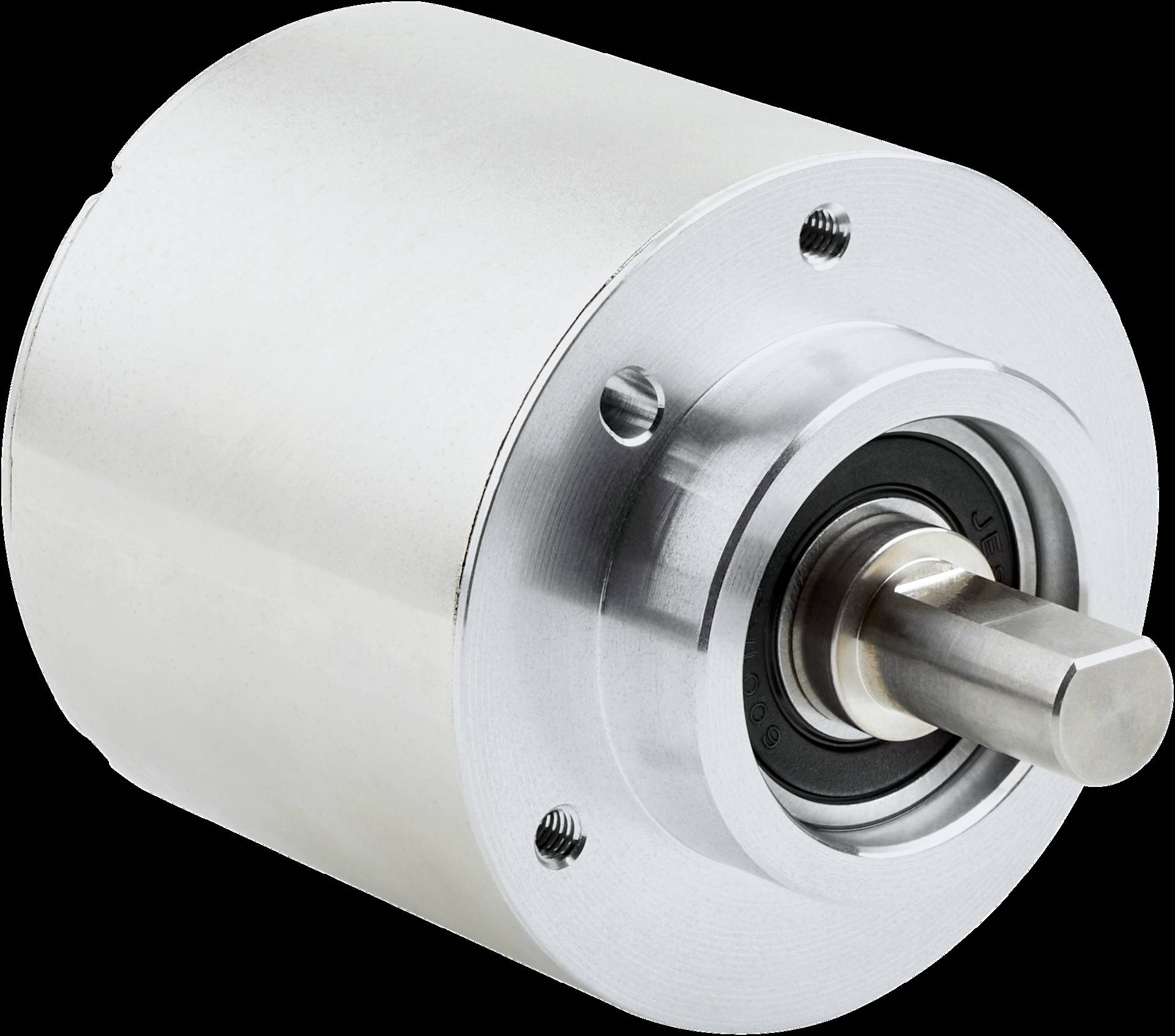

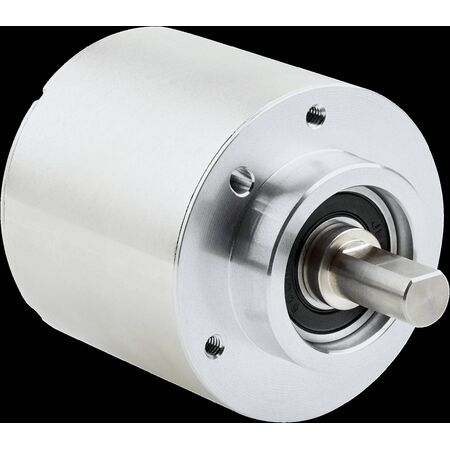

Product Name/Title: Absolute Encoder ANS/ANM58 | Multiturn Version | PROFINET Interface | 18-Bit Optical Measurement | by SICK
Brand: SICK
SKU: 1146129
Alternatively Known As: Absolute encoder, Multiturn encoder, PROFINET encoder, Optical encoder, Shaft encoder
Technical Specifications
- Multiturn version
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Connection: Male and female connectors
- Direction of connection: Axial
- Installation depth: 39 mm
- Interface: PROFINET with Encoder Profile version 4.2
- Measurement system: 18-bit optical singleturn and 16-bit mechanical multiturn
- Dimensions (H x L x W): 58mm x 39mm x 58mm
- Weight: 0.3 kg
Key Features
- Radial and axial type with shaft and flange variants
- Low installation depth of only 39 mm
- PROFINET interface with Encoder Profile V 4.2
- Parameterization via TIA Portal or SICK Engineering Tool
- Configuration and visualization of numerous diagnostic data via SICK Engineering Tool
- Precise 18-bit optical singleturn measuring system and mechanical 16-bit multiturn stage
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and configuration using TIA Portal or SICK Engineering Tool.
Applications
- Industrial automation for precise movement monitoring
- Process control systems requiring accurate position feedback
- Integration in tight installation spaces due to low installation depth
- Condition-based system maintenance with diagnostic data
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables condition-based maintenance reducing unnecessary downtime and resource use
- Supports efficient process control improving energy and resource efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK ANS/ANM58 absolute encoder is available now for immediate purchase. Ideal for industrial automation and precise motion control applications.
