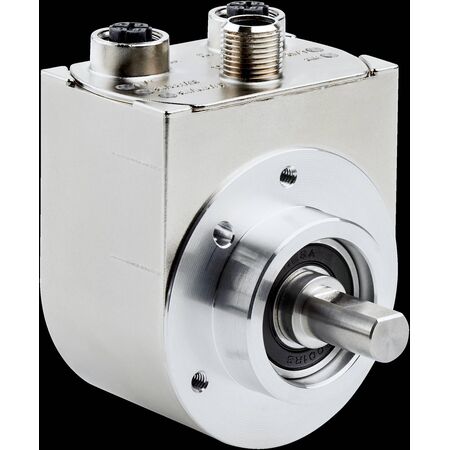

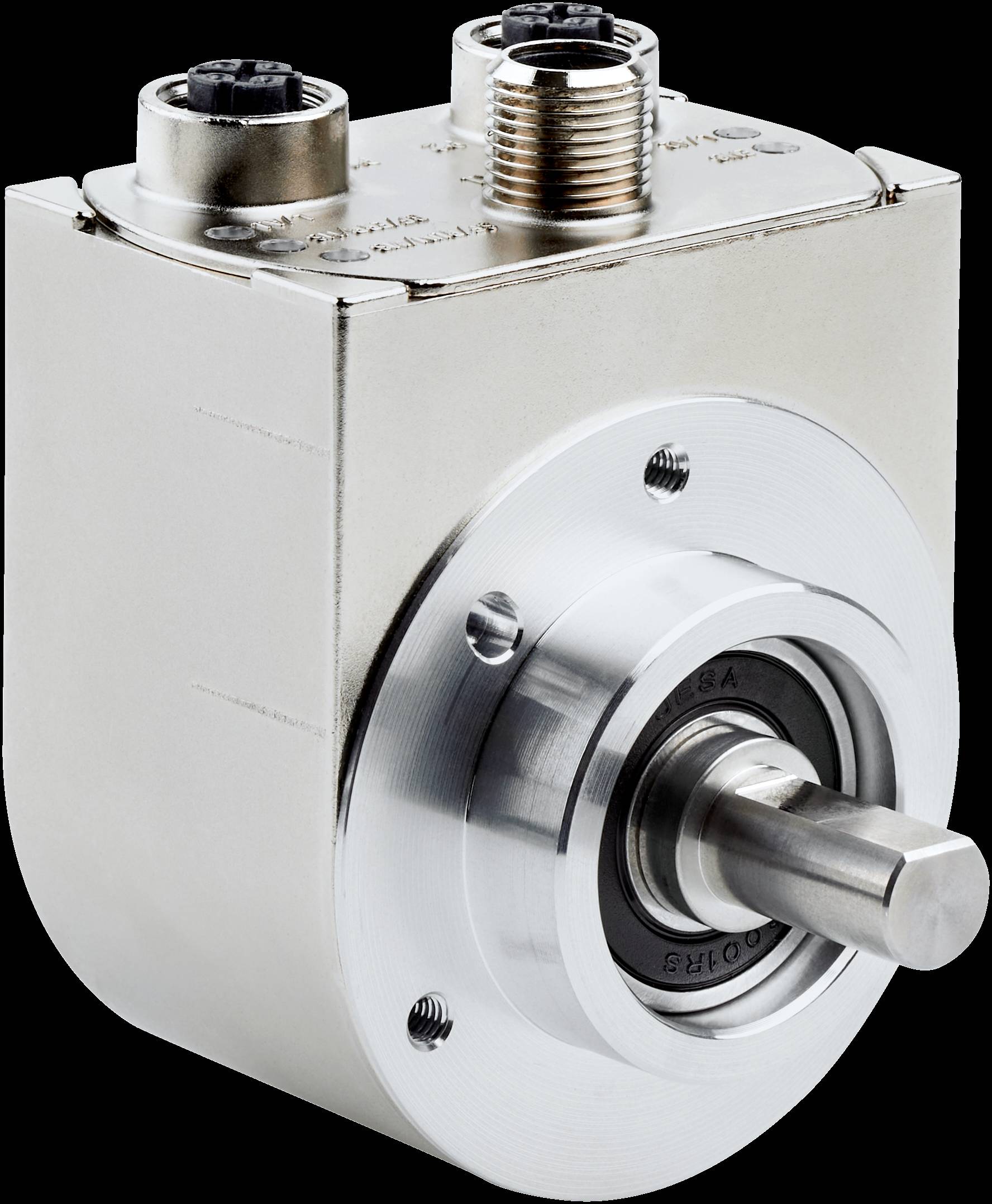

Absolute Encoder ANS/ANM58 | Multiturn & PROFINET Interface | 18-Bit Resolution | by SICK
The ANS/ANM58 Absolute Encoder is designed for industrial automation, featuring a multiturn design and a PROFINET interface for seamless integration. With an impressive 18-bit optical measuring system and a low installation depth of just 39 mm, it's perfect for applications requiring precise movement monitoring and accurate position feedback in tight spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ANS/ANM58 | Multiturn & PROFINET Interface | 18-Bit Resolution | by SICK
Brand: SICK
SKU: 1146527
Alternatively Known As: Absolute encoder, PROFINET encoder, multiturn encoder, optical encoder, position encoder
Technical Specifications
- Multiturn version
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Connection: Male and female connectors
- Direction of connection: Radial
- Installation depth: 39 mm
- Optical measuring system resolution: 18-bit singleturn
- Mechanical multiturn stage: 16-bit
- Interface: PROFINET with Encoder Profile version 4.2
- Supports IRT (Isochronous Real Time) function for synchronous processes
- Dimensions (H x L x W): 58mm x 39mm x 58mm
- Weight: 0.5 kg
Key Features
- Radial and axial type with shaft and flange variants
- Low installation depth of only 39 mm
- PROFINET interface with Encoder Profile V 4.2
- Parameterization via TIA Portal or SICK Engineering Tool
- Configuration and visualization of numerous diagnostic data via SICK Engineering Tool
- Precise 18-bit optical measuring system and mechanical 16-bit multiturn stage
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and configuration with control systems.
Applications
- Industrial automation for precise movement monitoring
- Process control systems requiring accurate position feedback
- Integration in machinery with tight installation spaces
- Condition-based system maintenance and diagnostics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables condition-based maintenance reducing unnecessary downtime and resource use
- Supports efficient process control improving energy and resource efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ANS/ANM58 Absolute Encoder is available now for immediate purchase. Ideal for industrial automation and process control applications requiring high precision and compact installation.
