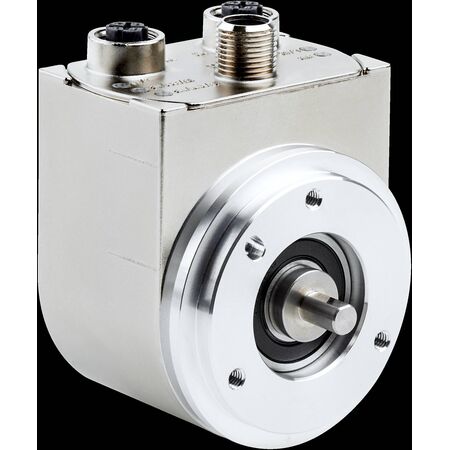

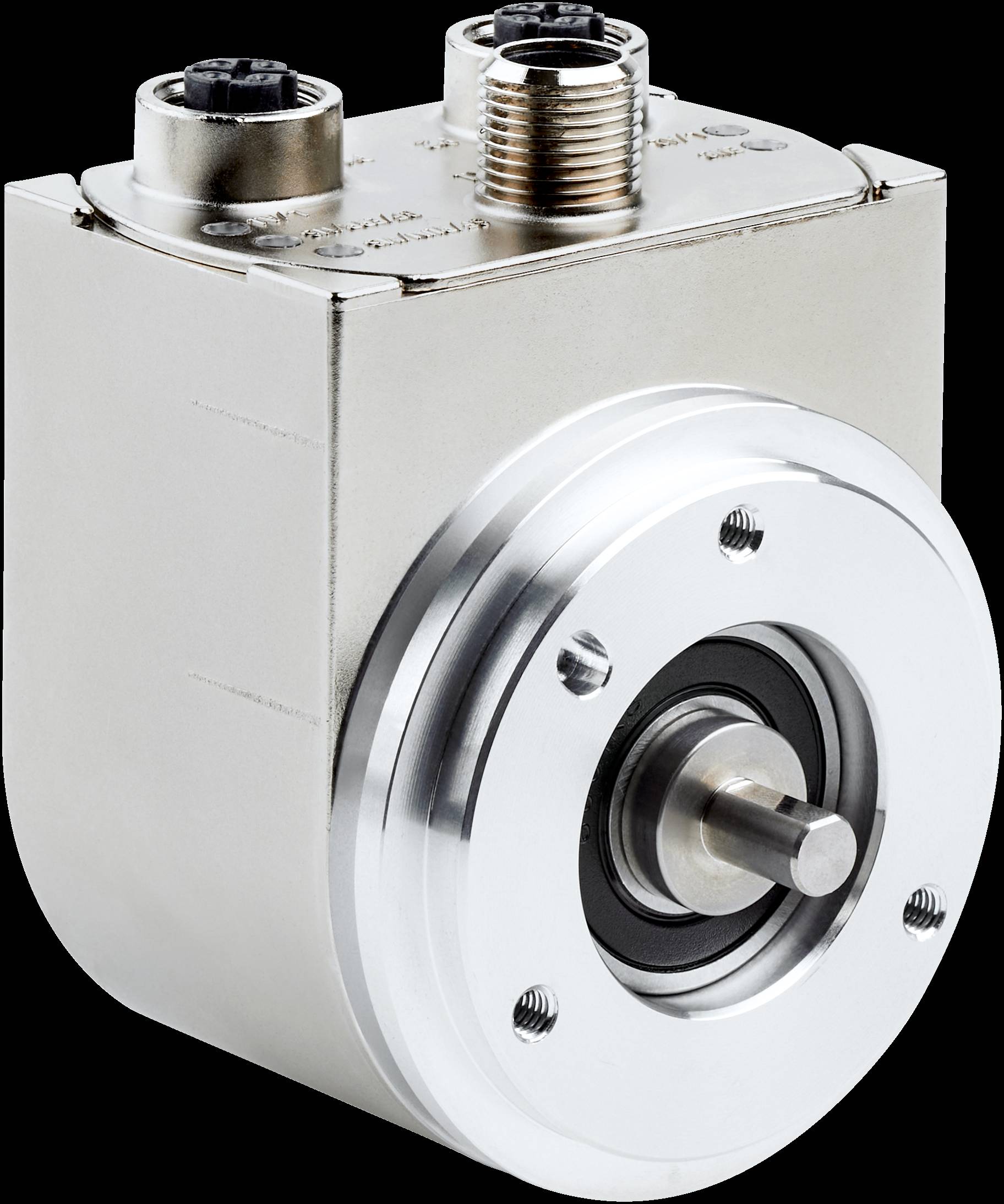

Absolute Encoder ANS/ANM58 | Multiturn Version | PROFINET Interface | 18-Bit Optical Resolution | by SICK
The ANS/ANM58 absolute encoder is designed for industrial automation, featuring a multiturn version with a PROFINET interface and precise 18-bit optical measuring system. Ideal for applications requiring accurate position feedback and compact installation, this encoder supports condition-based maintenance and efficient process control, making it perfect for tight spaces and demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ANS/ANM58 | Multiturn Version | PROFINET Interface | 18-Bit Optical Resolution | by SICK
Brand: SICK
SKU: 1148689
Alternatively Known As: Absolute encoder 58mm, PROFINET encoder, Multiturn encoder, Optical absolute encoder
Technical Specifications
- Multiturn version
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Connection: Male and female connectors
- Direction of connection: Radial
- Installation depth: 39 mm
- Optical singleturn measuring system: 18-bit resolution
- Mechanical multiturn stage: 16-bit resolution
- PROFINET interface with Encoder Profile version 4.2
- Supports Isochronous Real Time (IRT) function for synchronous processes
- Dimensions (H x L x W): 58mm x 39mm x 58mm
- Weight: 0.3 kg
Key Features
- Radial and axial type with shaft and flange variants
- Low installation depth of only 39 mm
- PROFINET interface with Encoder Profile V 4.2
- Parameterization via TIA Portal or SICK Engineering Tool
- Configuration and visualization of numerous diagnostic data via SICK Engineering Tool
- Precise 18-bit optical measuring system and mechanical 16-bit multiturn stage
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and configuration using TIA Portal or SICK Engineering Tool.
Applications
- Industrial automation for precise movement monitoring
- Process control systems requiring accurate position feedback
- Integration in tight installation spaces due to low installation depth
- Condition-based system maintenance with diagnostic data
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables condition-based maintenance reducing unnecessary replacements and waste
- Supports efficient process control improving energy usage in industrial applications
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ANS/ANM58 absolute encoder is available for immediate purchase, ideal for industrial motion control and process automation requiring high precision and compact installation.
