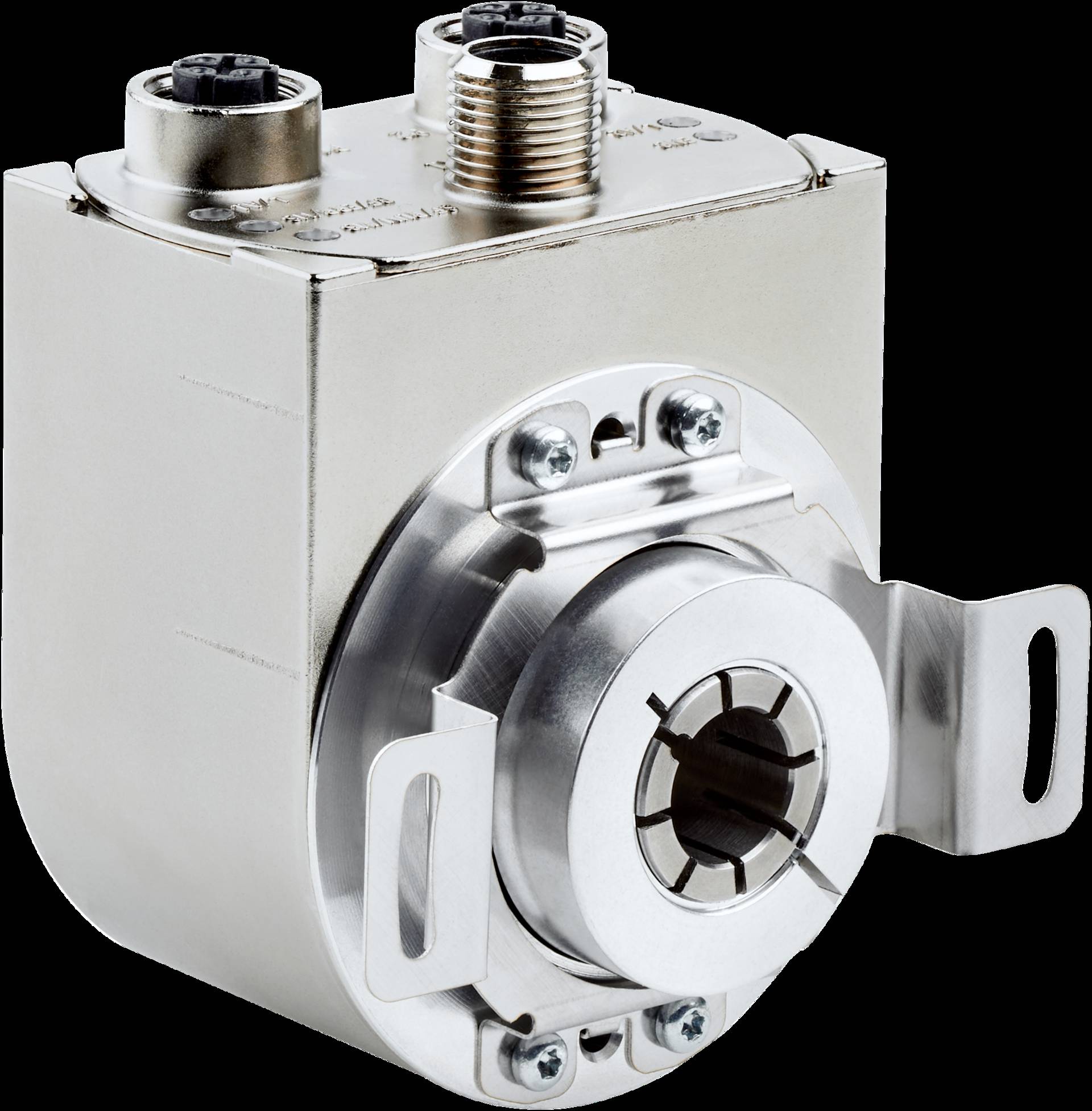

Absolute Encoder ANS/ANM58 | Multiturn Version | PROFINET Interface | 18-Bit Optical Measuring | by SICK
The ANS/ANM58 absolute encoder is designed for industrial automation and motion control, featuring a multiturn version with a PROFINET interface. With a compact design and precise 18-bit optical measuring system, it's perfect for tight installation environments and systems requiring synchronous process execution. Ideal for professionals seeking reliable performance in process control and movement monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ANS/ANM58 | Multiturn Version | PROFINET Interface | 18-Bit Optical Measuring | by SICK
Brand: SICK
SKU: 1148730
Alternatively Known As: Absolute encoder 58mm, PROFINET encoder, Multiturn encoder, Optical encoder with PROFINET, SICK ANM58 encoder
Technical Specifications
- Multiturn version
- Mechanical design: blind hollow shaft
- Shaft diameter: 14 mm
- Shaft characteristic: Front clamp
- Connection: male and female connectors
- Direction of connection: radial
- Installation depth: 39 mm
- Interface: PROFINET with Encoder Profile version 4.2
- Measuring system: 18-bit optical singleturn and 16-bit mechanical multiturn
- Dimensions (H x L x W): 58mm x 39mm x 58mm
- Weight: 0.5 kg
Key Features
- Radial and axial type with shaft and flange variants
- Low installation depth of only 39 mm
- PROFINET interface with Encoder Profile V 4.2
- Parameterization via TIA Portal or SICK Engineering Tool
- Configuration and visualization of numerous diagnostic data via SICK Engineering Tool
- Precise 18-bit optical measuring system and mechanical 16-bit multiturn stage
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation and motion control
- Process control and movement monitoring
- Tight installation environments requiring compact encoders
- Systems requiring synchronous process execution via IRT
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables condition-based system maintenance reducing downtime and resource waste
- Supports efficient process control improving energy and resource utilization
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ANS/ANM58 absolute encoder is available now for immediate purchase. Ideal for industrial automation and motion control applications requiring high precision and compact design.
