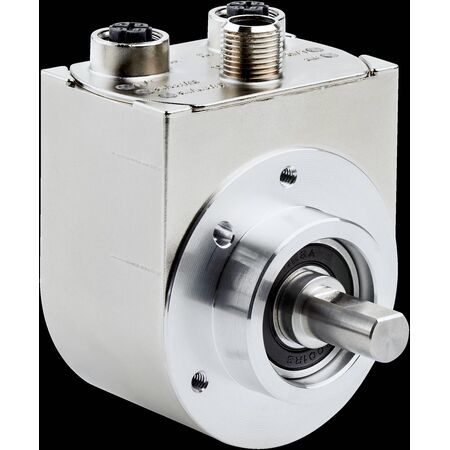

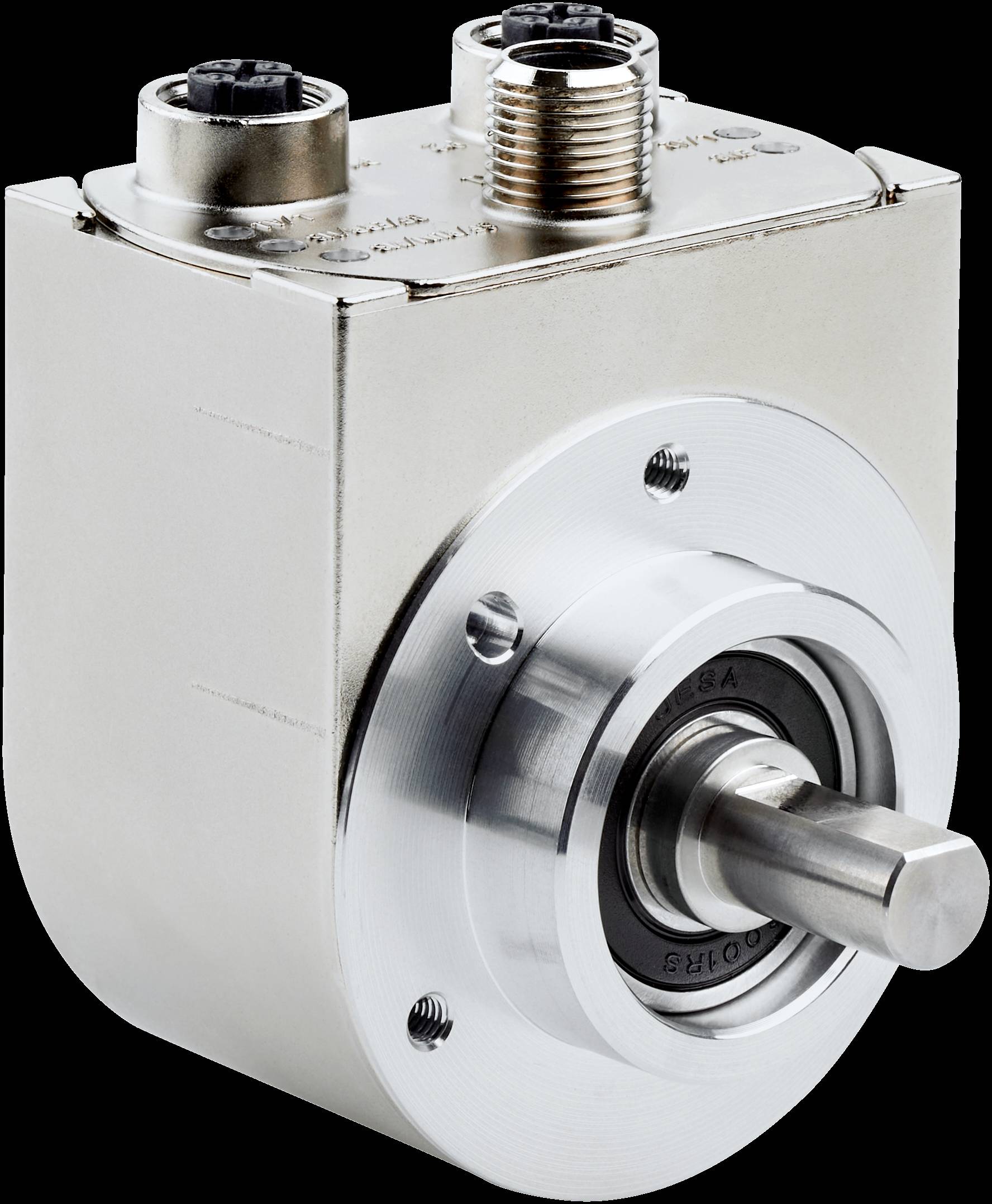

Absolute Encoder ANS/ANM58 | Multiturn Version | PROFINET Interface | 18-Bit Optical Measuring | by SICK

BRAND: SICK
SKU: 1152170
$2,326.50 List price: $2,924.10
+
The ANS/ANM58 absolute encoder is designed for industrial automation, featuring a multiturn version with a PROFINET interface and an 18-bit optical measuring system. Ideal for precise movement monitoring and process control, this encoder supports tight installation spaces with a low installation depth of just 39 mm, ensuring optimal performance and safety in various applications.

Product Name/Title: Absolute Encoder ANS/ANM58 | Multiturn Version | PROFINET Interface | 18-Bit Optical Measuring | by SICK

Brand: SICK

SKU: 1152170

Alternatively Known As: Absolute encoder 58mm, PROFINET encoder, multiturn encoder, optical absolute encoder

Technical Specifications
  • Multiturn version
  • Mechanical design: Solid shaft, face mount flange
  • Shaft diameter: 10 mm
  • Shaft length: 19 mm
  • Shaft characteristics: Round
  • Connection: Male and female connectors
  • Direction of connection: Radial
  • Installation depth: 39 mm
  • Interface: PROFINET with Encoder Profile version 4.2
  • Measuring system: 18-bit optical singleturn and 16-bit mechanical multiturn
  • Dimensions (H x L x W): 58mm x 39mm x 58mm
  • Weight: 0.3 kg
Key Features
  • Radial and axial type with shaft and flange variants
  • Low installation depth of only 39 mm
  • PROFINET interface with Encoder Profile V 4.2
  • Parameterization via TIA Portal or SICK Engineering Tool
  • Configuration and visualization of numerous diagnostic data via SICK Engineering Tool
  • Precise 18-bit optical measuring system and mechanical 16-bit multiturn stage
Professional Installation Requirements
  • Installation should be performed by qualified professionals familiar with PROFINET systems and encoder integration to ensure optimal performance and safety.
Applications
  • Industrial automation for precise movement monitoring
  • Process control systems requiring accurate position feedback
  • Integration in tight installation spaces due to low installation depth
  • Condition-based system maintenance with diagnostic data
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables condition-based maintenance reducing unnecessary downtime and resource use
  • Supports efficient process control improving energy usage in industrial applications
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK ANS/ANM58 absolute encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
