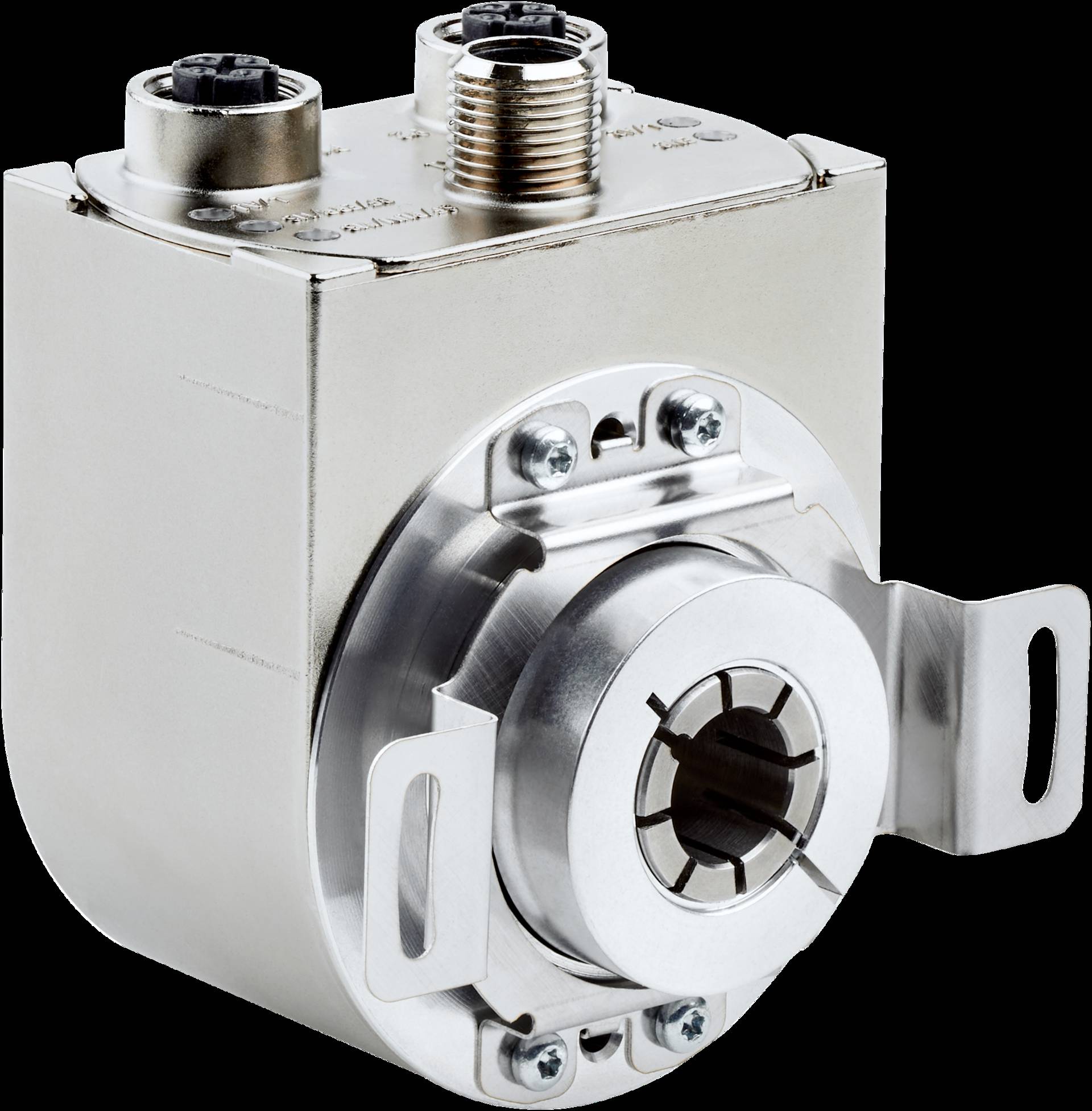

Absolute Encoder ANS/ANM58 | PROFINET Interface | 18-Bit Optical Resolution | Low Installation Depth | by SICK
The ANS/ANM58 absolute encoder is designed for industrial automation, featuring a PROFINET interface and an 18-bit optical singleturn resolution. With a low installation depth of just 39 mm, it's perfect for tight spaces and precise movement monitoring. Ideal for process control systems, this encoder supports condition-based maintenance and offers extensive diagnostic capabilities through the SICK Engineering Tool.
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ANS/ANM58 | PROFINET Interface | 18-Bit Optical Resolution | Low Installation Depth | by SICK
Brand: SICK
SKU: 1146525
Alternatively Known As: Absolute encoder 58mm, PROFINET encoder, multiturn encoder, optical encoder with PROFINET
- Singleturn version
- Mechanical design: blind hollow shaft
- Shaft diameter: 6 mm
- Shaft characteristic: Front clamp
- Connection: male and female connectors
- Direction of connection: radial
- Installation depth: 39 mm
- Interface: PROFINET with Encoder Profile version 4.2
- Resolution: 18-bit optical singleturn, 16-bit mechanical multiturn
- Dimensions (H x L x W): 58mm x 39mm x 58mm
- Weight: 0.3 kg
- Radial and axial type with shaft and flange variants
- Low installation depth of only 39 mm
- PROFINET interface with Encoder Profile V 4.2
- Parameterization via TIA Portal or SICK Engineering Tool
- Configuration and visualization of numerous diagnostic data via SICK Engineering Tool
- Precise 18-bit optical singleturn measuring system and mechanical 16-bit multiturn stage
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and configuration.
- Industrial automation for precise movement monitoring
- Process control systems requiring accurate position feedback
- Integration in tight installation spaces due to low installation depth
- Condition-based system maintenance with diagnostic data
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Enables condition-based maintenance reducing unnecessary downtime and resource use
- Supports efficient process control improving energy and resource efficiency
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
The SICK ANS/ANM58 absolute encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
