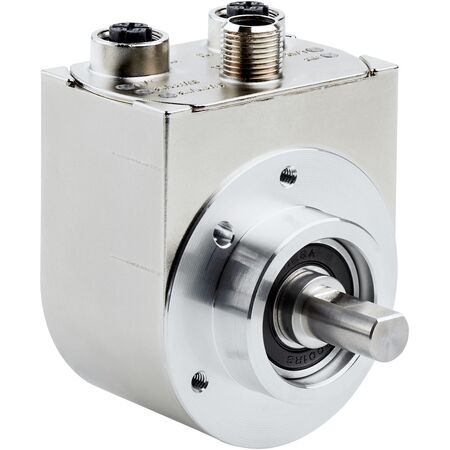

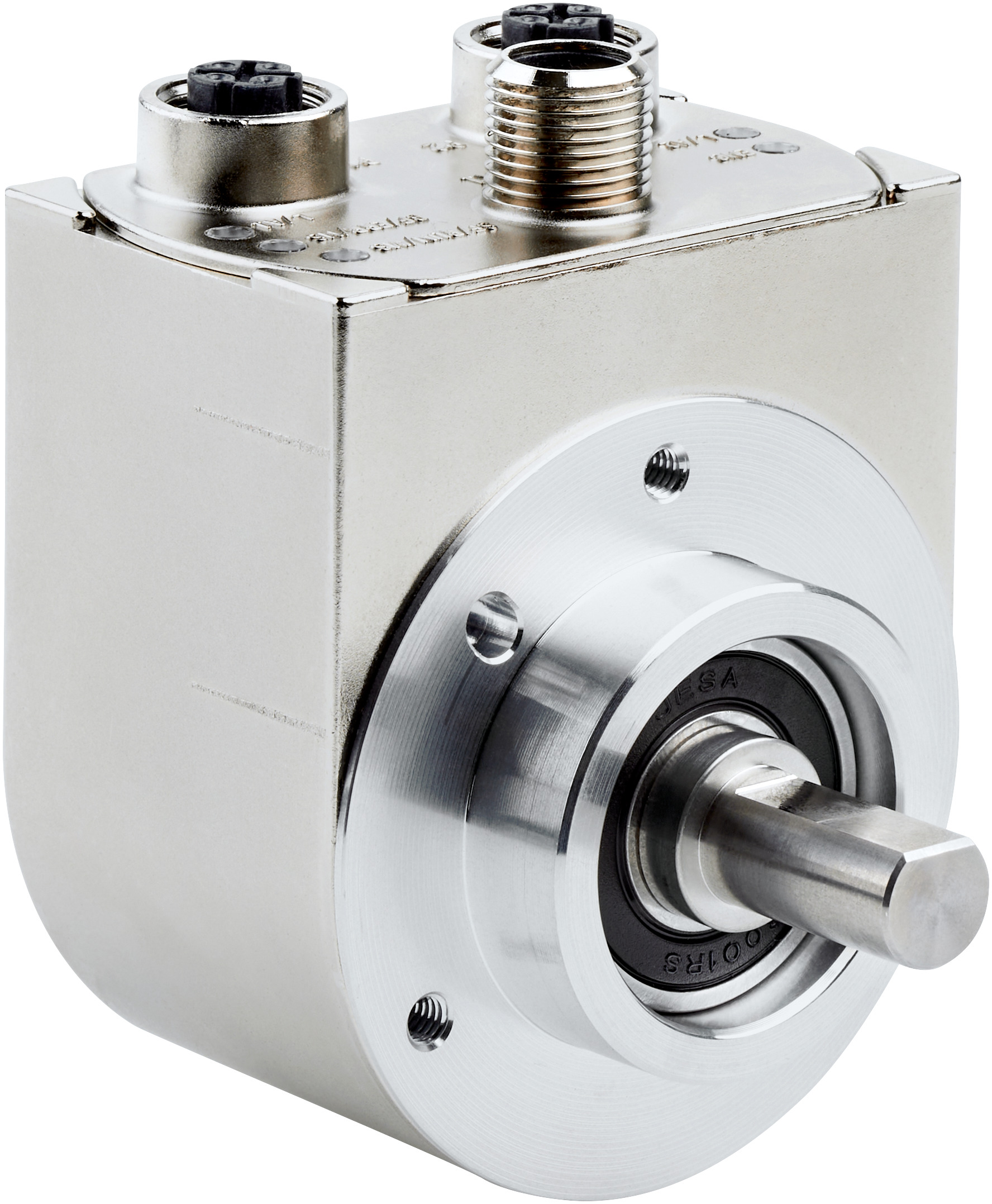

Absolute Encoder ANS58B-FENNA0000303000XX262144 | 262,144 Steps | PROFINET Interface | IP67 Rated | by SICK
The Absolute Encoder ANS58B-FENNA0000303000XX262144 offers high precision with 262,144 steps per revolution and an error limit of just 0.03°. Designed for industrial automation, this encoder features a robust mechanical design and PROFINET communication for seamless integration. Ideal for applications requiring precise position and speed measurement, it operates in extreme temperatures from -40 °C to +85 °C, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ANS58B-FENNA0000303000XX262144 | 262,144 Steps | PROFINET Interface | IP67 Rated | by SICK
Brand: SICK
SKU: 1154275
Alternatively Known As: Rotary Absolute Encoder, PROFINET Encoder, High Resolution Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 165 years (EN ISO 13849-1)
- Number of steps per revolution: 262,144 (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: PROFINET Version 2.3, Encoder profile V4.2
- Transmission medium: CAT-5e cable
- Initialization time: 5 s
- Cycle time: ≥ 1 ms
- Process data: Position, speed, encoder status (errors, warnings)
- Parameterising data: Steps per revolution, measuring range, preset, direction, speed filter, unit, round axis functionality
- Diagnostics data: Temperature, max speed, power-on counter, operating hours, motion counters, configurable limit values
- Connection type: Male connector M12 4-pin radial, Female connector M12 4-pin radial
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 3 W
- Reverse polarity and short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Zinc die-cast with copper-nickel coating
- Start up torque: 1.1 Ncm at +20 °C
- Operating torque: 0.5 Ncm at +20 °C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 45 gcm²
- Bearing lifetime: 30 x 10^9 revolutions
- Angular acceleration: ≤ 300,000 rad/s²
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 200 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Operating height: ≤ 3,000 m
- Dimensions (H x L x W): 58mm x 100mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Error limit of 0.03° and repeatability standard deviation of 0.002°
- PROFINET communication interface, Version 2.3 with encoder profile V4.2
- Robust mechanical design with solid shaft and face mount flange
- IP67 rated enclosure for protection against dust and water
- Wide operating temperature range from -40 °C to +85 °C
- Reverse polarity and short-circuit protection
- Status indication via LED
- Diagnostics data available including temperature, speed, power-on counter, and limit value monitoring
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the PROFINET interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high-resolution rotary position feedback
- Machine tools and manufacturing equipment
- Process control systems with PROFINET communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption of ≤ 3 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ANS58B-FENNA0000303000XX262144 absolute encoder is available for immediate purchase, ideal for industrial automation and precision position sensing applications.
