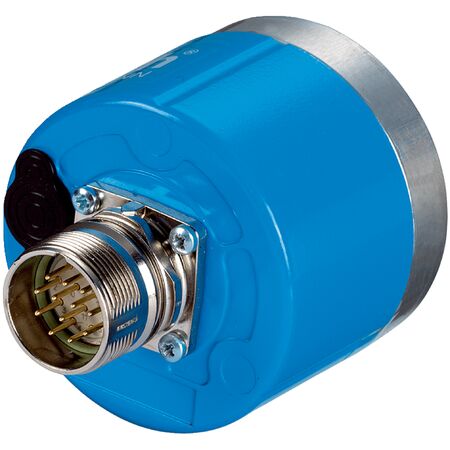

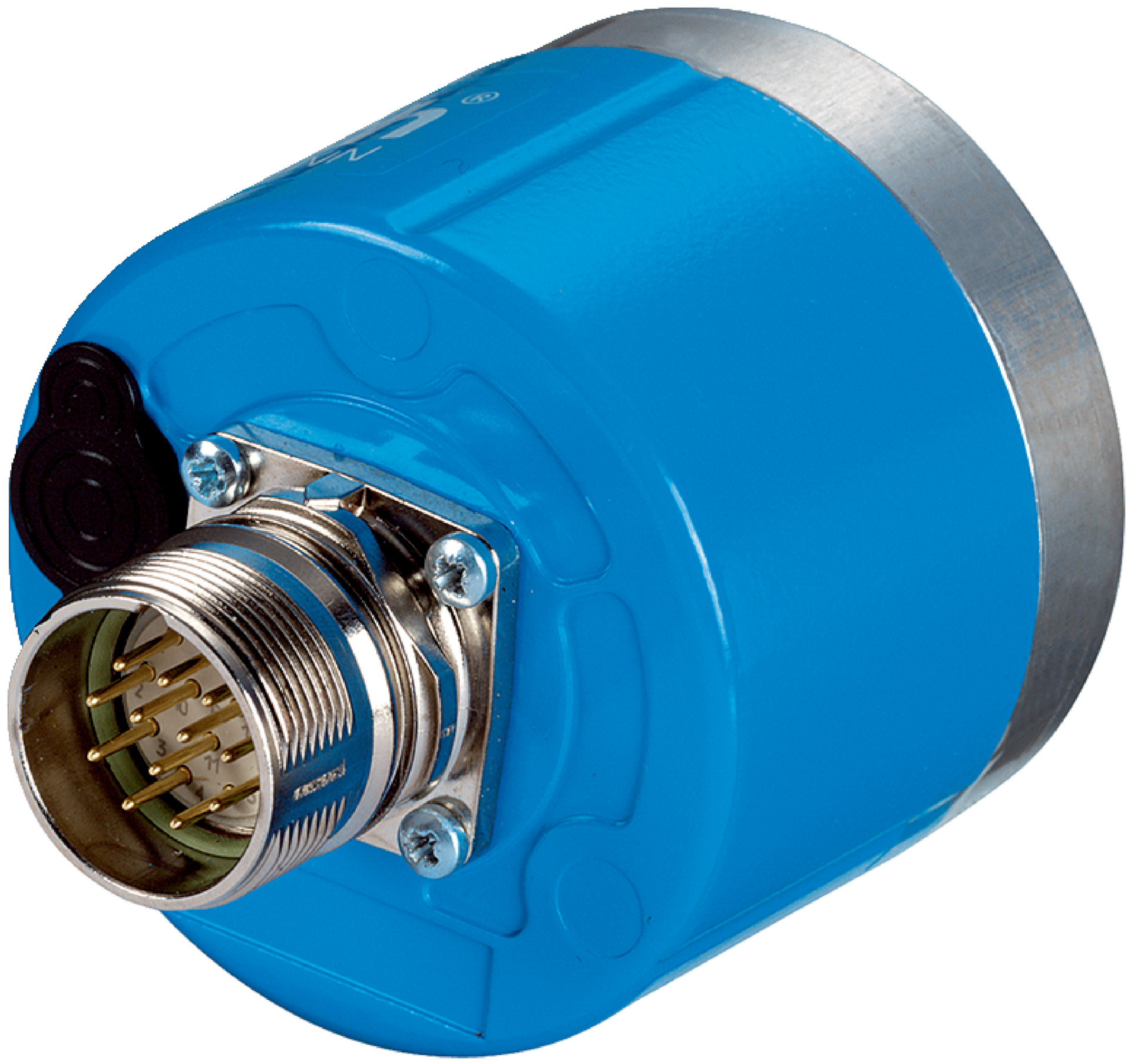

Absolute Encoder ARS60-A1B02048 | 2048 Steps/Rev | IP65 Rated | Low Measuring Deviation | by SICK
The Absolute Encoder ARS60-A1B02048 offers high precision with 2,048 steps per revolution and a low measuring step deviation of just 0.005°. Designed for industrial automation and robotics, this encoder features a robust aluminum die cast housing with an IP65 rating, ensuring durability in demanding environments. Ideal for applications requiring accurate position feedback, it operates within a temperature range of -20°C to +85°C, making it versatile for various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ARS60-A1B02048 | 2048 Steps/Rev | IP65 Rated | Low Measuring Deviation | by SICK
Brand: SICK
SKU: 1031417
Alternatively Known As: Absolute rotary encoder, SSI absolute encoder, ARS60 encoder, SICK position encoder, high resolution encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 2,048 (11 bit)
- Measuring step: 360° / number of steps
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Code sequence parameter adjustable: CW increasing when viewing clockwise shaft
- Measured value backlash: 0.005°
- Response threshold: 0.003°
- Connection type: Male connector, M23, 12-pin, axial
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Switching level of control inputs: Logic H = 0.7 x US, Logic L = 0 to 0.3 x US
- Actuation of set button: ≥ 100 ms
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm
- Shaft length: 10 mm
- Shaft characteristic: With flat
- Housing material: Aluminum die cast
- Start up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Moment of inertia of rotor: 48 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,048 steps per revolution (11 bit)
- Solid shaft with servo flange and 6 mm diameter
- Robust aluminum die cast housing with IP65 rating
- SSI communication interface with Gray code
- Low measuring step deviation of 0.005°
- High repeatability with standard deviation of 0.005°
- Operating temperature range from -20°C to +85°C
- Resistance to shocks up to 50 g and vibration up to 20 g
- Low operating torque of typically 0.2 Ncm
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Robotics requiring accurate shaft position feedback
- Servo motor control systems
- Machine tool positioning
- Conveyor and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with typical 60 mA operating current
- Robust construction minimizes environmental impact from damage and failure
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-A1B02048 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision positioning applications.
