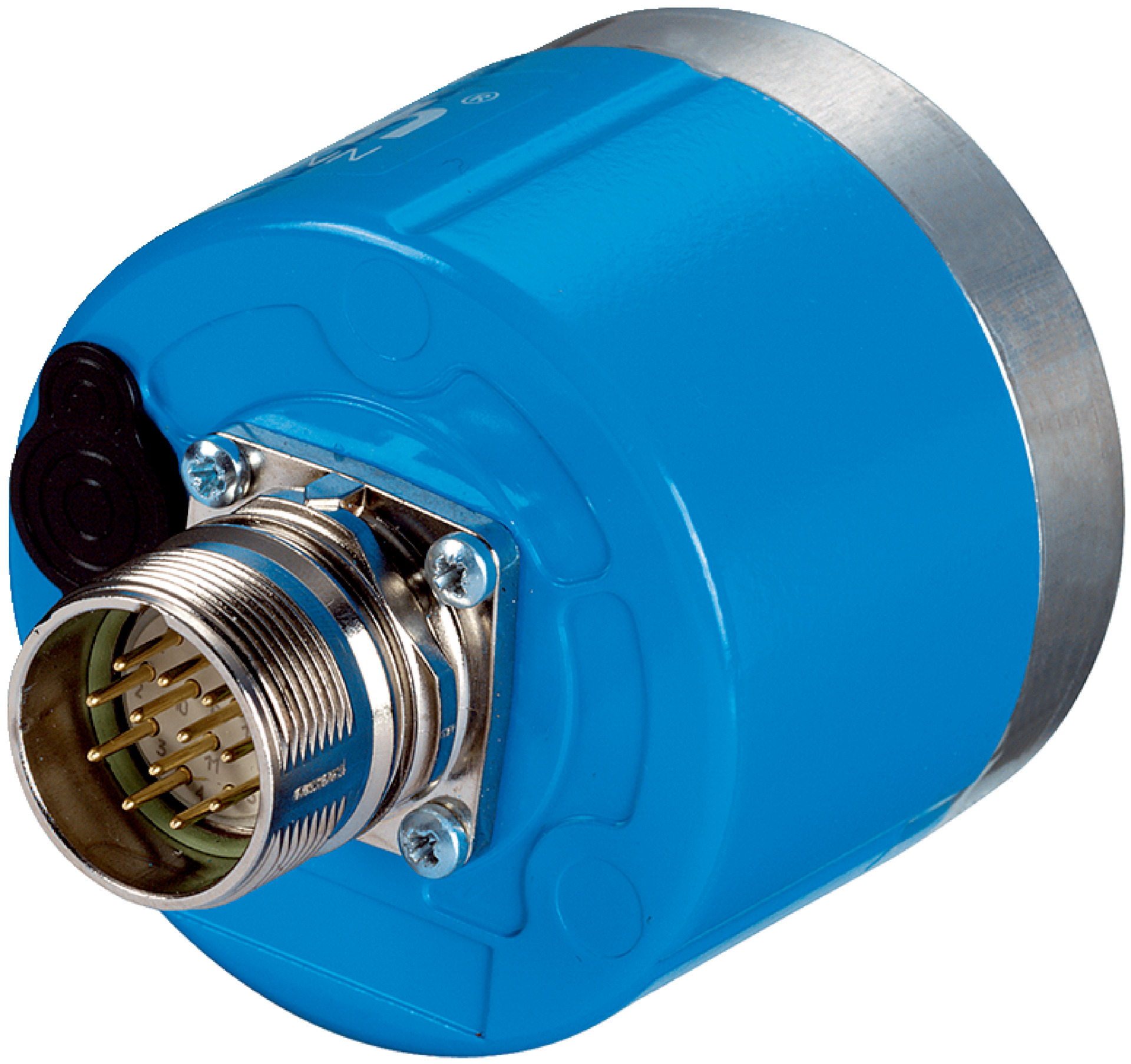

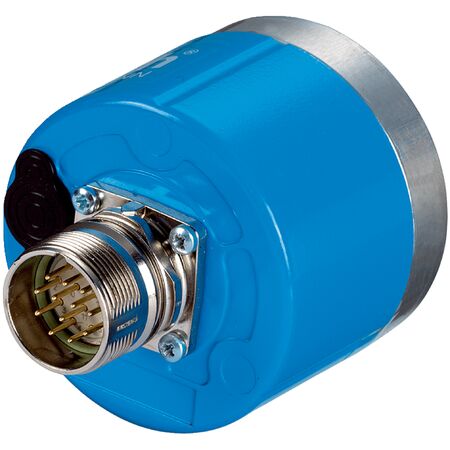

Absolute Encoder ARS60-A1B32768 | 32,768 Steps/Rev | IP65 Rated | High Resolution | by SICK
The Absolute Encoder ARS60-A1B32768 offers high precision with 32,768 steps per revolution, making it ideal for industrial automation and robotics. Built with a robust aluminum die cast housing and an IP65 rating, it ensures durability in harsh environments. With a wide operating temperature range from -20°C to +85°C and a low start-up torque, this encoder is perfect for applications requiring accurate position measurement and feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ARS60-A1B32768 | 32,768 Steps/Rev | IP65 Rated | High Resolution | by SICK
Brand: SICK
SKU: 1031505
Alternatively Known As: Absolute rotary encoder, SSI encoder, high resolution shaft encoder, industrial position sensor
Technical Specifications
- Resolution: 32,768 steps per revolution (15 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: typically 60 mA
- Connection type: Male M23, 12-pin axial connector
- Mechanical design: Solid shaft with flat, 6 mm diameter, 10 mm length
- Housing material: Aluminum die cast
- Start-up torque: typically 0.25 Ncm
- Operating torque: typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Moment of inertia of rotor: 48 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Enclosure rating: IP65
- EMC: compliant with EN 61000-6-2 and EN 61000-6-3
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution (15 bit)
- Robust aluminum die cast housing with IP65 rating
- Solid shaft with 6 mm diameter and flat for secure mounting
- Low start-up torque of typically 0.25 Ncm and operating torque of 0.2 Ncm
- SSI communication interface with Gray code output
- High repeatability with standard deviation of 0.005°
- Wide operating temperature range from -20°C to +85°C
- Resistance to shocks up to 50 g and vibration up to 20 g
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate shaft angle detection
- Machine tools requiring high resolution feedback
- Servo motor feedback systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with typical operating current of 60 mA
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributors.
Available Now
The SICK ARS60-A1B32768 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
