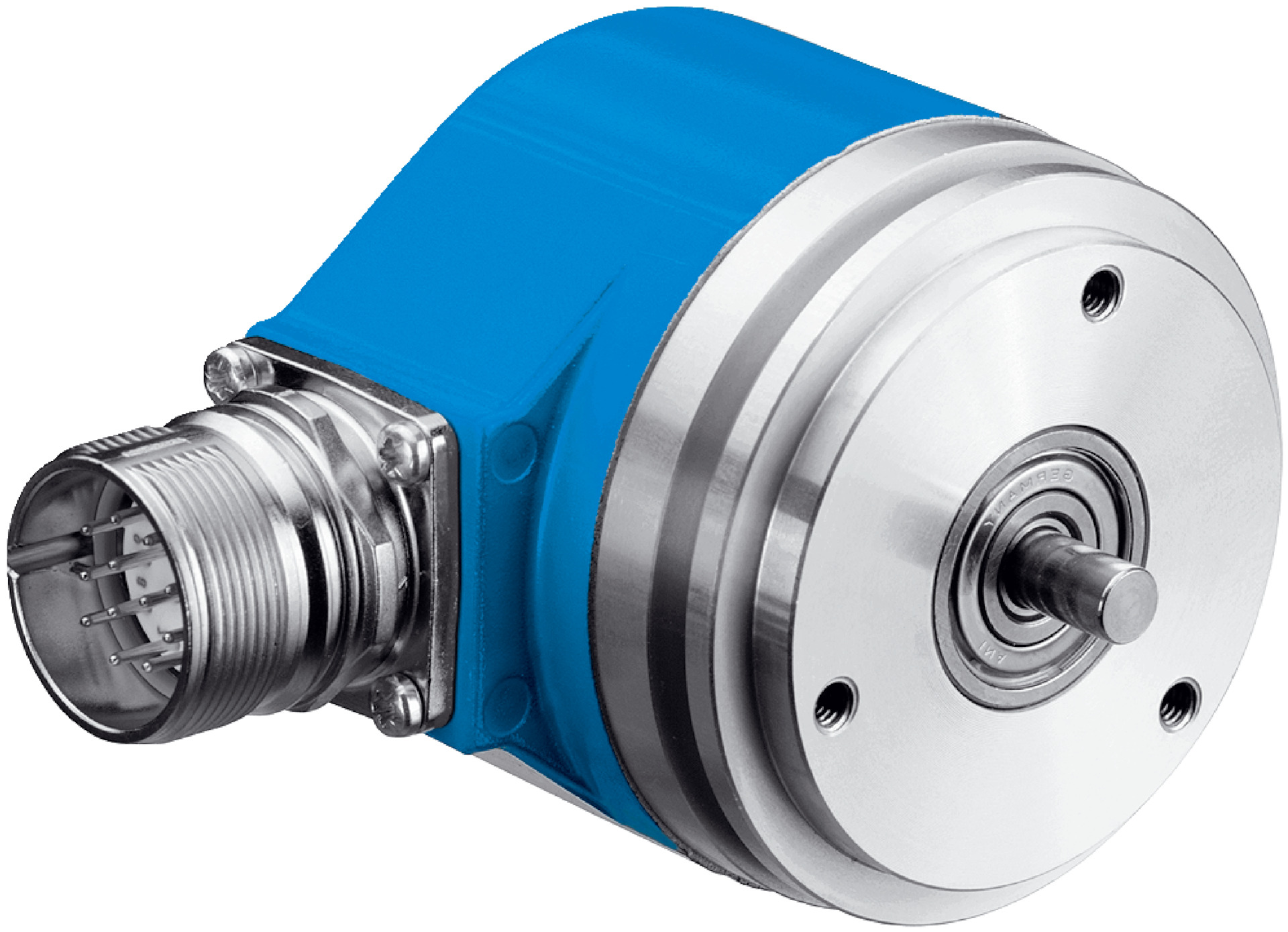

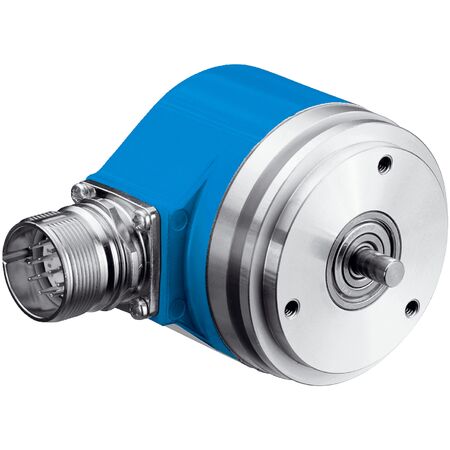

Absolute Encoder ARS60-F1A08192 | 8192 Steps/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
The Absolute Encoder ARS60-F1A08192 features a high resolution of 8,192 steps per revolution, making it ideal for precise position and speed measurement in industrial automation. With an IP65 rated enclosure for dust and water protection, this encoder is built for reliability in harsh environments. Its robust aluminum housing and low operating torque ensure durability and efficiency, perfect for robotics and safety-related motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ARS60-F1A08192 | 8192 Steps/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1031620
Alternatively Known As: Absolute rotary encoder, high resolution encoder, industrial position sensor, SICK ARS60 encoder
Technical Specifications
- Resolution: 8,192 steps per revolution (13 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Gray code
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male M23, 21-pin radial connector
- Mechanical design: Solid shaft with flat, 6 mm diameter, 10 mm length
- Housing material: Aluminum die cast
- Start up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 8,192 steps per revolution (13 bit)
- Solid shaft with servo flange and 6 mm diameter
- Robust aluminum die cast housing
- IP65 rated enclosure for dust and water protection
- Low operating torque of typically 0.2 Ncm
- High operating speed up to 10,000 min⁻¹ without shaft seal
- Gray code output with adjustable code sequence
- Male M23 21-pin radial connector
- Wide operating temperature range from -20°C to +85°C
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Safety-related motion control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with typical 90 mA operating current
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-F1A08192 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related motion control applications.
