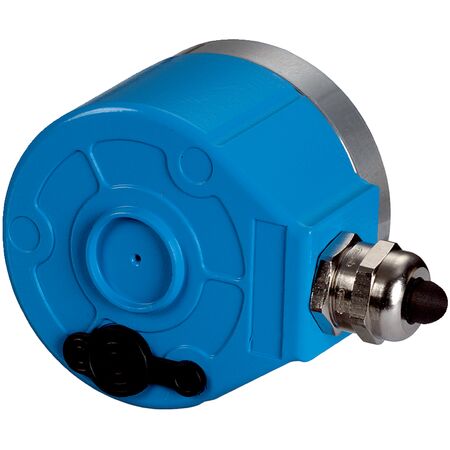

Absolute Encoder ARS60-F4L00360 | 360 Steps/Rev | IP66 Rated | Robust Aluminum Housing | by SICK
The Absolute Encoder ARS60-F4L00360 offers high precision with 360 steps per revolution, making it ideal for industrial automation and robotics applications. With a robust aluminum housing and an IP66 rating, it withstands harsh environments while providing reliable position and speed measurement. Designed for safety-related monitoring, this encoder ensures optimal performance in various machinery setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ARS60-F4L00360 | 360 Steps/Rev | IP66 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1037964
Alternatively Known As: Rotary encoder, Absolute rotary encoder, Position encoder, SICK ARS60 encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Max resolution: 360 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: 22-wire cable, radial, 3 m length
- Shaft diameter: 10 mm with flat
- Operating speed: up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP66
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 360 steps per revolution
- Gray code type with adjustable code sequence parameter
- Solid shaft with face mount flange and flat shaft characteristic
- Robust aluminum die cast housing with IP66 rating
- Wide operating temperature range from -20°C to +85°C
- High resistance to shock (50 g) and vibration (20 g)
- Low operating torque and start-up torque
- Long bearing lifetime and high angular acceleration capability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure safety and optimal performance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Position and speed measurement in machinery
- Safety-related monitoring applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK ARS60-F4L00360 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
