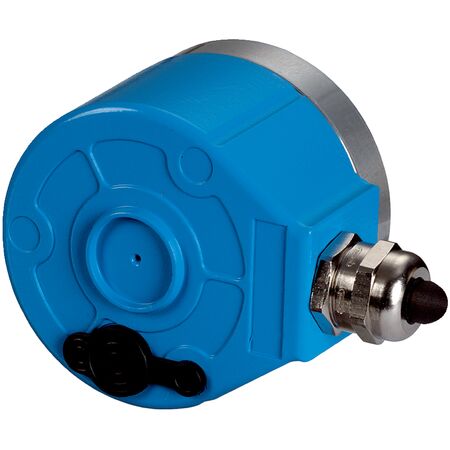

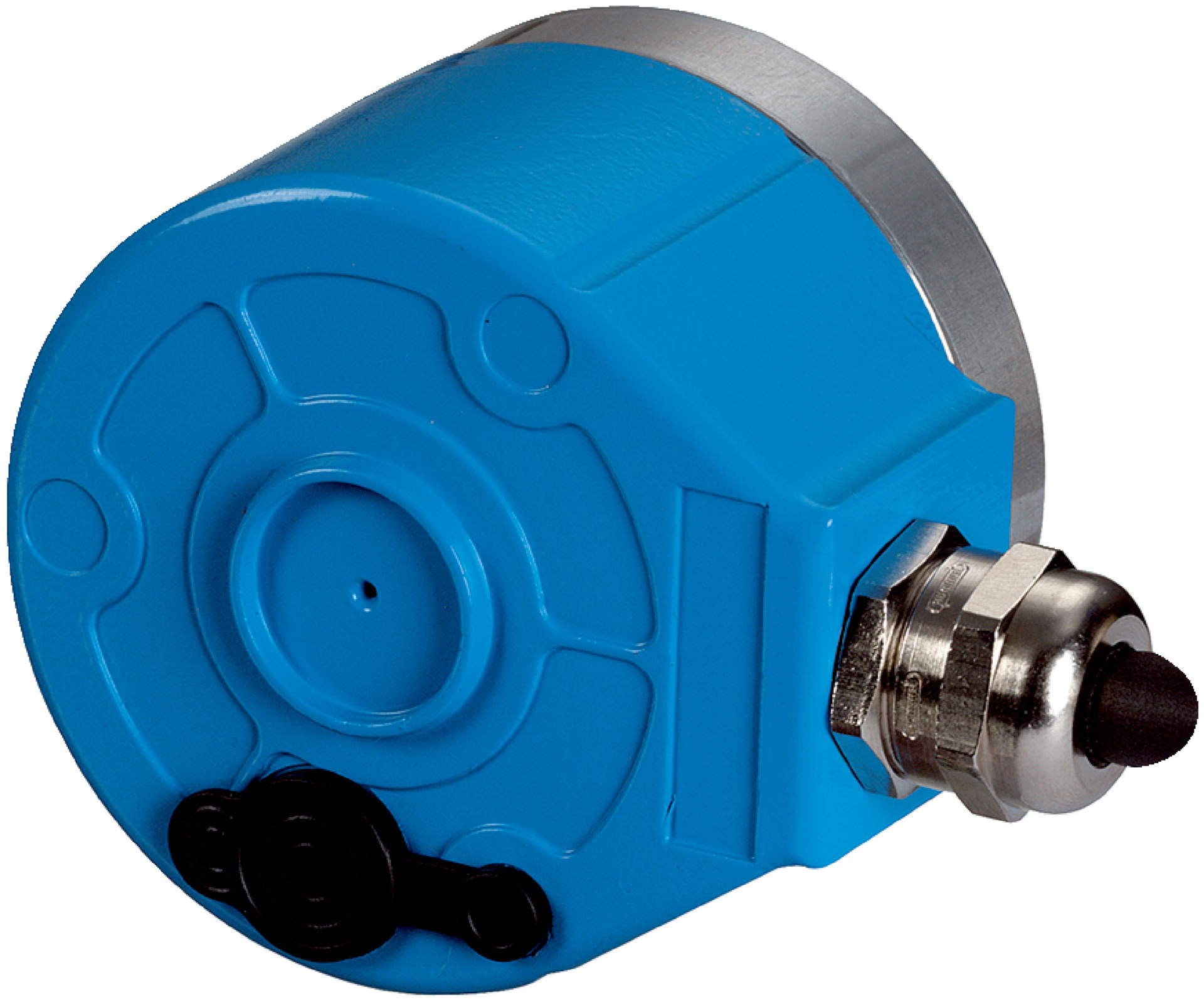

Absolute Encoder ARS60-F4M04096 | 4096 Steps/Rev | IP66 Protection | by SICK
The Absolute Encoder ARS60-F4M04096 offers high precision with 4,096 steps per revolution, making it ideal for industrial automation and robotics applications. With a robust aluminum die-cast housing and IP66 protection, it withstands harsh environments while providing reliable position feedback. Designed for professionals, this encoder ensures optimal performance in machine tools and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ARS60-F4M04096 | 4096 Steps/Rev | IP66 Protection | by SICK
Brand: SICK
SKU: 1034388
Alternatively Known As: Absolute rotary encoder, high resolution encoder, shaft encoder, position encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 4,096 (12 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Cable, 22-wire, radial, 5 m
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Moment of inertia of rotor: 54 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- Solid shaft with 10 mm diameter and flat for secure mounting
- Robust aluminum die-cast housing with IP66 protection
- Low start-up torque of typically 0.4 Ncm and operating torque of 0.3 Ncm
- Operating temperature range from -20°C to +85°C
- High resistance to shock (50 g) and vibration (20 g)
- Parallel data world communication interface with Gray code
- Cable connection with 22 wires, 5 m length
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate shaft position feedback
- Machine tools requiring high-resolution angular measurement
- Conveyor systems and material handling equipment
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption (typ. 90 mA)
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-F4M04096 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision position sensing applications.
