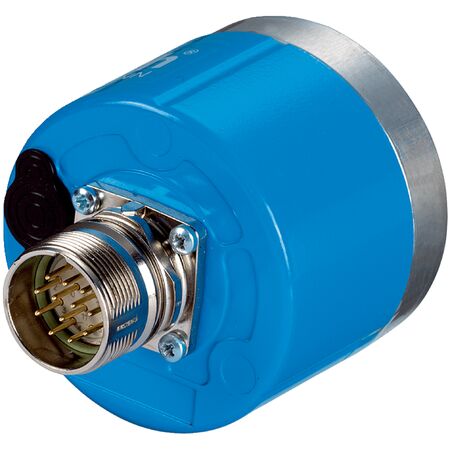

Absolute Encoder ARS60-FAB00256 | 256 Steps/Rev | IP65 Protection | Blind Hollow Shaft | by SICK
The Absolute Encoder ARS60-FAB00256 offers high precision with 256 steps per revolution, making it ideal for industrial automation and control systems. Built with a robust aluminum die cast housing and IP65 protection, it ensures durability in harsh environments. With a low start-up torque and high resistance to shocks and vibrations, this encoder is perfect for robotics, machine tool positioning, and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ARS60-FAB00256 | 256 Steps/Rev | IP65 Protection | Blind Hollow Shaft | by SICK
Brand: SICK
SKU: 1035856
Alternatively Known As: Absolute rotary encoder, rotary position sensor, angular encoder, industrial encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Max resolution: 256 steps per revolution (8 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, axial
- Mechanical design: Blind hollow shaft, 15 mm diameter
- Housing material: Aluminum die cast
- Start up torque: Typically 0.6 Ncm
- Operating torque: Typically 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Enclosure rating: IP65
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 256 steps per revolution (8 bit)
- Robust aluminum die cast housing with IP65 protection
- Blind hollow shaft with 15 mm diameter and front clamp
- Low start-up torque of typically 0.6 Ncm and operating torque of 0.4 Ncm
- Operating speed up to 3,000 min⁻¹
- High resistance to shocks (50 g) and vibration (20 g)
- Parallel data world communication interface with Gray code
- Fast initialization time of 80 ms
- Long bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK ARS60-FAB00256 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision positioning applications.
