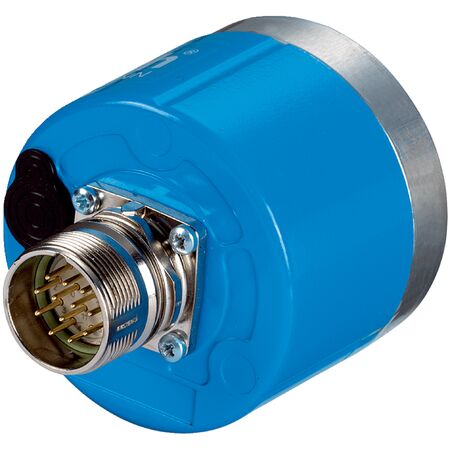

Absolute Encoder ARS60-FAB00360 | 360 Steps/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
The Absolute Encoder ARS60-FAB00360 offers high precision with 360 steps per revolution, making it ideal for industrial automation and motion control applications. Built with a robust aluminum die cast housing and an IP65 rating, it ensures durability and reliability in harsh environments. With a wide operating temperature range from -20°C to +85°C, this encoder is perfect for various applications including robotics and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ARS60-FAB00360 | 360 Steps/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1034473
Alternatively Known As: Rotary encoder, Absolute rotary encoder, Position encoder, SICK ARS60 encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Max resolution: 360 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typical 90 mA
- Connection type: Male connector, M23, 21-pin, axial
- Mechanical design: Blind hollow shaft, 15 mm shaft diameter
- Housing material: Aluminum die cast
- Start up torque: Typical 0.6 Ncm
- Operating torque: Typical 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Enclosure rating: IP65
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 360 steps per revolution
- Gray code type with adjustable code sequence parameter
- Robust aluminum die cast housing with IP65 rating
- Blind hollow shaft with front clamp shaft design
- Low start-up torque (0.6 Ncm) and operating torque (0.4 Ncm)
- Operating temperature range from -20°C to +85°C
- High resistance to shock (50 g) and vibration (20 g)
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption (typical 90 mA operating current) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-FAB00360 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
