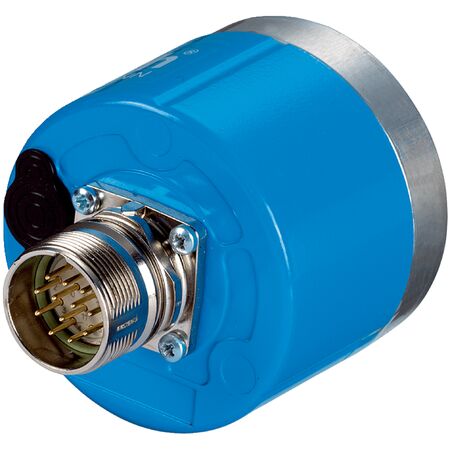

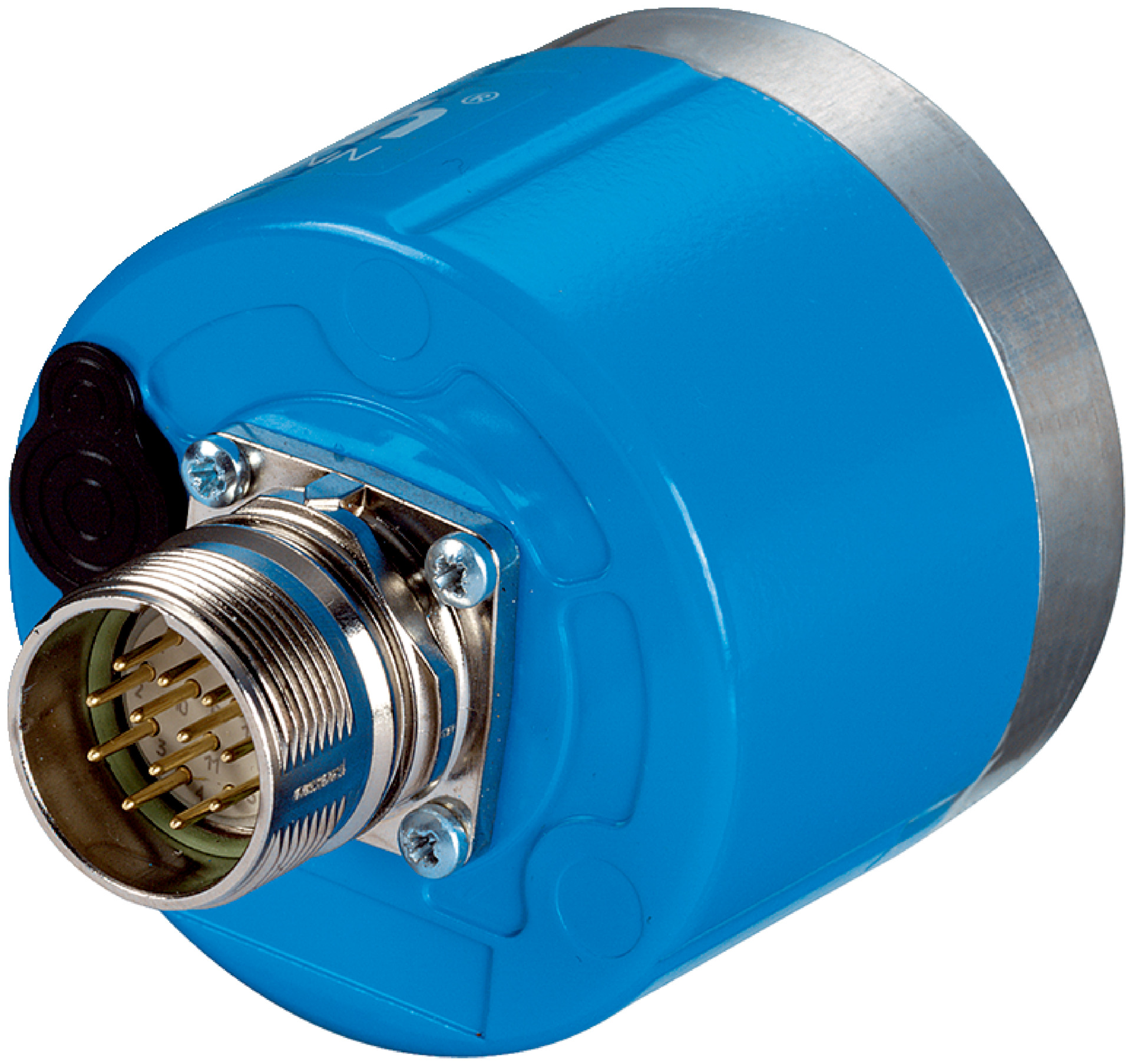

Absolute Encoder ARS60-FAB32767 | 32,767 Steps/Rev | IP65 Enclosure | by SICK
The Absolute Encoder ARS60-FAB32767 offers high precision with up to 32,767 steps per revolution, making it ideal for industrial automation and robotics applications. With a robust aluminum die cast housing and an IP65 enclosure rating, it ensures durability and reliability in harsh environments. Designed for professionals, this encoder features a blind hollow shaft and a low operating torque, providing exceptional performance in motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ARS60-FAB32767 | 32,767 Steps/Rev | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1032610
Alternatively Known As: Absolute rotary encoder, high resolution encoder, industrial position sensor, SICK ARS60 encoder
Technical Specifications
- Maximum resolution: 32,767 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Code type: Gray code
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, axial
- Mechanical design: Blind hollow shaft with front clamp
- Shaft diameter: 15 mm
- Start-up torque: Typically 0.6 Ncm
- Operating torque: Typically 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Enclosure rating: IP65
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with up to 32,767 steps per revolution
- Blind hollow shaft mechanical design with 15 mm shaft diameter
- Robust aluminum die cast housing with IP65 enclosure rating
- Low start-up torque (0.6 Ncm) and operating torque (0.4 Ncm)
- Fast initialization time of 80 ms
- Parallel data world communication interface with Gray code
- High repeatability with standard deviation of 0.005°
- Wide operating temperature range from -20°C to +85°C
- Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder mounting and electrical connections to ensure proper alignment and secure connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Safety-related monitoring and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with typical operating current of 90 mA
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-FAB32767 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring high precision position feedback.
