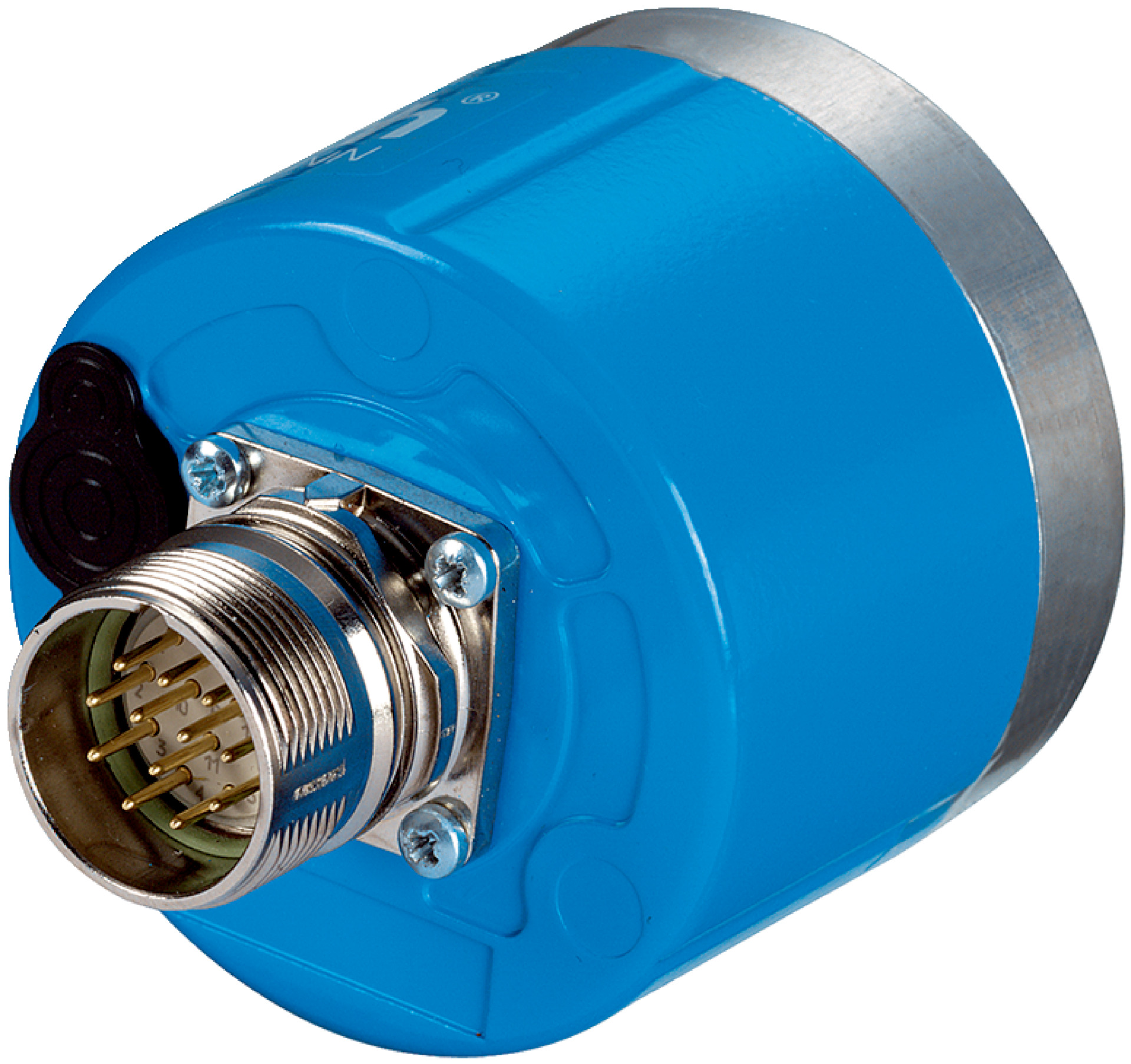

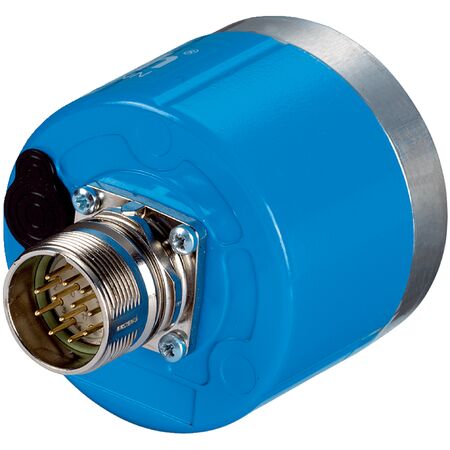

Absolute Encoder ARS60-G1B00720 | 720 Steps/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
The Absolute Encoder ARS60-G1B00720 features a high resolution of 720 steps per revolution, making it ideal for precision measurement in industrial automation and control systems. With an IP65 rated enclosure, it offers robust protection against dust and water, ensuring reliable performance in challenging environments. Designed for easy integration, this encoder is perfect for robotics and servo motor feedback applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ARS60-G1B00720 | 720 Steps/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1217394
Alternatively Known As: Absolute rotary encoder, position encoder, shaft encoder, industrial encoder
Technical Specifications
- Resolution: 720 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, axial
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Start-up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP65
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 720 steps per revolution
- Gray code, trimmed with adjustable code sequence parameter
- Solid shaft with servo flange and flat shaft characteristic
- Robust aluminum die cast housing
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -20°C to +85°C
- Low start-up and operating torque
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in machinery
- Precision measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ARS60-G1B00720 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
