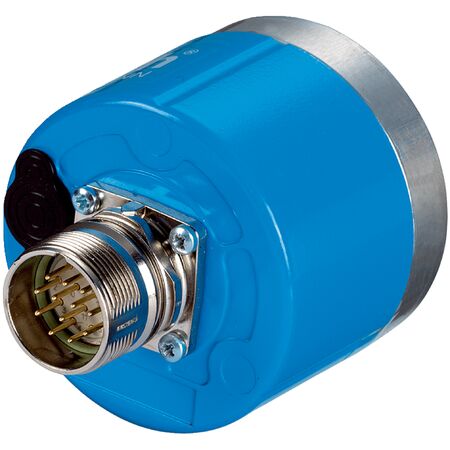

Absolute Encoder ARS60-GAB00720 | 720 Steps/Rev | IP65 Rated | Blind Hollow Shaft Design | by SICK

BRAND: SICK
SKU: 1223272
$2,260.80 List price: $2,841.70
+ −
30 Days Return Electricians Unlock Trade Access
The Absolute Encoder ARS60-GAB00720 offers high precision with 720 steps per revolution, making it ideal for industrial automation and precision measurement applications. With a robust aluminum die cast housing and an IP65 rating, this encoder is built to withstand harsh environments while providing reliable performance. Its fast initialization time of 80 ms and low operating torque ensure efficient operation in robotics and motion control systems.

Product Name/Title: Absolute Encoder ARS60-GAB00720 | 720 Steps/Rev | IP65 Rated | Blind Hollow Shaft Design | by SICK

Brand: SICK

SKU: 1223272

Alternatively Known As: Rotary encoder, Absolute rotary encoder, Angular position sensor, Industrial encoder

Technical Specifications
  • Maximum resolution: 720 steps per revolution
  • Measuring step: 360° divided by number of steps
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: Parallel data world
  • Initialization time: 80 ms
  • Code type: Gray, trimmed
  • Shaft diameter: 15 mm
  • Mechanical design: Blind hollow shaft with front clamp
  • Housing material: Aluminum die cast
  • Start-up torque: 0.6 Ncm
  • Operating torque: 0.4 Ncm
  • Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
  • Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: up to 3000 min⁻¹
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Operating temperature range: -20°C to +85°C
  • Storage temperature range: -40°C to +100°C
  • Enclosure rating: IP65
  • Supply voltage: 10 to 32 V
  • Operating current: typically 90 mA
  • Connection type: Male connector, M23, 21-pin, axial
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 720 steps per revolution
  • Blind hollow shaft mechanical design with 15 mm shaft diameter
  • Robust aluminum die cast housing with IP65 rating
  • Low start-up torque (0.6 Ncm) and operating torque (0.4 Ncm)
  • High repeatability with standard deviation of 0.005°
  • Fast initialization time of 80 ms
  • Parallel data world communication interface
  • Wide operating temperature range from -20°C to +85°C
  • High resistance to shocks (50 g) and vibration (20 g)
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Precision measurement and positioning
  • Machine tool feedback systems
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption electronics contribute to energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK ARS60-GAB00720 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
