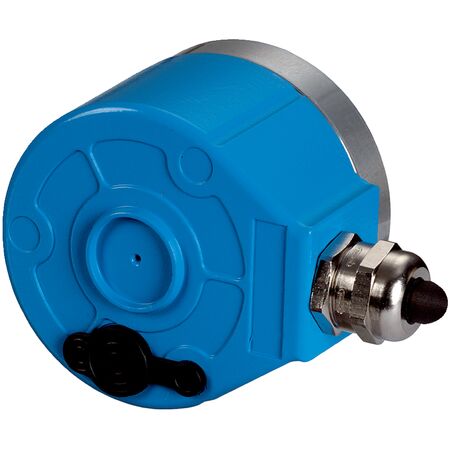

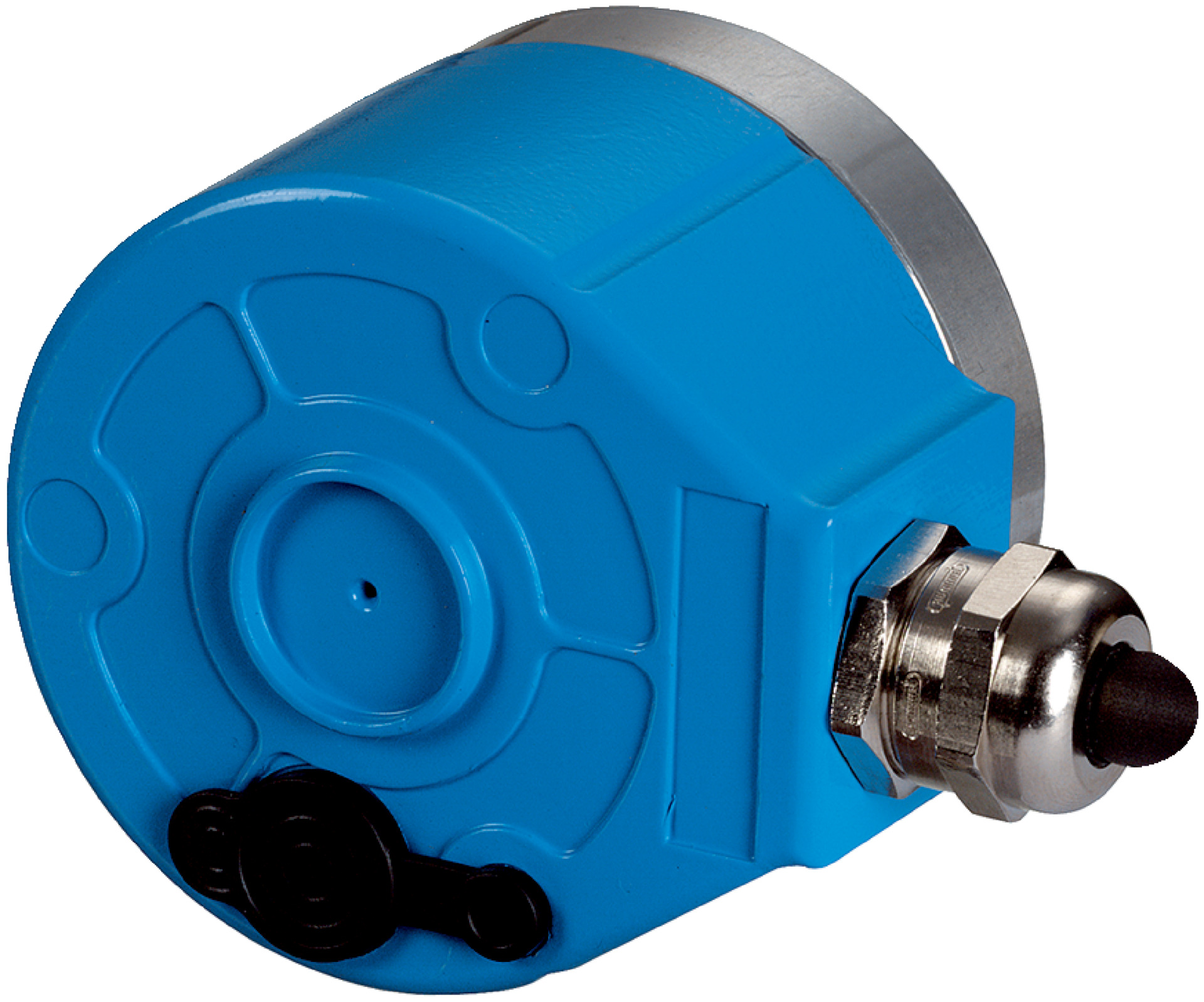

Absolute Encoder ARS60-H4K00232 | 232 Steps/Rev | IP66 Rated | Robust Aluminum Housing | by SICK
The Absolute Encoder ARS60-H4K00232 offers high precision with 232 steps per revolution, making it ideal for industrial automation and robotics applications. Its robust aluminum die cast housing ensures durability, while the IP66 rating provides excellent protection against dust and water. With a wide operating temperature range from -20°C to +85°C, this encoder is built for reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ARS60-H4K00232 | 232 Steps/Rev | IP66 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1031670
Alternatively Known As: Absolute rotary encoder, position encoder, industrial encoder, shaft encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Max resolution: 232 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Measured value backlash: 0.005°
- Response threshold: 0.003°
- Connection type: Cable, 22-wire, radial, 1.5 m
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Switching level of control inputs: Logic H = 0.7 x US, Logic L = 0 to 0.3 x US
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Housing material: Aluminum die cast
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Moment of inertia of rotor: 54 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms (EN 60068-2-27)
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 232 steps per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP66 rated enclosure for dust and water protection
- Wide operating temperature range from -20°C to +85°C
- Low start-up and operating torque
- High resistance to shocks and vibrations
- Cable connection with 22 wires, 1.5 m length
- Fast initialization time of 80 ms
- Binary code type with adjustable code sequence parameter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Position and speed measurement in machinery
- Safety-related monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-H4K00232 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
