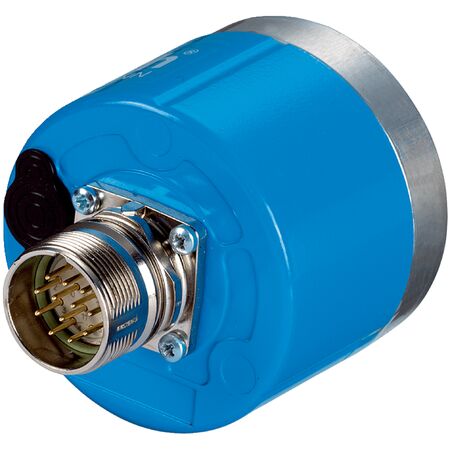

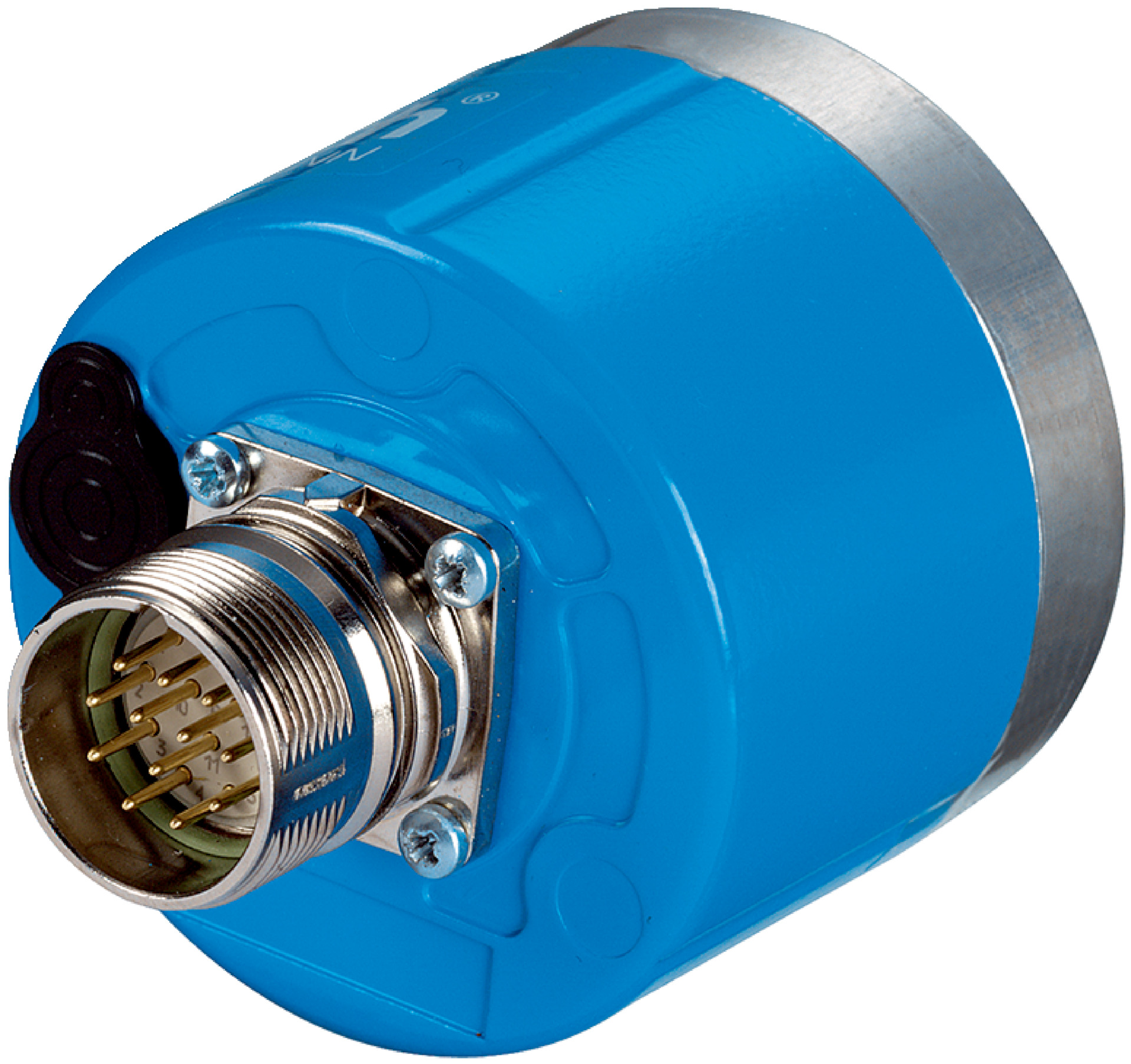

Absolute Encoder ARS60-J1B00360 | 360 Steps/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
The Absolute Encoder ARS60-J1B00360 offers high precision with 360 steps per revolution, making it ideal for industrial automation and control systems. Designed for reliability, it features a robust aluminum die-cast housing with an IP65 rating, ensuring durability in harsh environments. With a fast initialization time of 80 ms and a wide operating temperature range from -20°C to +85°C, this encoder is perfect for robotics and safety-related motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder ARS60-J1B00360 | 360 Steps/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1213261
Alternatively Known As: Absolute rotary encoder, position encoder, shaft encoder, industrial encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Max resolution: 360 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: BCD
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Supply voltage: 10 to 32 V
- Operating current: Typical 90 mA
- Start up torque: Typical 0.25 Ncm
- Operating torque: Typical 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 360 steps per revolution
- Solid shaft with servo flange and 6 mm diameter
- Robust aluminum die-cast housing with IP65 rating
- Low start-up torque of 0.25 Ncm and operating torque of 0.2 Ncm
- High reliability with MTTFD of 300 years
- Fast initialization time of 80 ms
- Parallel data world communication interface with BCD code
- Wide operating temperature range from -20°C to +85°C
- Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Safety-related motion control applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with 10 to 32 V supply voltage
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ARS60-J1B00360 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
