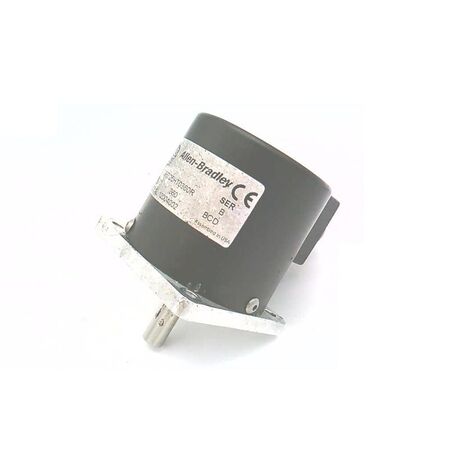

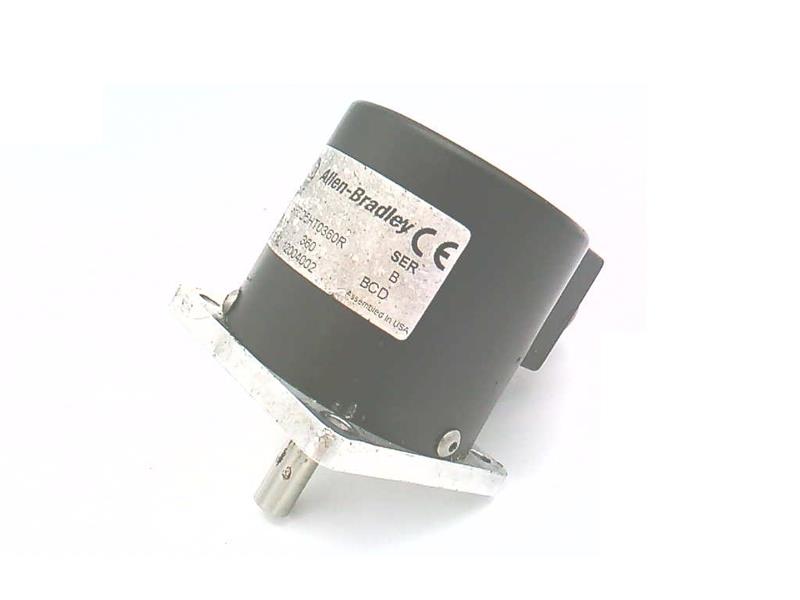

Product Name/Title: Allen-Bradley 845GF3D5HT0360R Absolute Encoder
Brand: Allen-Bradley
SKU: 845GF3D5HT0360R
Alternatively Known As: Absolute rotary encoder, binary coded decimal encoder, 5VDC absolute encoder
Technical Specifications
- Type: Absolute encoder
- Output: Binary coded decimal
- Voltage: 5VDC +/-5%
- Signal: High true, 5VDC TTL NPN
- Resolution: 9 or 10 bit (0-359 degrees)
- Mounting: Square flange, size 25
- Connector: Radial 19-pin
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- Absolute encoder with binary coded decimal output
- Square flange design, size 25
- Radial 19-pin connector
- Operates at 5VDC +/-5%
- High true output
- 9 or 10 bit resolution covering 0-359 degrees
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery positioning
- Precision measurement in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves machine efficiency and reduces waste through precise position feedback
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
Available for immediate purchase, ideal for industrial automation and precision control applications.
