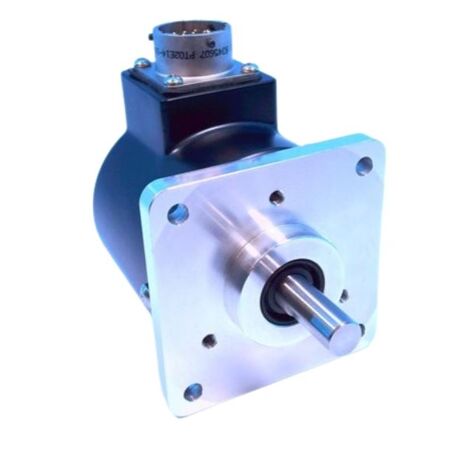

Absolute Encoder Allen-Bradley 845GF3GAHP1024R | Gray Code Output | 10-Bit Resolution | Square Flange Mounting | by Allen-Bradley
The Absolute Encoder Allen-Bradley 845GF3GAHP1024R features gray code output and a 10-bit resolution, making it ideal for industrial automation and precise position feedback applications. With a square flange mounting and radial 19-pin connector, this encoder is built for reliable performance in robotics and manufacturing processes, ensuring accurate signal output and efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Absolute encoder
- Code: Gray code
- Resolution: 10-bit (0-1023)
- Mounting: Square flange
- Connector: Radial 19-pin
- Operating voltage: 10-30 VDC
- Signal output: High true, 10-30 VDC push-pull
- Dimensions (H x L x W): 25mm x 60mm x 25mm
- Weight: 0.3 kg
Key Features
- Absolute encoder with gray code output
- Square flange mounting
- Radial 19-pin connector
- High true signal output
- Operating voltage: 10-30 VDC
- 10-bit resolution (0-1023)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and integration with control systems.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Manufacturing process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Provides precise position feedback reducing machine errors and waste
- Supports efficient automation leading to energy savings
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 845GF3GAHP1024R Absolute Encoder is available for immediate purchase, ideal for industrial automation and precise position feedback applications.
