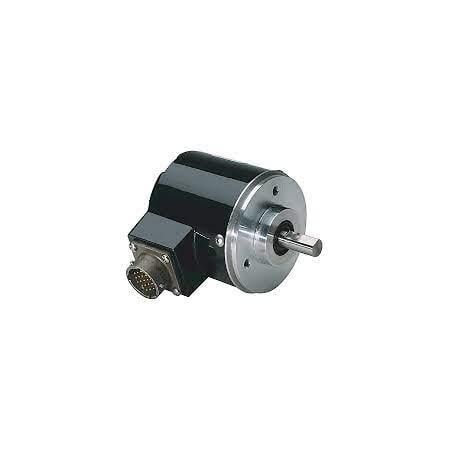

Product Name/Title: Allen-Bradley 845GF3G8HC1024A Absolute Encoder Size 25
Brand: Allen-Bradley
SKU: 845GF3G8HC1024A
Alternatively Known As: Absolute rotary encoder, Gray code encoder, 10-bit position encoder
Technical Specifications
- Type: Absolute encoder
- Output code: Gray code
- Supply voltage: 8-24VDC
- Output type: NPN open collector
- Maximum voltage: 24VDC
- Resolution: 10-bit (0-1023)
- Connector: Axial 19-pin
- Mounting: Square flange
- Size: 25mm
- Dimensions (H x L x W): 25mm x 60mm x 25mm
- Weight: 0.3 kg
Key Features
- Absolute encoder with gray code output
- Square flange mounting
- Operating voltage: 8-24VDC
- NPN open collector output
- 10-bit resolution (0-1023)
- Axial 19-pin connector
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and integration with control systems.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Manufacturing process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves machine efficiency by providing accurate position feedback, reducing waste and energy consumption.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 845GF3G8HC1024A Absolute Encoder is available for immediate purchase, ideal for industrial automation and machinery position feedback applications.
