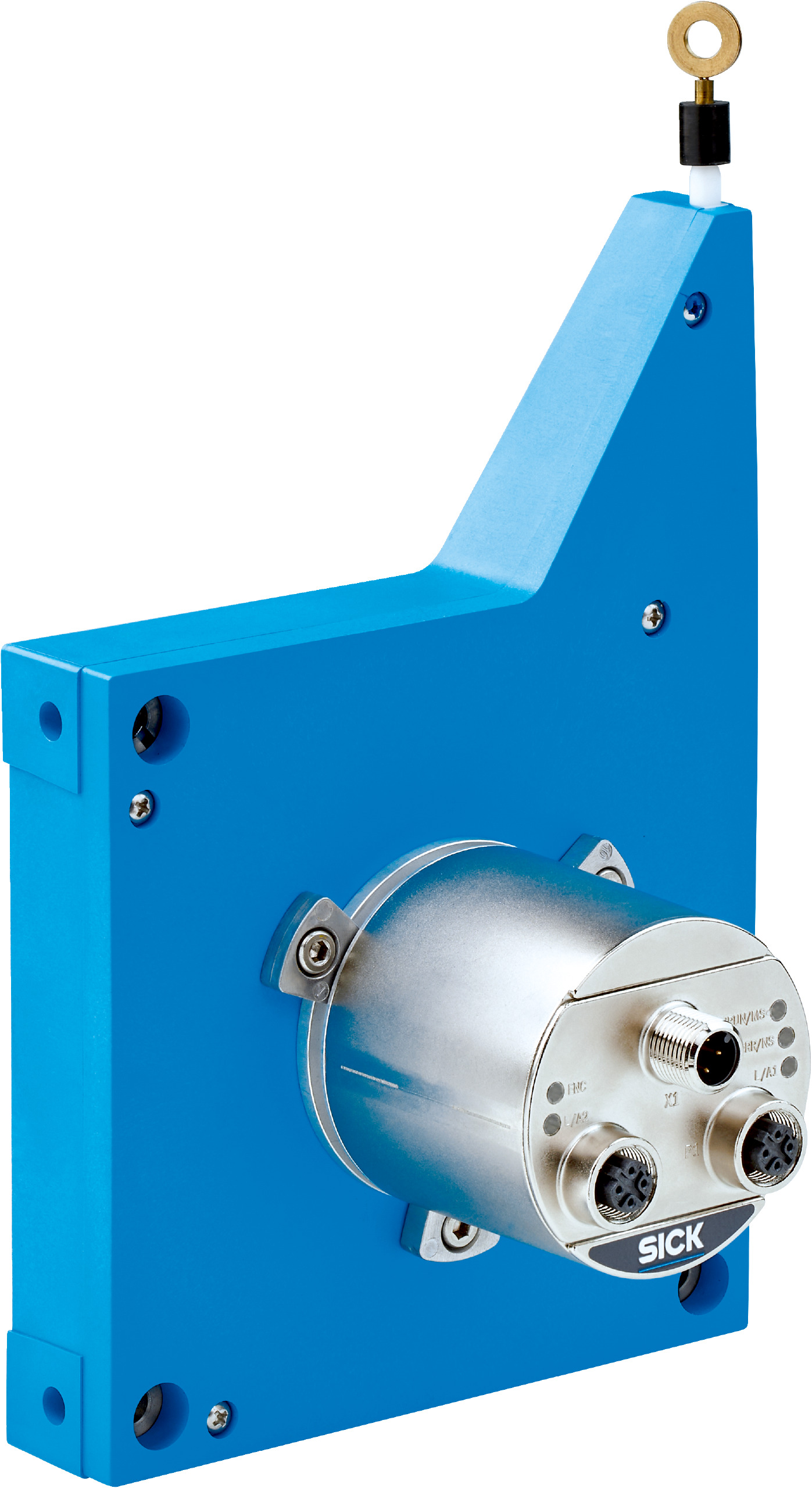

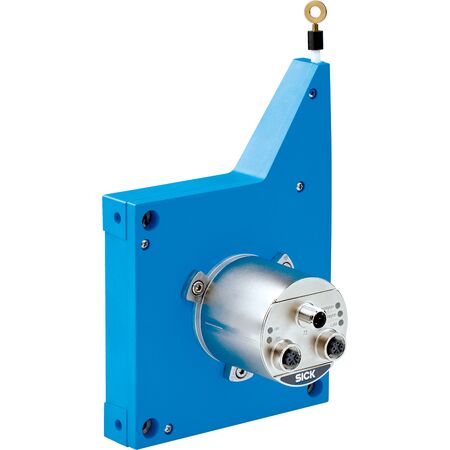

Absolute Encoder PROFINET BCG13-N1BM0577 | 0.001 mm Resolution | 5 m Measurement Range | IP50 Rated | by SICK
The Absolute Encoder PROFINET BCG13-N1BM0577 offers exceptional precision with a resolution of 0.001 mm and a measurement range of up to 5 meters. Designed for industrial automation, this encoder ensures reliable position measurement with repeatability of ≤ 0.2 mm. Its robust construction and IP50 enclosure make it ideal for demanding environments, while the low power consumption enhances energy efficiency in your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.001 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: PROFINET
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Enclosure rating: IP50 (mechanic IP65)
- Operating temperature: -30 °C to +70 °C
- MTTFD: 165 years (EN ISO 13849-1)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.3 kg
Key Features
- Absolute encoder with high resolution of 0.001 mm
- Measurement range up to 5 meters
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFINET communication interface
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 4.5 N and 7 N
- Operating temperature range from -30 °C to +70 °C
- IP50 enclosure rating with mounted mechanic rated at IP65
- Low power consumption ≤ 3 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation equipment and PROFINET communication standards to ensure proper setup and safety compliance.
Applications
- Industrial automation requiring precise position measurement
- Machine tool positioning and control
- Robotics and conveyor systems
- Safety-related monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG13-N1BM0577 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position measurement.
