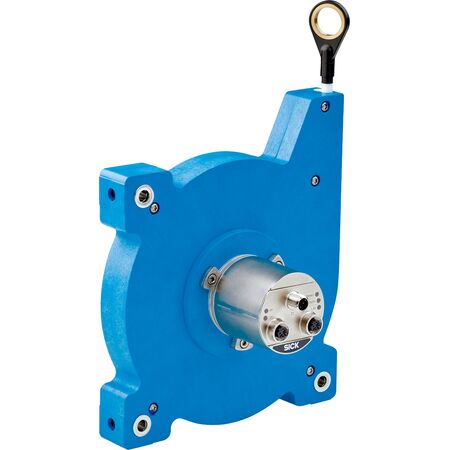

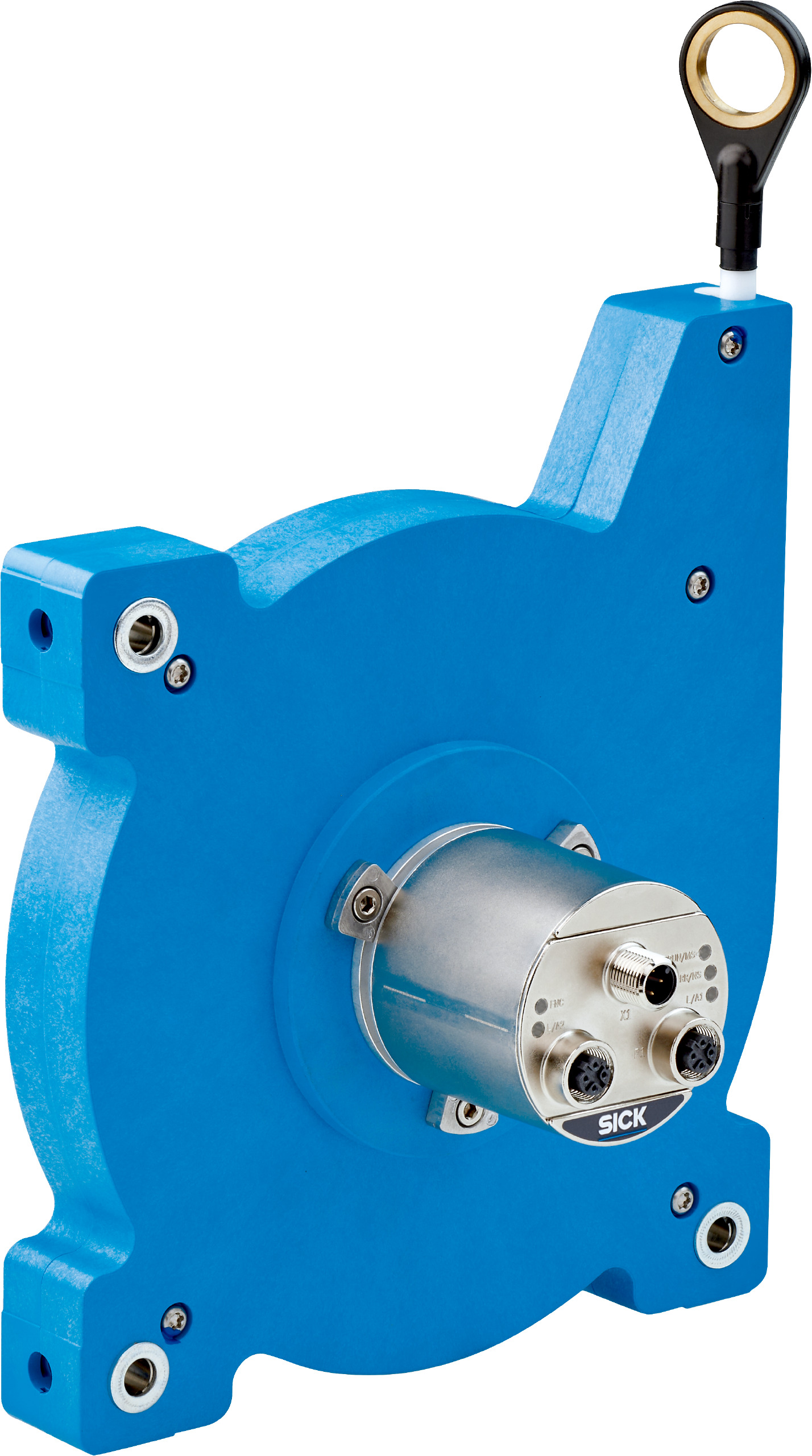

Absolute Encoder PROFINET | High Measurement Range | ≤ 0.2 mm Repeatability | IP50 Enclosure | by SICK
The Absolute Encoder PROFINET is designed for industrial automation, offering a high measurement range of up to 10 meters and a repeatability of ≤ 0.2 mm. Ideal for applications requiring precise position measurement, this encoder features a highly flexible stainless steel measuring wire and operates efficiently in temperatures from –30 °C to +70 °C. With an IP50 enclosure rating, it ensures reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: PROFINET
- Connection type: Male connector 1x M12 4-pin axial, Female connector 2x M12 4-pin axial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 3 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel 1.4401 V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Length of wire pulled out per revolution: 555 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Mounted encoder model: ANM58 PROFINET
- Enclosure rating: IP50 (mechanic IP65)
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 2.4 kg
Key Features
- Absolute encoder with PROFINET communication interface
- High measurement range up to 10 meters
- Repeatability of ≤ 0.2 mm and linearity of ≤ ± 2 mm
- Highly flexible stainless steel measuring wire
- Spring return force between 9 N and 12 N
- Operating temperature range from –30 °C to +70 °C
- IP50 enclosure rating with IP65 for mounted mechanic
- Power consumption ≤ 3 W without load
- Programmable and configurable for versatile use
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial automation and safety standards to ensure proper configuration and compliance.
Applications
- Industrial automation requiring precise position measurement
- Safety-related applications with high reliability demands
- Machine control systems with PROFINET communication
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG19-N1BM1077 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position measurement.
