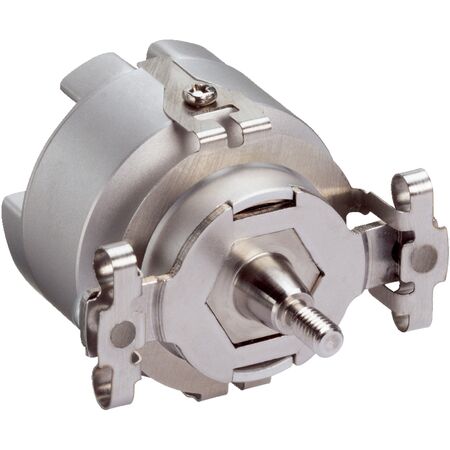

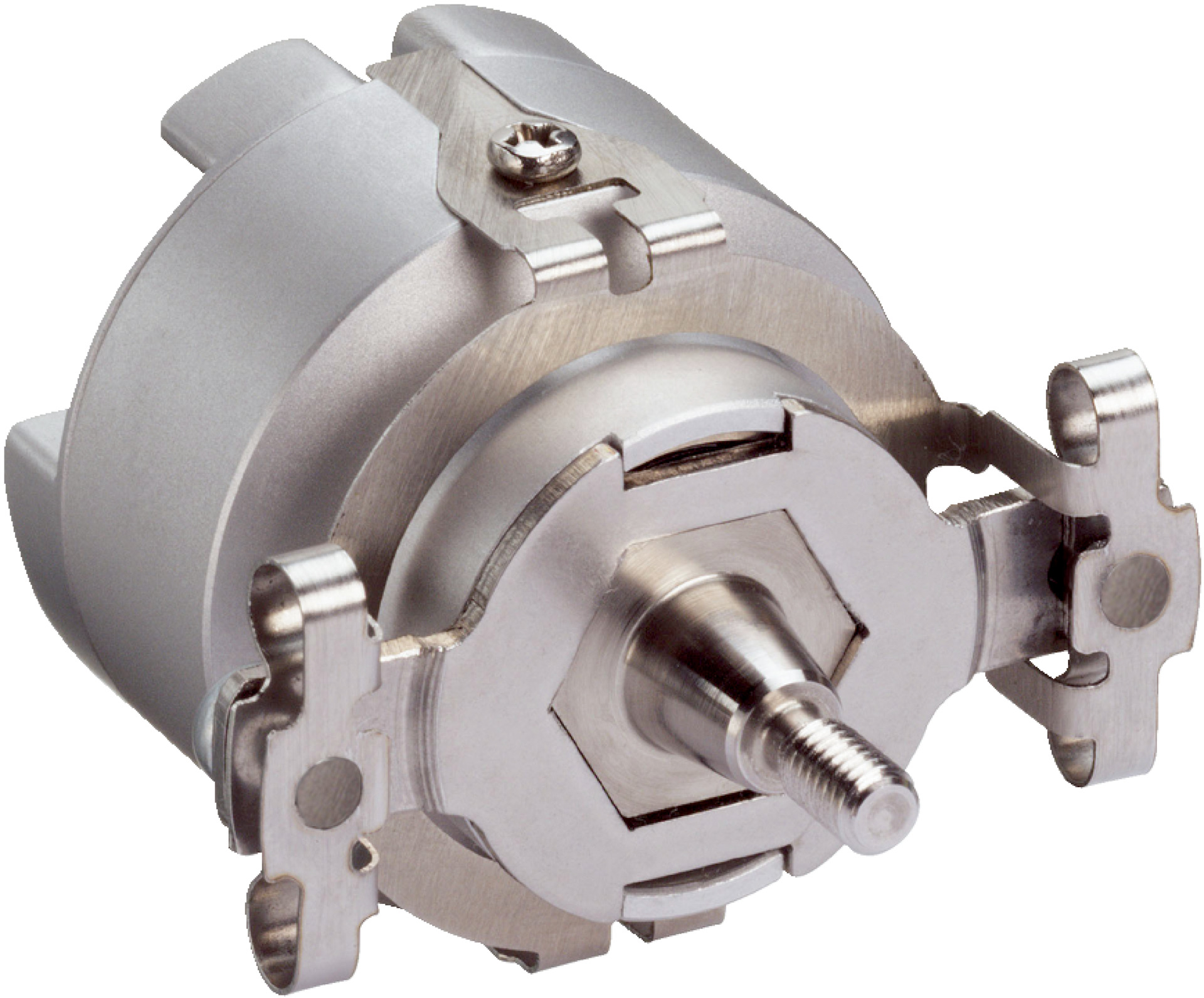

Absolute Encoder SKS36-HFA00S08 | High Accuracy ±120″ | HIPERFACE Interface | IP50 Rated | by SICK
The Absolute Encoder SKS36-HFA00S08 is designed for precise motor position feedback in industrial automation and robotics. With a high accuracy of ±120″ and an operating speed of up to 12,000 min⁻¹, it ensures reliable performance. Its robust design and IP50 enclosure make it ideal for demanding environments, while the HIPERFACE interface allows for seamless communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sine/cosine periods per revolution: 128
- Total number of steps: 4,096
- Measuring step: 2.5″ with 12-bit interpolation
- Integral non-linearity: ±80″
- Differential non-linearity: ±40″
- Available memory area: 1,792 Byte
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 60 mA
- Output frequency for sine/cosine signals: ≤ 65 kHz
- Moment of inertia of rotor: 4.5 gcm²
- Angular acceleration: ≤ 500,000 rad/s²
- Permissible static movement: ±0.1 mm radial, -0.4 mm to +0.2 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Operating temperature range: –20 °C to +110 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 50 g, 10 Hz to 2,000 Hz
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- Specific stator coupling for motors with 40 mm edge dimension
- High system accuracy of ±120″
- Operating speed up to 12,000 min⁻¹ with reliable absolute position output
- Binary code sequence increasing with clockwise shaft rotation
- Communication via HIPERFACE® interface
- Tapered shaft with spring mounting plate stator coupling
- Operating temperature range from –20 °C to +110 °C
- Enclosure rating IP50 with mating plug inserted
- Low operating torque of 0.2 Ncm and start-up torque of +0.3 Ncm
- Long ball bearing life of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise motor position feedback
- Robotics requiring high accuracy angular position sensing
- Machine tools and manufacturing equipment
- Motors with 40 mm edge dimension requiring specific stator coupling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Low power consumption with 60 mA current draw
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SKS36-HFA00S08 Absolute Encoder is available for immediate purchase, ideal for industrial automation and motor feedback applications.
