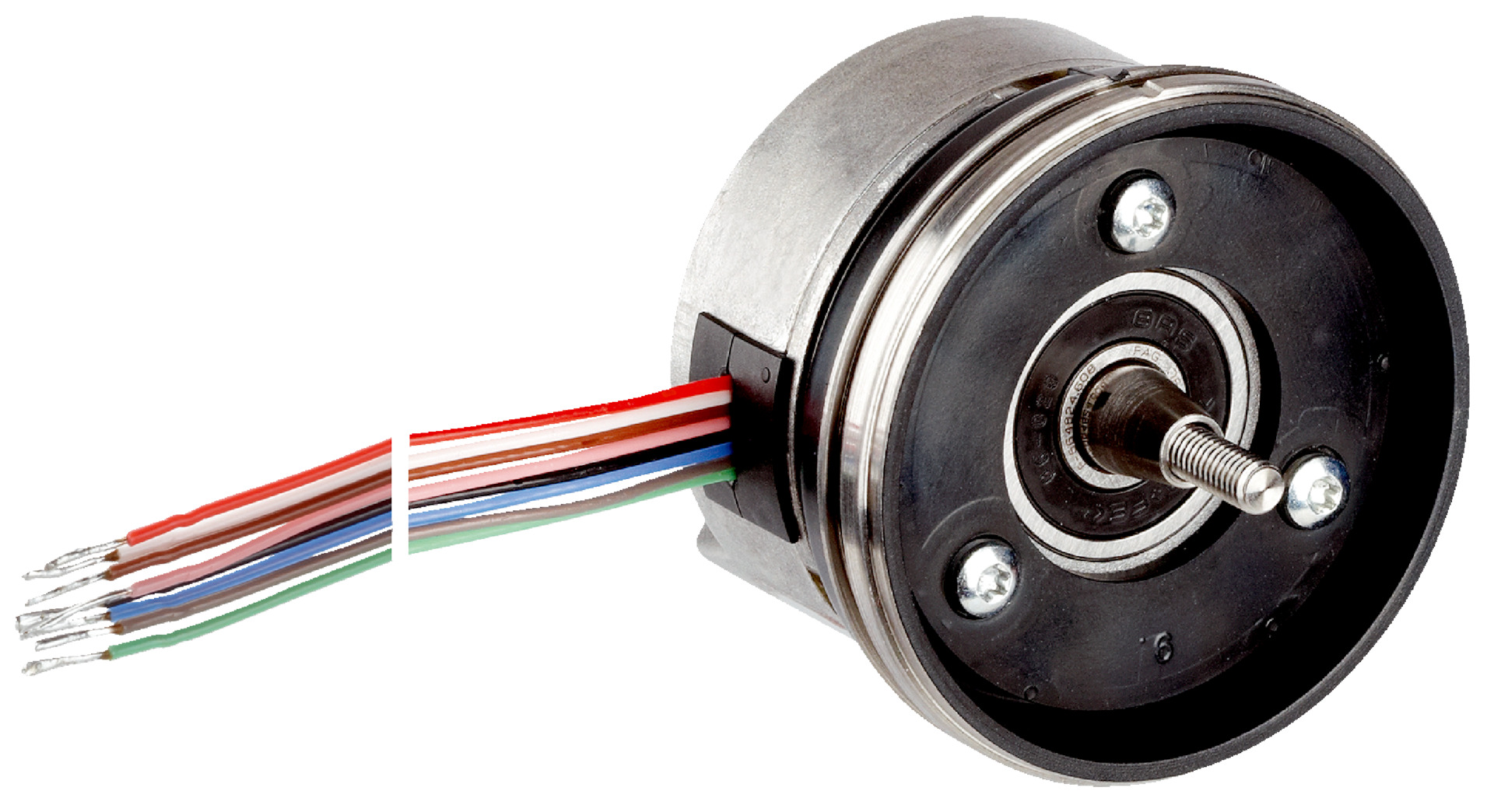

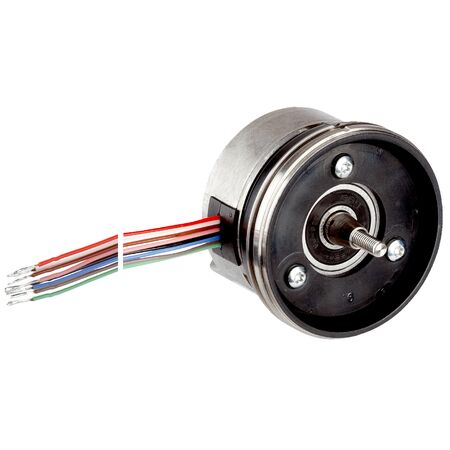

Absolute Encoder SRM50S-HGV0-K22 | SIL 2 Safety Level | 1,024 Sine/Cosine Periods | HIPERFACE Communication | by SICK
The Absolute Encoder SRM50S-HGV0-K22 is designed for industrial automation, featuring a SIL 2 safety integrity level and high system accuracy of ±52″. With an operating temperature range of -30 °C to +115 °C and a robust design, it's perfect for safety-critical applications and high-speed machinery, ensuring precise position measurement in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder SRM50S-HGV0-K22 | SIL 2 Safety Level | 1,024 Sine/Cosine Periods | HIPERFACE Communication | by SICK
Brand: SICK
SKU: 1051804
Alternatively Known As: Absolute Encoder SRM50S, HIPERFACE Encoder, Safety Encoder SIL2, SICK Rotary Encoder
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Category: 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFH: 1.0 x 10⁻⁸ per hour
- Mission time: 20 years
- Sine/cosine periods per revolution: 1,024
- Absolute revolutions: 4,096
- Total steps: 134,217,728
- Measuring step: 0.3″
- Integral non-linearity: ±45″
- Differential non-linearity: ±7″
- Operating speed: ≤ 6,000 min⁻¹ for absolute position, ≤ 12,000 min⁻¹ max
- Memory area: 1,792 Byte
- System accuracy: ±52″
- Code type: Binary
- Communication interface: HIPERFACE®
- Connection: 8-wire cable, 2 m radial
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 80 mA
- Output frequency: ≤ 200 kHz
- Shaft: Tapered
- Moment of inertia: 10 gcm²
- Operating torque: 0.2 Ncm
- Start-up torque: +0.4 Ncm
- Permissible shaft movement: radial ±0.6 mm, axial ±0.95 mm
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature: -30 °C to +115 °C
- Storage temperature: -40 °C to +125 °C
- Humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP40
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and Performance Level PL d (EN ISO 13849)
- Absolute encoder with 1,024 sine/cosine periods per revolution
- Binary code output with HIPERFACE® communication interface
- Operating temperature range from -30 °C to +115 °C
- High system accuracy of ±52″ and measuring step of 0.3″
- Robust mechanical design with tapered shaft and resolver support flange
- Operating speed up to 12,000 min⁻¹ and angular acceleration up to 200,000 rad/s²
- Enclosure rating IP40 with mating plug inserted
- Low operating torque of 0.2 Ncm and start-up torque of +0.4 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring SIL 2 and PL d compliance
- High-speed machinery with operating speeds up to 12,000 min⁻¹
- Environments requiring robust encoders with IP40 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Low power consumption with 80 mA current draw
- Robust design minimizes environmental impact through durability
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK SRM50S-HGV0-K22 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
