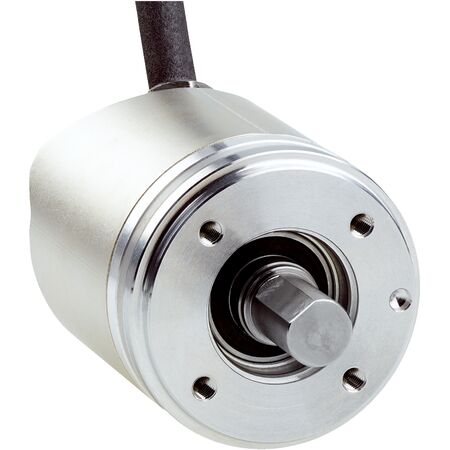

Absolute Encoder SSI AHM36A-S2AM012x12 | 12 Bit Resolution | IP66 & IP67 Rated | by SICK
The Absolute Encoder SSI AHM36A-S2AM012x12 offers high resolution with 4,096 steps per revolution, making it ideal for industrial automation and robotics. With an IP66 and IP67 rated enclosure, it withstands harsh environments while providing reliable position measurement. Designed for safety-critical applications, this encoder features low power consumption and robust construction for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Max resolution: 12 bit x 12 bit (4,096 x 4,096 steps)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Shaft diameter: 10 mm with flat
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: -40 °C to +100 °C
- Enclosure rating: IP66 and IP67
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions
- Solid shaft with servo flange and stainless steel shaft
- Robust housing with zinc material and aluminum flange
- IP66 and IP67 rated enclosure for harsh environments
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- High mechanical durability with bearing lifetime of 3.6 x 10^8 revolutions
- Operating temperature range from -40 °C to +100 °C
- Communication via SSI interface with Gray code
- Configurable code sequence parameter (CW/CCW) via cable
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and configuration.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high resolution and repeatability
- Machine tools and servo drives
- Safety-related applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36A-S2AM012x12 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
