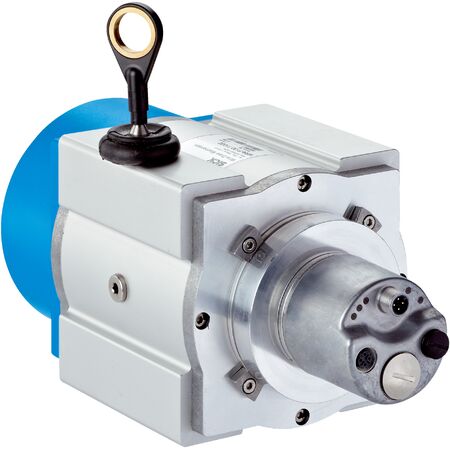

Absolute Encoder Wire Draw Sensor | 0.001 mm Resolution | 10 m Measurement Range | IP64/IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a high resolution of 0.001 mm and a measurement range of up to 10 meters. With an IP64/IP67 rating, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and process control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Resolution: 0.001 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: EtherNet/IP™
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Weight: 3.7 kg
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 10 N to 20 N
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.7 kg
Key Features
- Absolute encoder with high resolution of 0.001 mm
- Measurement range up to 10 meters
- Repeatability ≤ 1.5 mm and linearity ≤ ± 2 mm
- EtherNet/IP™ communication interface with programmable configuration
- Robust aluminum and plastic housing with IP64/IP67 rating
- Spring return force between 10 N and 20 N
- Operating temperature range from -30 °C to +70 °C
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and EtherNet/IP communication protocols to ensure safety and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Process control systems requiring high accuracy
- Harsh environment applications with IP64/IP67 protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W supports energy efficiency
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-I1BM1099 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
