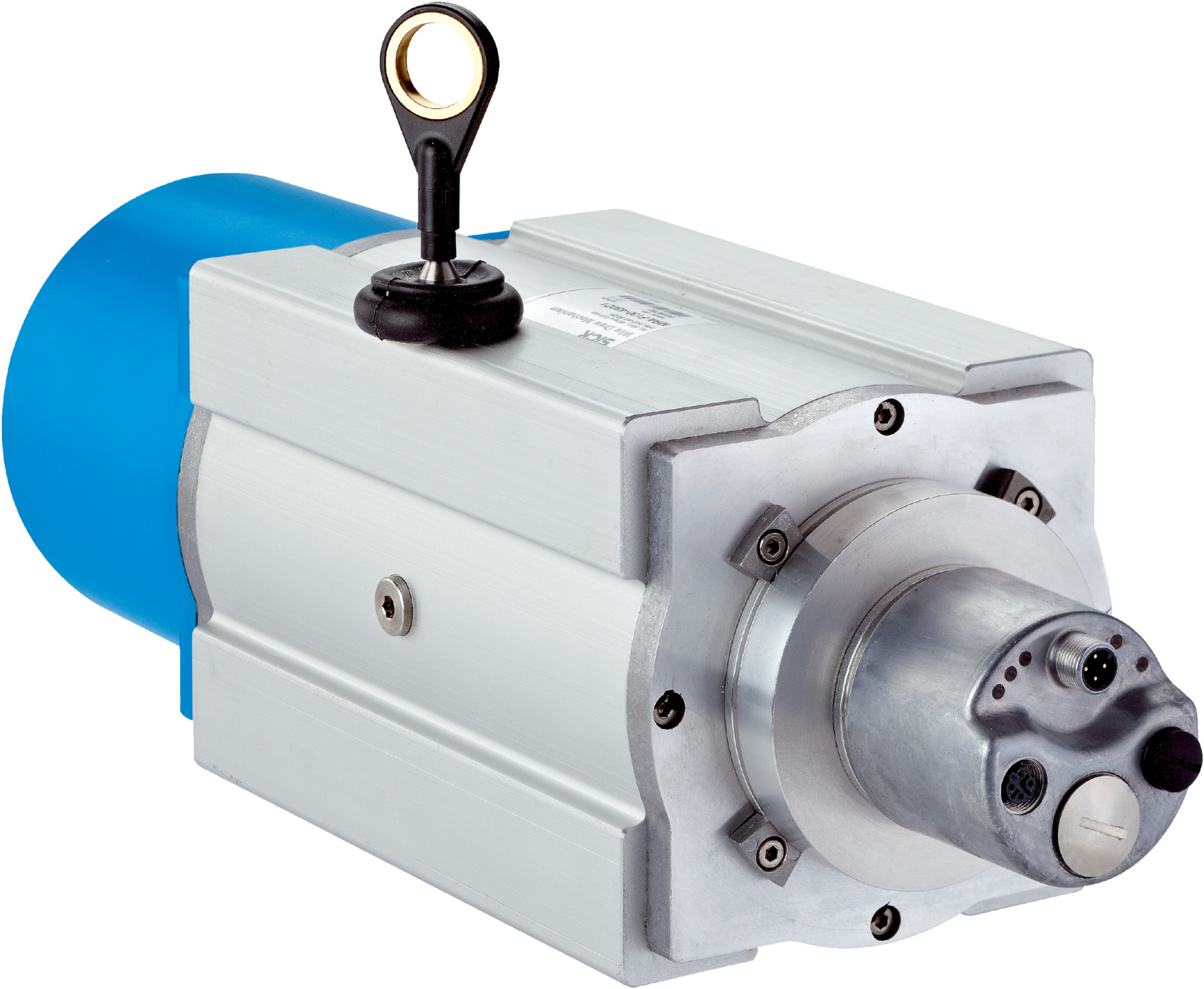

Absolute Encoder Wire Draw Sensor | 0.001 mm Resolution | 30 m Measurement Range | IP64/IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a measurement range of up to 30 m and a high resolution of 0.001 mm. With robust IP64/IP67 protection and a highly flexible stainless steel measuring wire, it ensures reliable performance in safety-related monitoring and process control systems, making it ideal for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 30 m
- Resolution: 0.001 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: EtherNet/IP™
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded 1.4401 stainless steel V4A
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 15 m/s²
- Enclosure rating: IP64 (mechanic), IP67 (encoder)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.4 kg
Key Features
- Absolute encoder with high resolution of 0.001 mm
- Measurement range up to 30 m
- Repeatability and linearity within ±2 mm
- Robust aluminum and plastic housing with IP64/IP67 protection
- EtherNet/IP™ communication interface with programmable configuration
- Highly flexible stainless steel measuring wire
- Long life wire draw mechanism with approximately 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and EtherNet/IP communication protocols to ensure safety and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Process control systems requiring high accuracy wire draw measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤3 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK BTF13-I1BM3099 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
