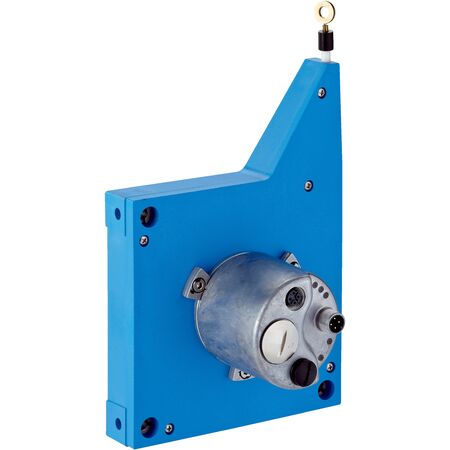

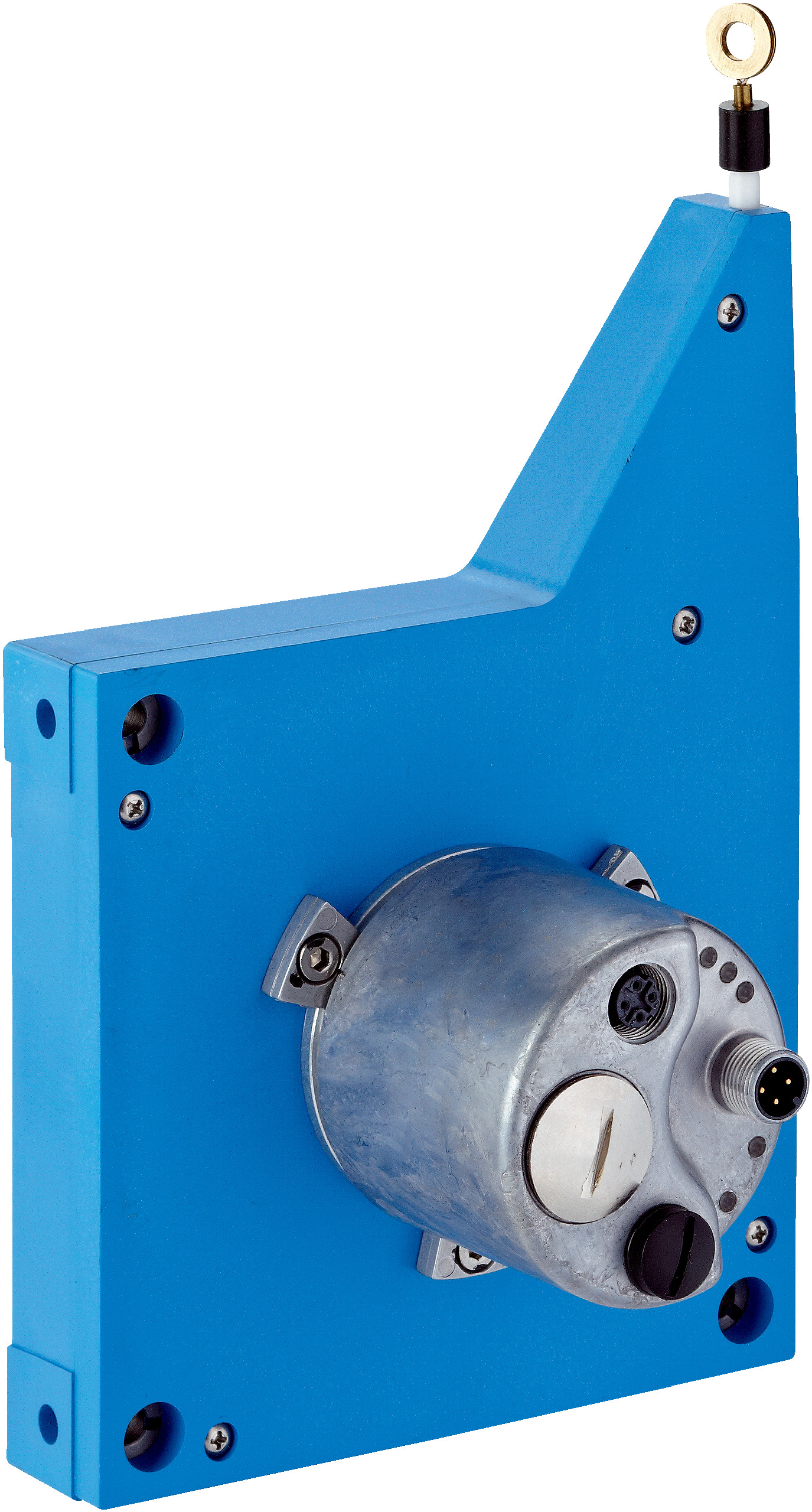

Absolute Encoder Wire Draw Sensor | 0.001 mm Resolution | 5 m Measurement Range | IP50 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a high resolution of 0.001 mm and a measurement range of up to 5 meters. With robust construction and an operating temperature range of -30 °C to +70 °C, this sensor is ideal for safety monitoring and control in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.001 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: EtherNet/IP™
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP67)
- Operating temperature: –30 °C to +70 °C
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 1 kg
Key Features
- Absolute encoder with high resolution of 0.001 mm
- Measurement range up to 5 meters
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Programmable and configurable via EtherNet/IP™ interface
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 4.5 N and 7 N
- Operating temperature range from –30 °C to +70 °C
- IP50 enclosure rating with IP67 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and EtherNet/IP communication protocols to ensure safety and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Measurement and control in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
