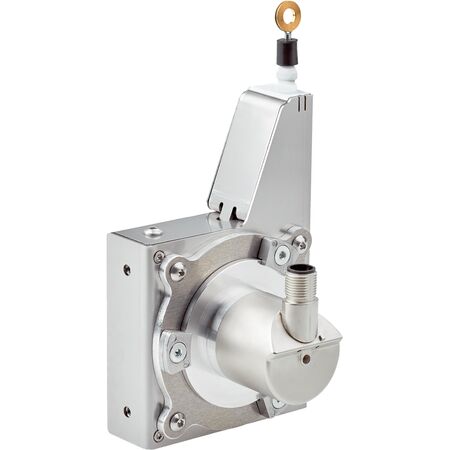

Absolute Encoder Wire Draw Sensor | 0.01 mm Resolution | IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a high resolution of 0.01 mm and repeatability of ≤ 0.3 mm. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety-related applications and machine monitoring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.01 mm
- Repeatability: ≤ 0.3 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 1.2 mm
- Communication interface: SAE J1939
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin
- Spring return force: 8 N to 10 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 4 m/s
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP60 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 80mm x 200mm x 80mm
- Weight: 0.72 kg
Key Features
- Absolute encoder with SAE J1939 communication interface
- High resolution of 0.01 mm with repeatability ≤ 0.3 mm
- Robust stainless steel wire draw mechanism with 3.2 m actual wire length
- Operating temperature range from –30 °C to +70 °C
- IP67 rated encoder enclosure for harsh environments
- Programmable and configurable for flexible integration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper configuration and compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption of ≤ 1.5 W minimizes energy use
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCV08-J1QM03M200 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related applications.
